Tightening torques

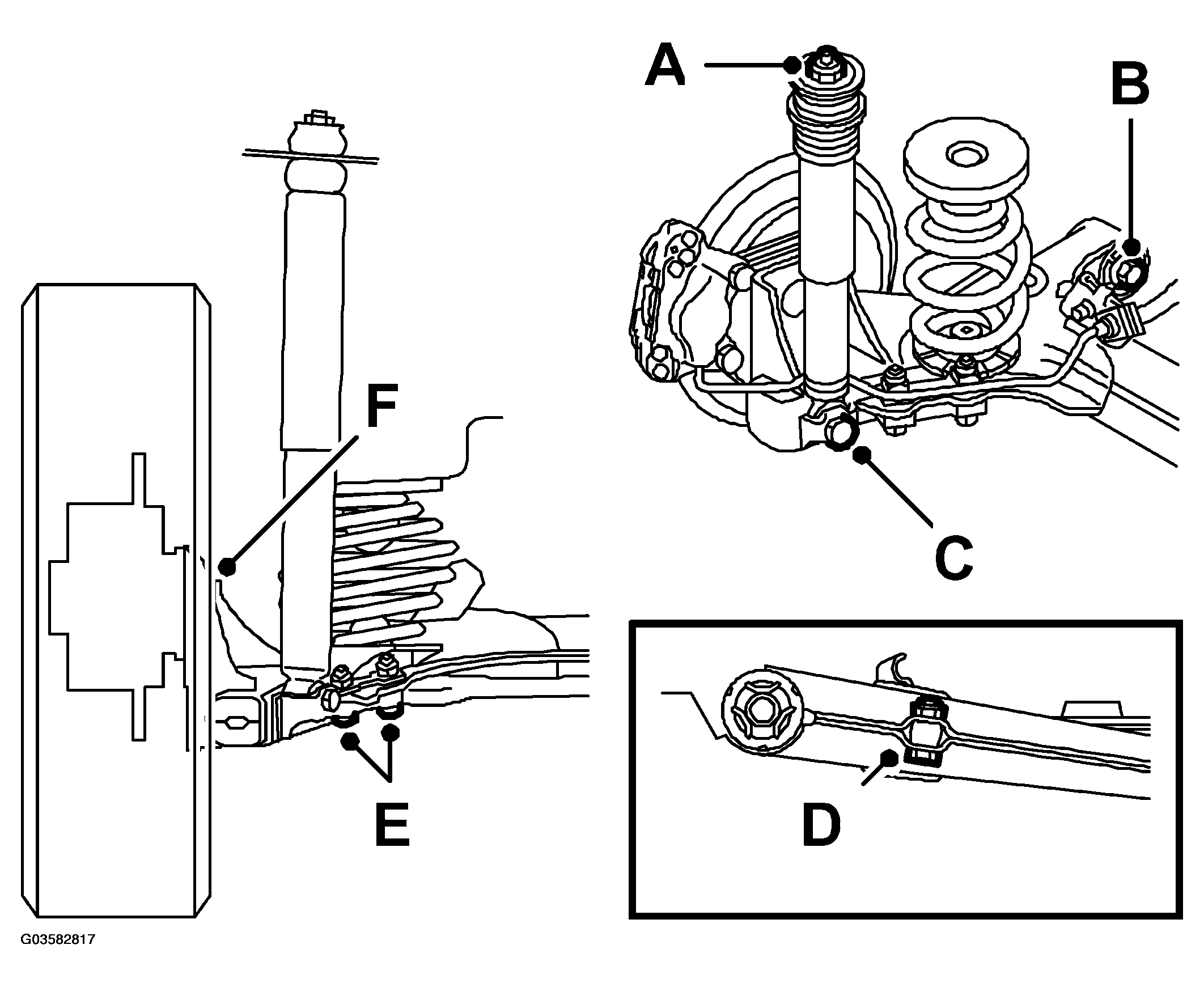

TIGHTENING TORQUES CHART
| Pos. | Designation | Specification |
|---|---|---|
| A | Rear damper top mounting | 20 N.m (15 lbf ft) |
| B | Rear spring link mounting to body (tighten when all four wheels are on the ground) | 75 N.m (55 lbf ft) |
| C | Retaining bolt, damper bottom mounting | 62 N.m (46 lbf ft) |
| D | Inner anti-roll bar mounting | 60 N.m +65° (44 lbf ft +65°) |
| E | Anti-roll bar mounting | 24 N.m (18 lbf ft) |
