Home >> Saab >> 2003 >> 9-3 Arc, Automatic >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Suspension (Early; 9400) >> Adjustment - Replacement >> Replacing the rubber bush in the rear damper >> To remove

To remove

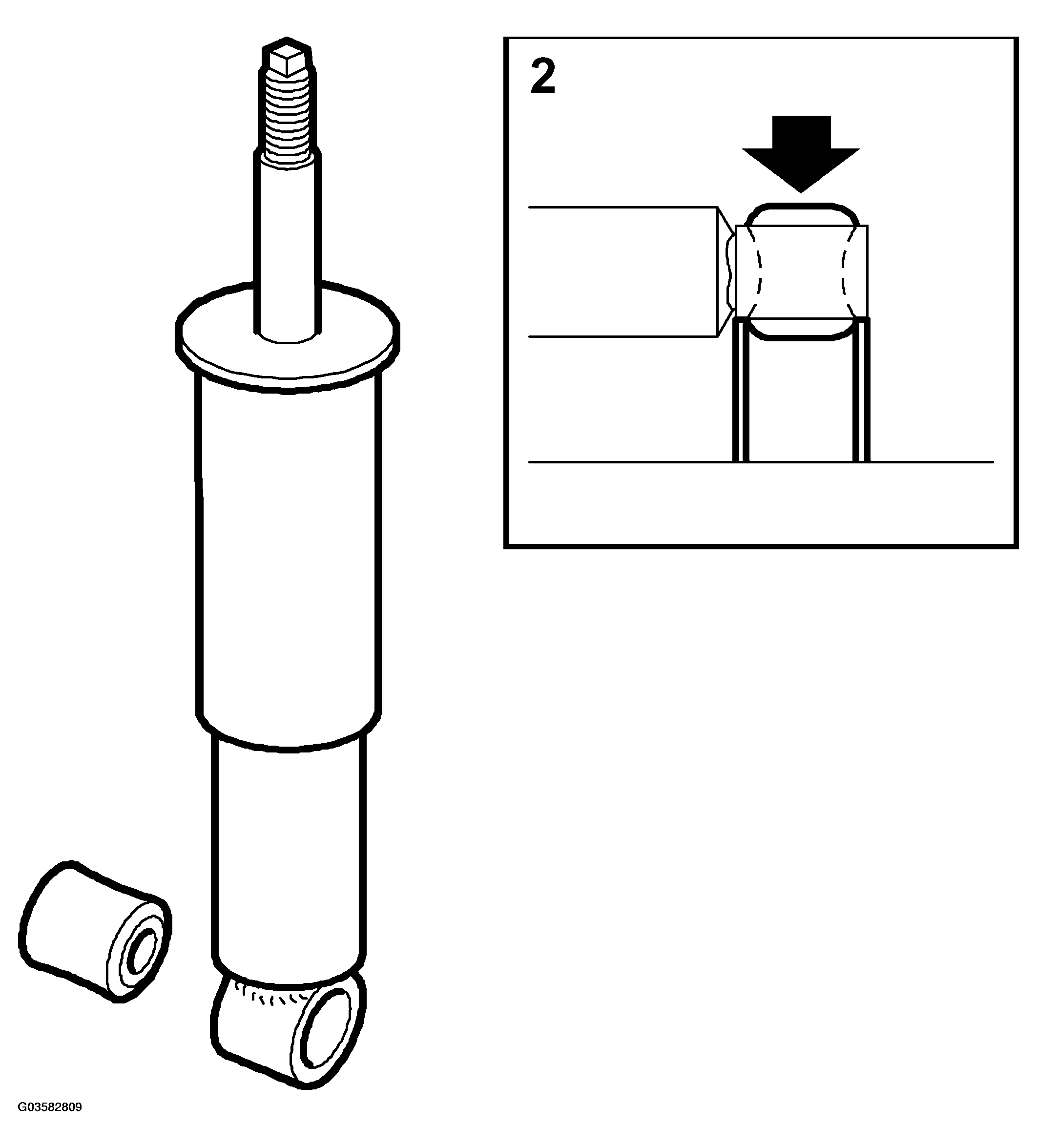

Fig 1: Illustration For Step 2
G03582809Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the damper.
  2. Place the damper, an 18 mm socket and special tool 89 96 720 SLEEVE, REAR DAMPER BUSH  in a press.
  3. Press out the bush.
