To fit

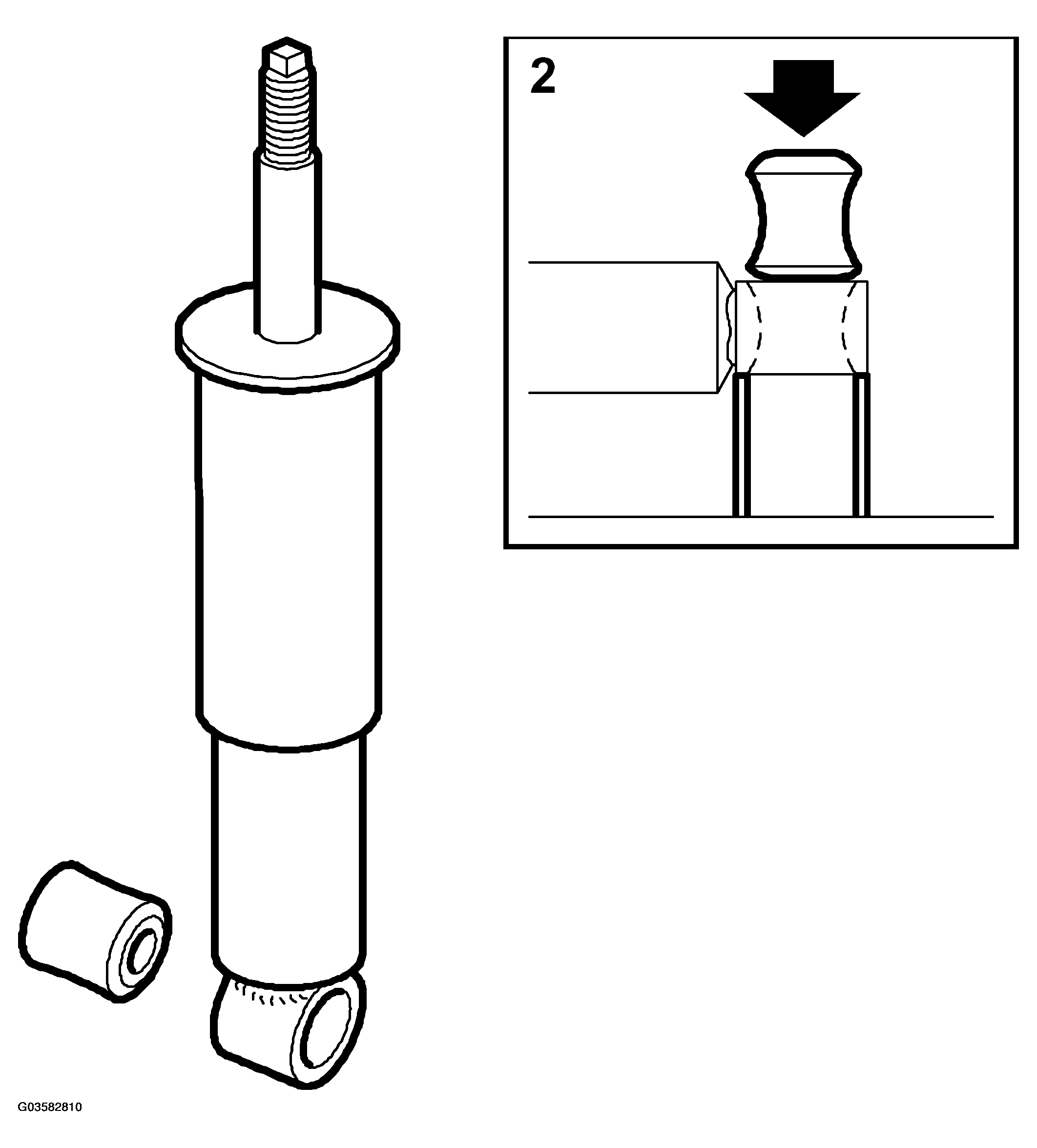

Fig 1: Illustration For Step 2
G03582810Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lubricate the bush and compression tool, if used, with petroleum jelly (Vaseline) or the like.
  2. Press in the compressed bush using 89 96 720 SLEEVE, REAR DAMPER BUSH  for support.
  3. Fit the damper.
