To fit

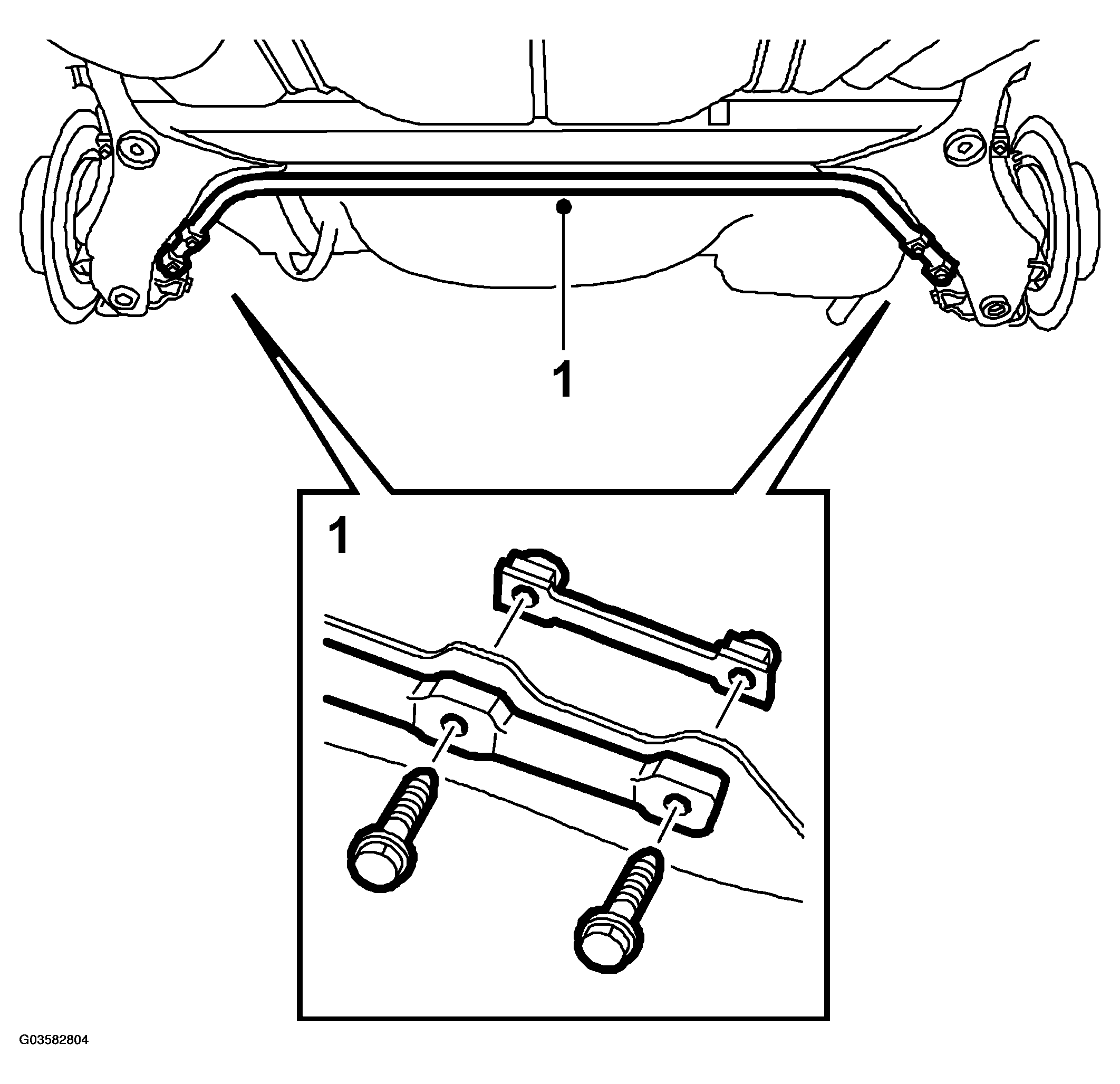

Fig 1: Illustration For Step 1
G03582804Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Position the anti-roll bar on the car and fit all retaining bolts.
  2. Tighten the bolts, using a torque wrench.

    Tightening torque 24 N.m (18 lbf ft)
