To fit

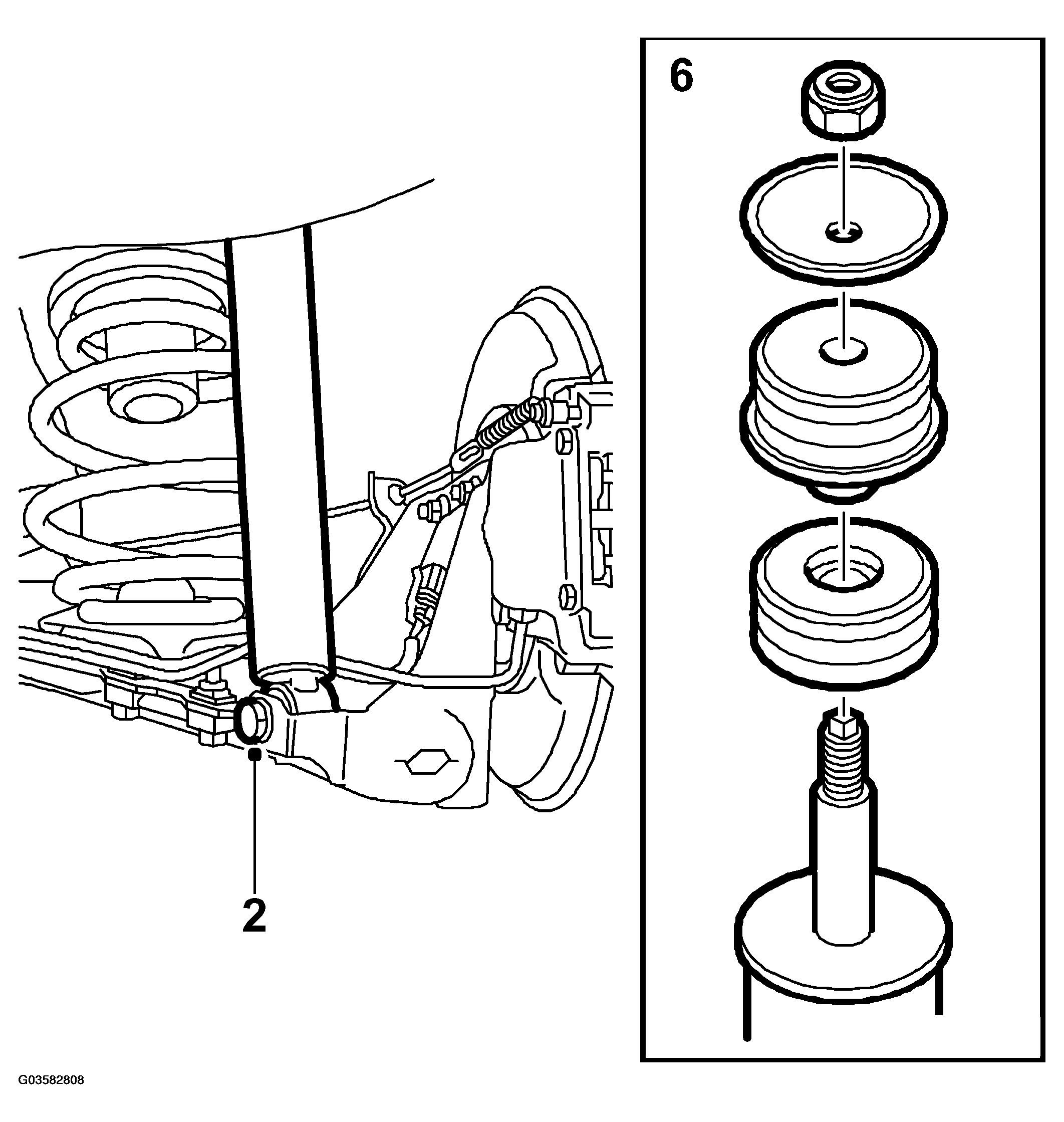

Fig 1: Illustration For Steps 2 & 6
G03582808Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Insert the damper's upper mounting through the hole in the body.
  2. Torque tighten the retaining bolt in the lower damper mounting.

    Tightening torque 62 N.m (46 lbf ft)

  3. Fit the wheel. See WHEEL & TIRES .

    Tightening torque: 110 N.m (81 lbf ft)

  4. Lower the car to the floor.
  5. Fit the bush, washer and nut on the upper mounting.

    Tightening torque 20 N.m (15 lbf ft)

  6. Press the flap in the luggage compartment trim back into place and restore the luggage compartment to its original condition.
