To remove

  1. Raise the car and remove the wheel.
  2. Place a jack under the spring link. Press up at the rear.
  3. Remove the damper's lower retaining bolt.
  4. Lower the spring link and remove the jack.
  5. Insert a pry bar in the damper mounting and carefully lever the spring link downwards. Remove the coil spring.

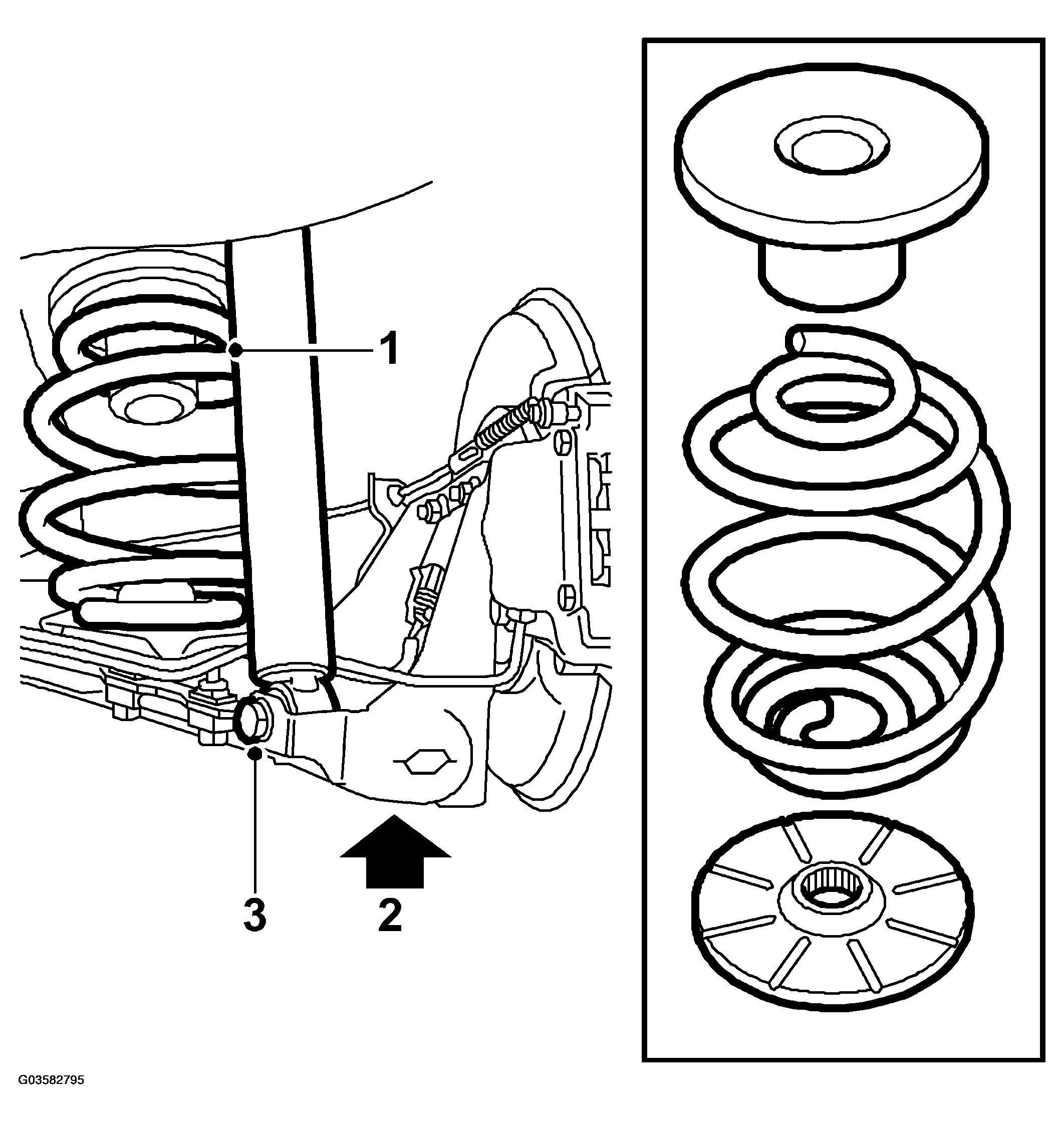

    Fig 1: Illustration For Steps 1-3
    G03582795Courtesy of SAAB-SCANIA OF AMERICA, INC.
