Home >> Saab >> 2003 >> 9-3 Arc, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Horns >> Horn (Late; 9440) >> Component location >> Unit, steering wheel assembly (703) >> K25

Unit, steering wheel assembly (703): K25

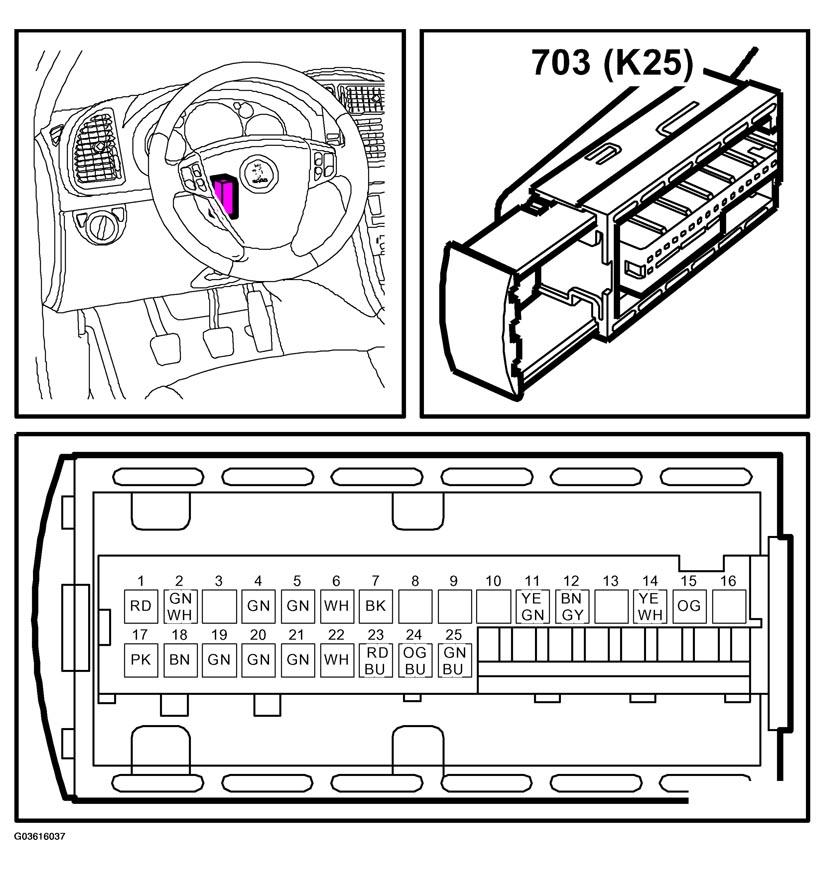

Fig 1: Identifying Steering Wheel Assembly (703) K25 Unit Connector

G03616037

Courtesy of SAAB-SCANIA OF AMERICA, INC.
