Connected components

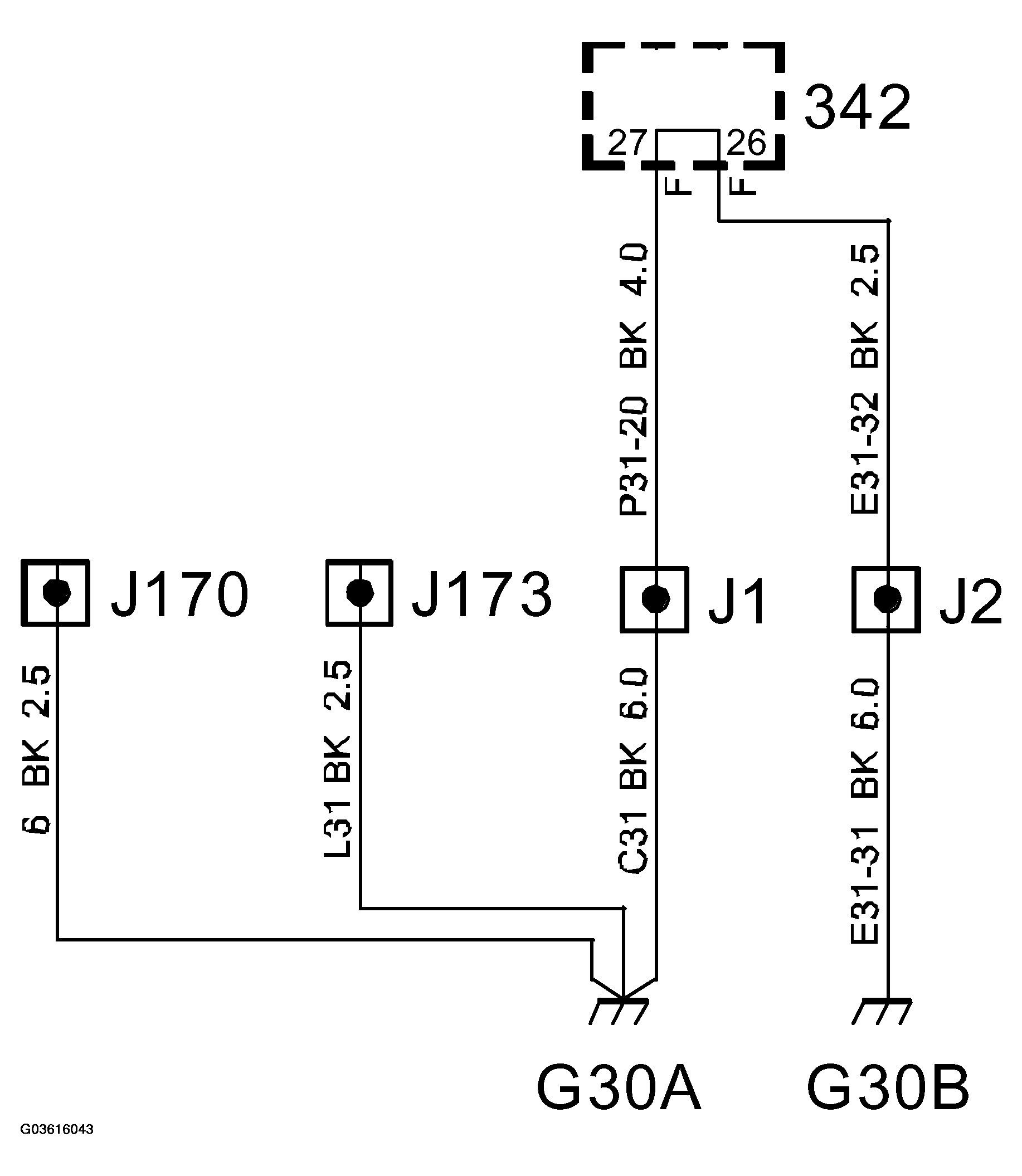

SPECIAL TOOL - GROUNDING POINT G30A
| Via Crimp J1, front harness |
| 40LH |
Left horn |
| 40RH |
Right horn |
| 63b |
Windscreen washer fluid pump motor |
| 195 |
Washer fluid level switch |
| 342 |
Main fuse box, engine bay |
| 663FL |
Left-hand headlamp unit |
| 706 |
Radiator fan relay unit |
Courtesy of SAAB-SCANIA OF AMERICA, INC.
