Fog light switch (88): Connection

DESCRIPTION CHART

Pin No. Signal type Description
1 Ground Grounded when the button is depressed
3 Front fog lights To BCM. Grounded when the button is depressed

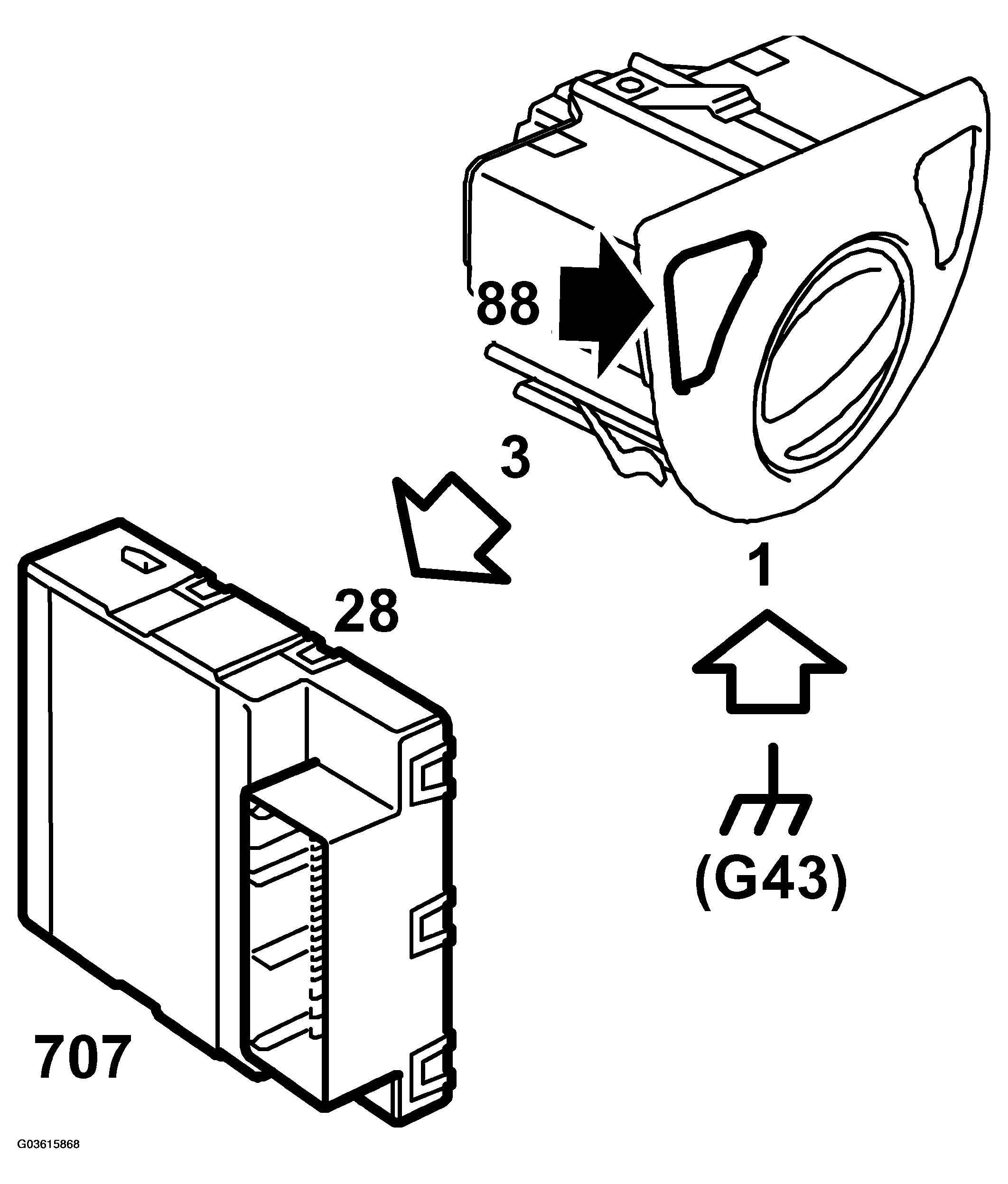

Fig 1: Identifying Main Task Connection
G03615868Courtesy of SAAB-SCANIA OF AMERICA, INC.

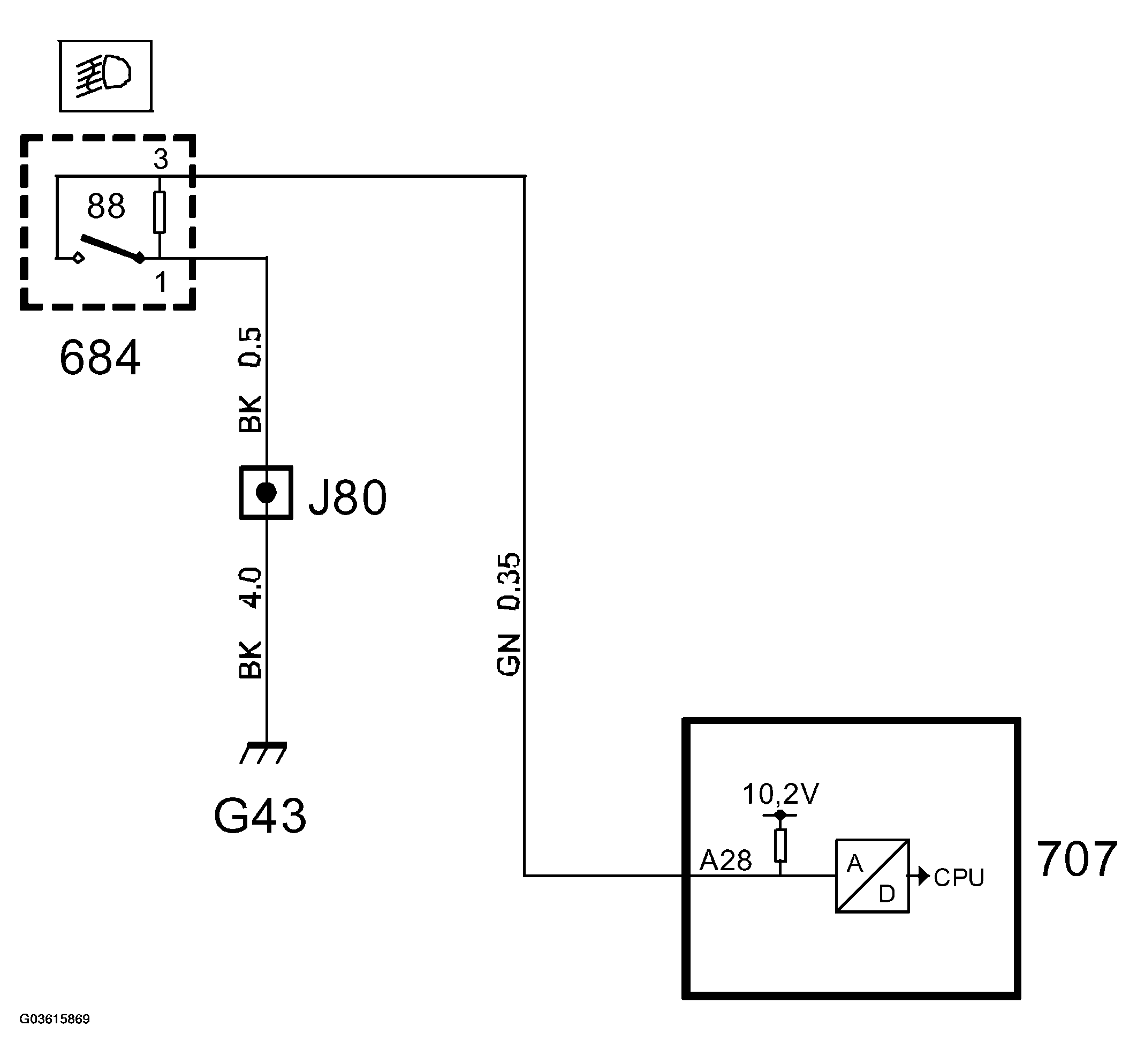

Fig 2: Main Task Connection Circuit Diagram
G03615869Courtesy of SAAB-SCANIA OF AMERICA, INC.
