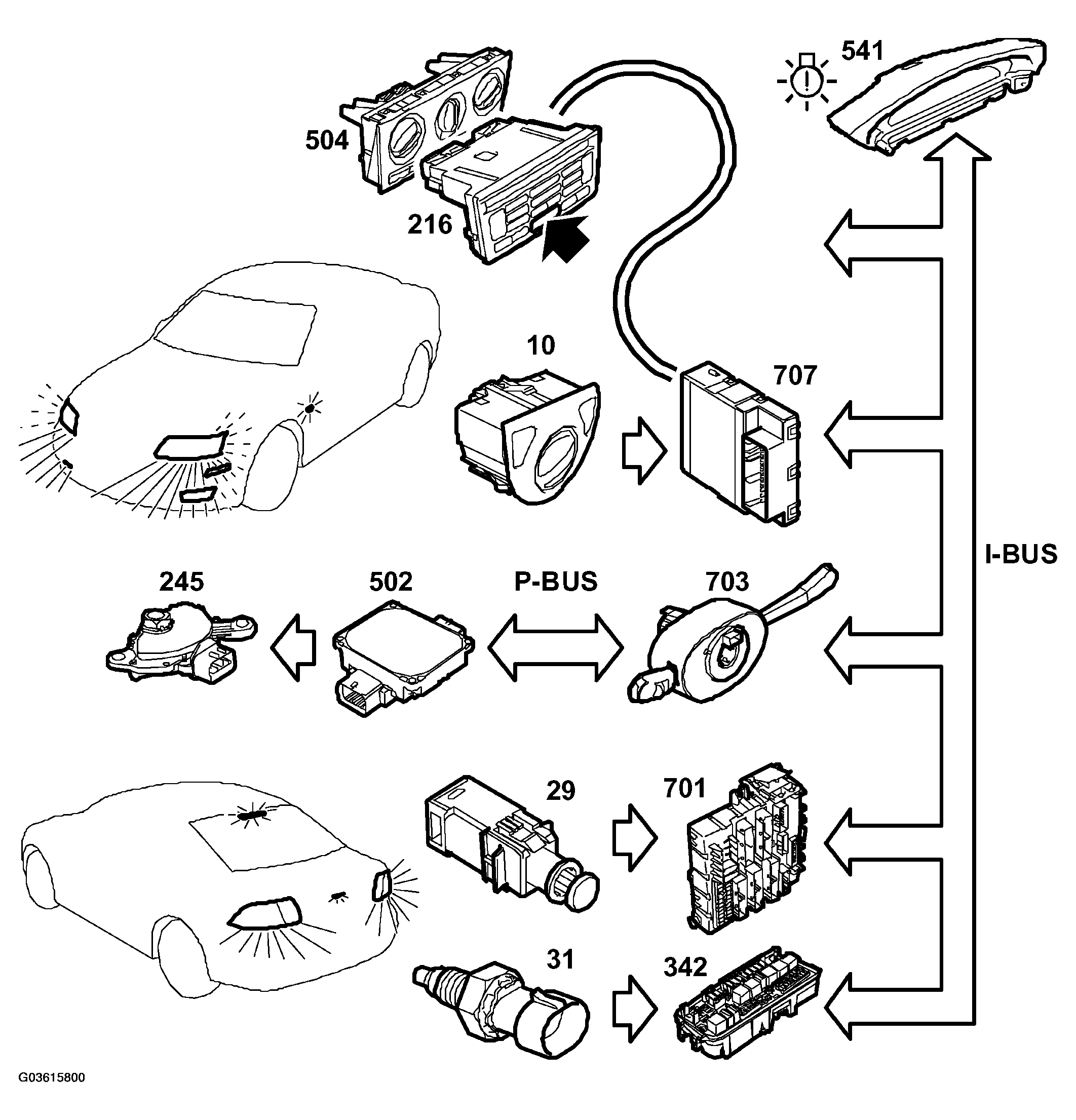

Brief description: Overview
- Switch, lights (10)
- Switch, hazard flashers (25)
- Switch, reversing lights (31)
- Transmission range switch, automatic transmission (245)
- Brake light switch (29)
- Underhood Electrical Center, UEC (342)
- Rear Electrical Center, REC (701)
- Control module, BCM (707)
- Main instrument unit, MIU (540)
- SID (541)
- Control module, TCM (502)
- Column Integration Module, CIM (703a)
The vehicle's exterior lighting system is controlled by the light switch (in the dashboard) and lighting stalk (on steering wheel).
The exterior lighting system of the car includes the following light functions:
