Brake light switch (29): Connection

DESCRIPTION CHART

Pin no. Signal type Description
1 +30 Power supply from fuse 6.
2 Signal The pin receives B+ when the brake pedal is depressed. Connected to ECM pin 40(K).

Brake light function

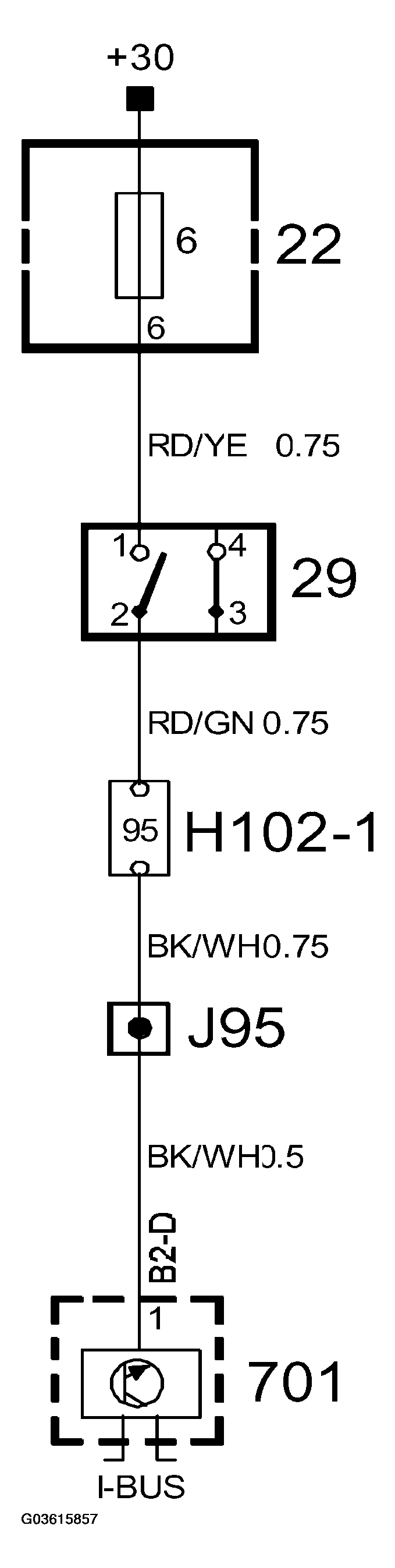

Fig 1: Brake Light Function Circuit Diagram
G03615857Courtesy of SAAB-SCANIA OF AMERICA, INC.

Complete function

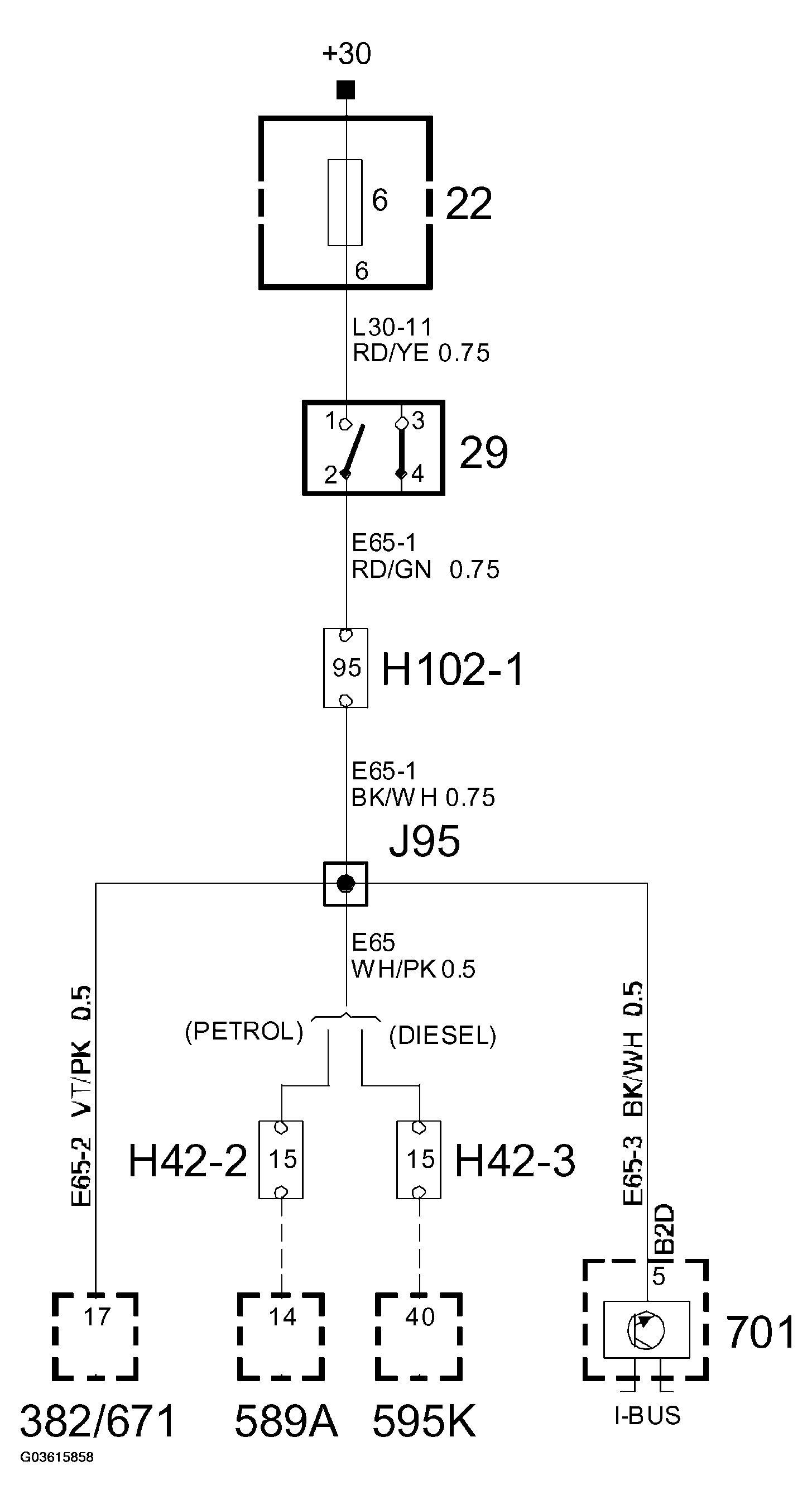

Fig 2: Complete Function Circuit Diagram
G03615858Courtesy of SAAB-SCANIA OF AMERICA, INC.
