Xenon lamp

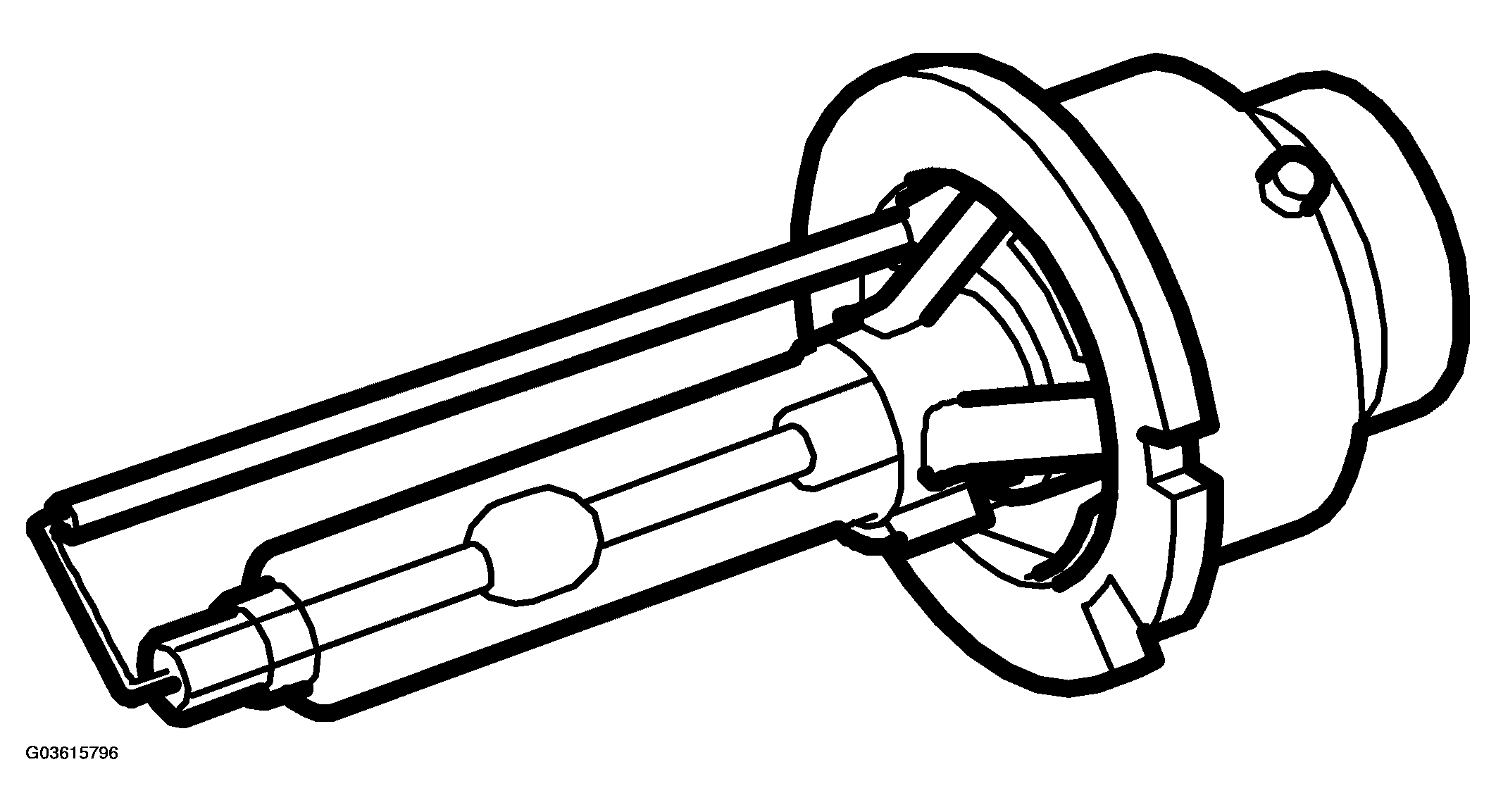

Fig 1: Identifying Xenon Lamp
G03615796Courtesy of SAAB-SCANIA OF AMERICA, INC.
XENON LAMP

Location   In headlamp
Make   Philips
Type designation   D2S
Power W 35 +/- 3
Ignition voltage V approx. 23,000
Operating voltage V 85 +/- 17
Light flow (60 s after start) lm 3200 +/- 450
Color temperature K 4200
