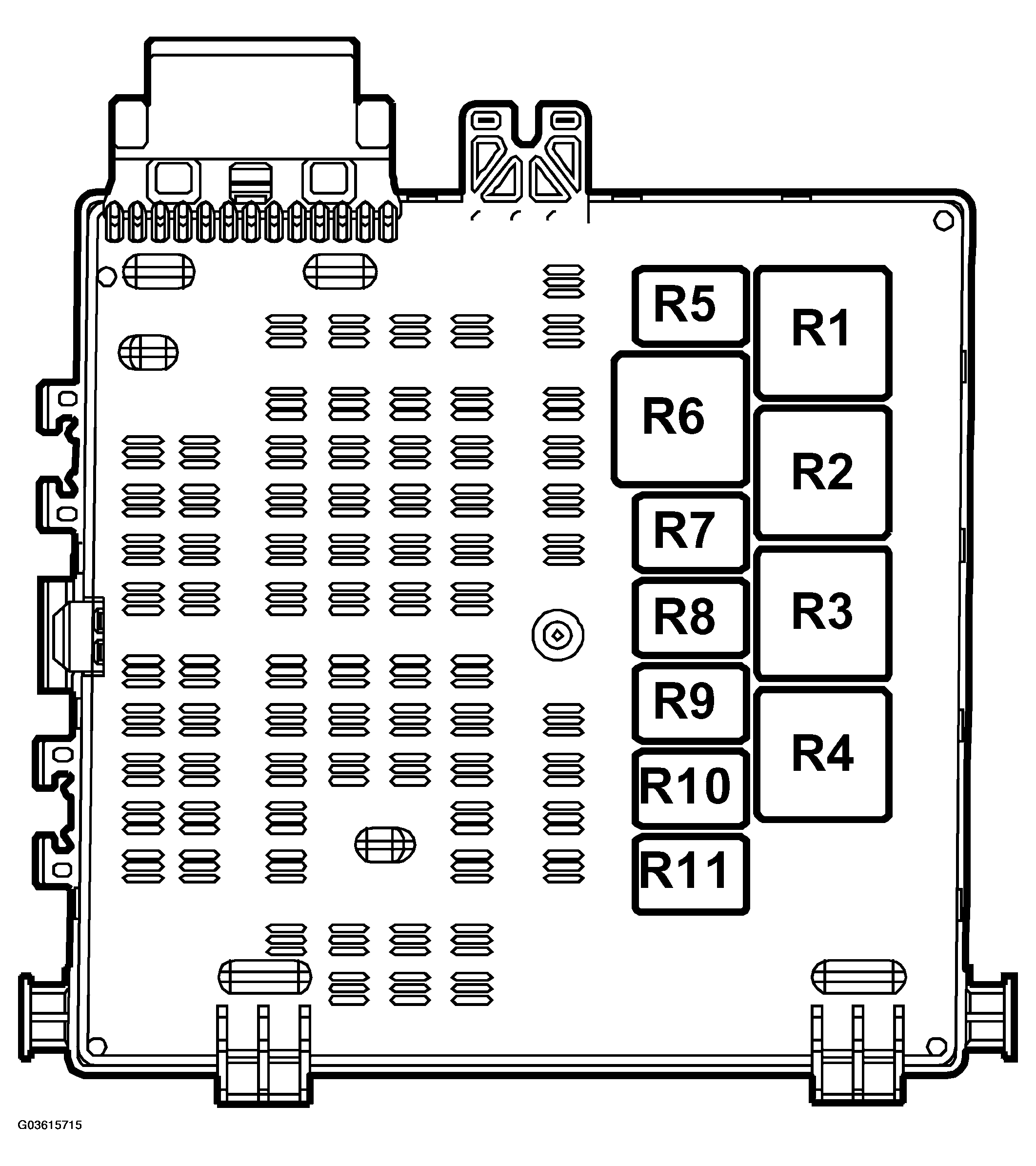

Rear electrical center 701 (REC): Relays
The electrical center can contain a greater number of relays than those listed below. In such cases, these are not connected to a wiring harness.
DESCRIPTION CHART
| Location | No | Description |
|---|---|---|
| R1 | 446 | Electrically adjustable seat relay |
| R2 | 757R | Relay, +15, REC |
| R3 | - | |
| R4 | 113 | Electrically heated rear window relay |
| R5 | - | |
| R6 | - | |
| R7 | 710 | Boot lid opening motor relay |
| R8 | - | |
| R9 | - | |
| R10 | - | |
| R11 | - |
