Connected components

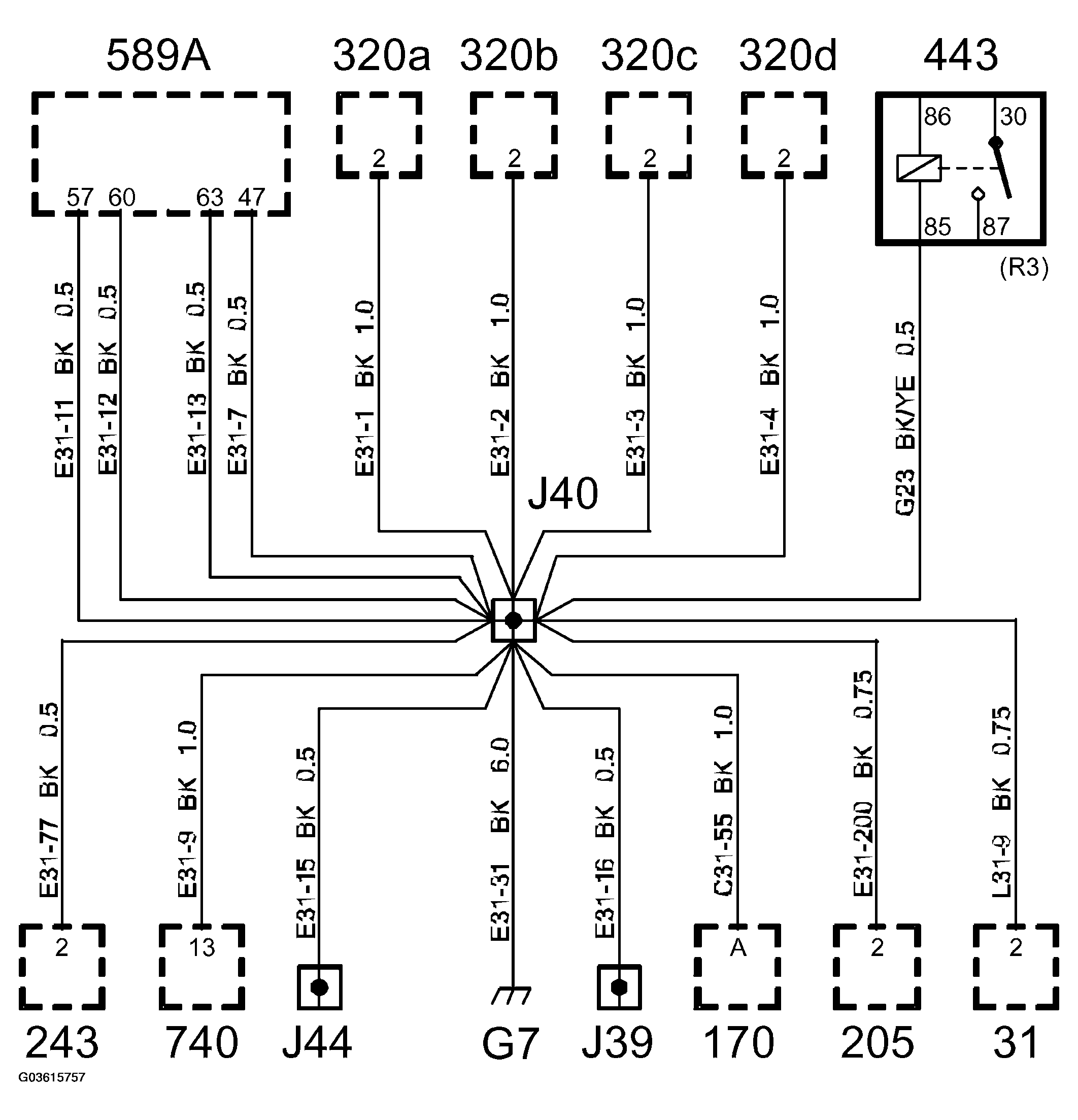

SPECIAL TOOL - GROUNDING POINT G7
| Via crimp connection J40, engine harness, petrol engine | |
| 31 | Reversing light switch |
| 170 | Compressor, A/C |
| 205 | Mass air flow sensor |
| 243 | Engine oil level switch |
| 320a | Ignition coil with ignition power module, cyl. 1 |
| 320b | Ignition coil with ignition power module, cyl. 2 |
| 320c | Ignition coil with ignition power module, cyl. 3 |
| 320d | Ignition coil with ignition power module, cyl. 4 |
| 443 | Heated oxygen sensor relay |
| 589A | Control module, Trionic, 4-cyl petrol, contact A |
| 740 | Ionization Detection Module |
| Via Crimp connection J39, petrol engine harness which is connected with crimp connection J40 | |
| Cable screens for cables to 320c and 320d | |
| Via Crimp connection J44, petrol engine harness which is connected with crimp connection J40 | |
| Cable screens for cables to 320a and 320b |
