Connected components

SPECIAL TOOL - GROUNDING POINT G43

	Via CRIMP J80, INSTRUMENT HARNESS
305	LED, anti-theft alarm
355F	CD player/changer, front
375	Connection, mobile telephone
445	16-pin Data link connector, CARB
540	Main instrument unit
541	SID
658	Yaw sensor
684	Light switch module
703	Steering column unit
736	Infotainment control panel

Fig 1: Grounding Point G43 Circuit Diagram (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Crimp J80

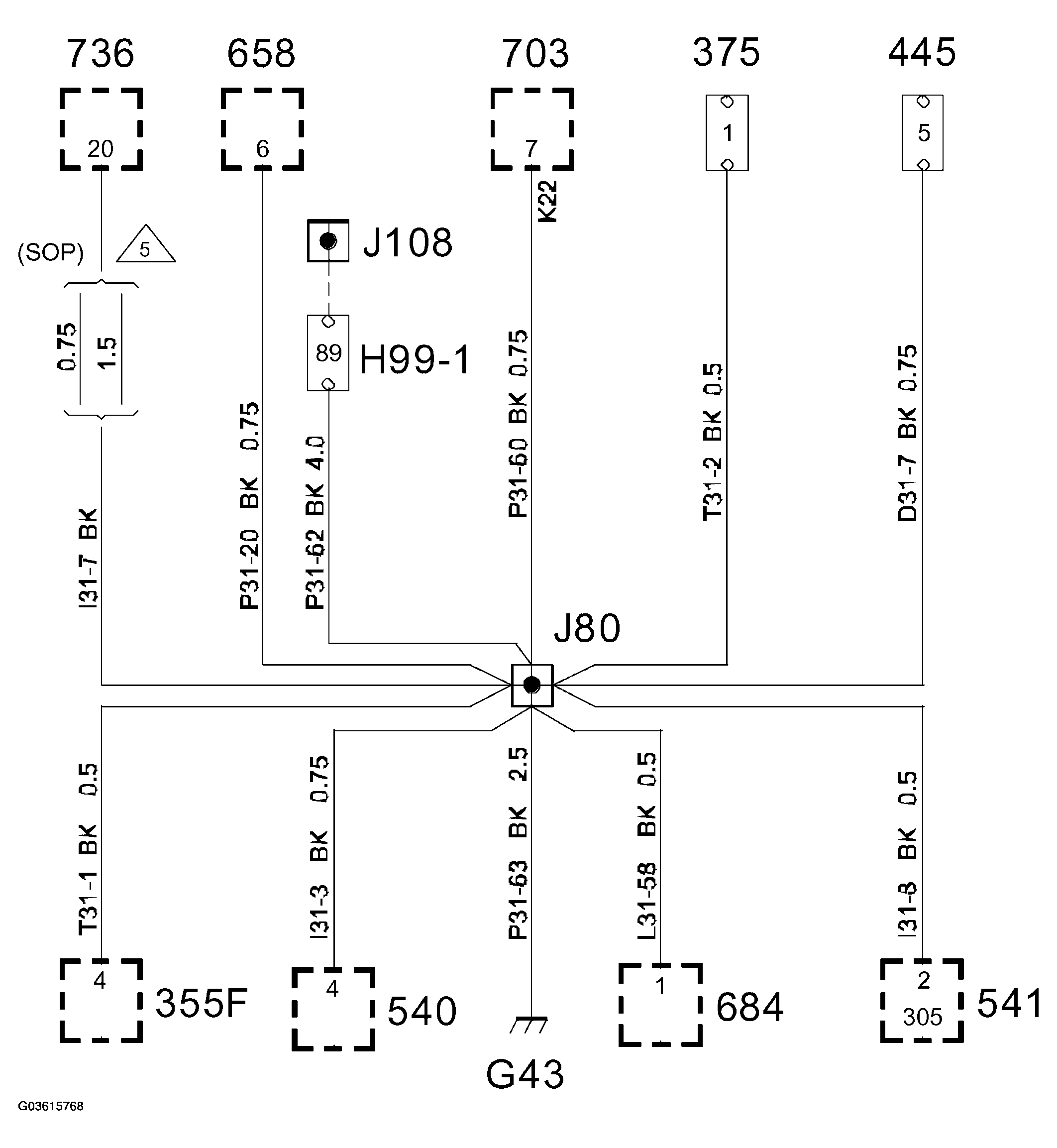

Fig 2: Grounding Point G43 Circuit Diagram (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
