Grounding point G31: Notes

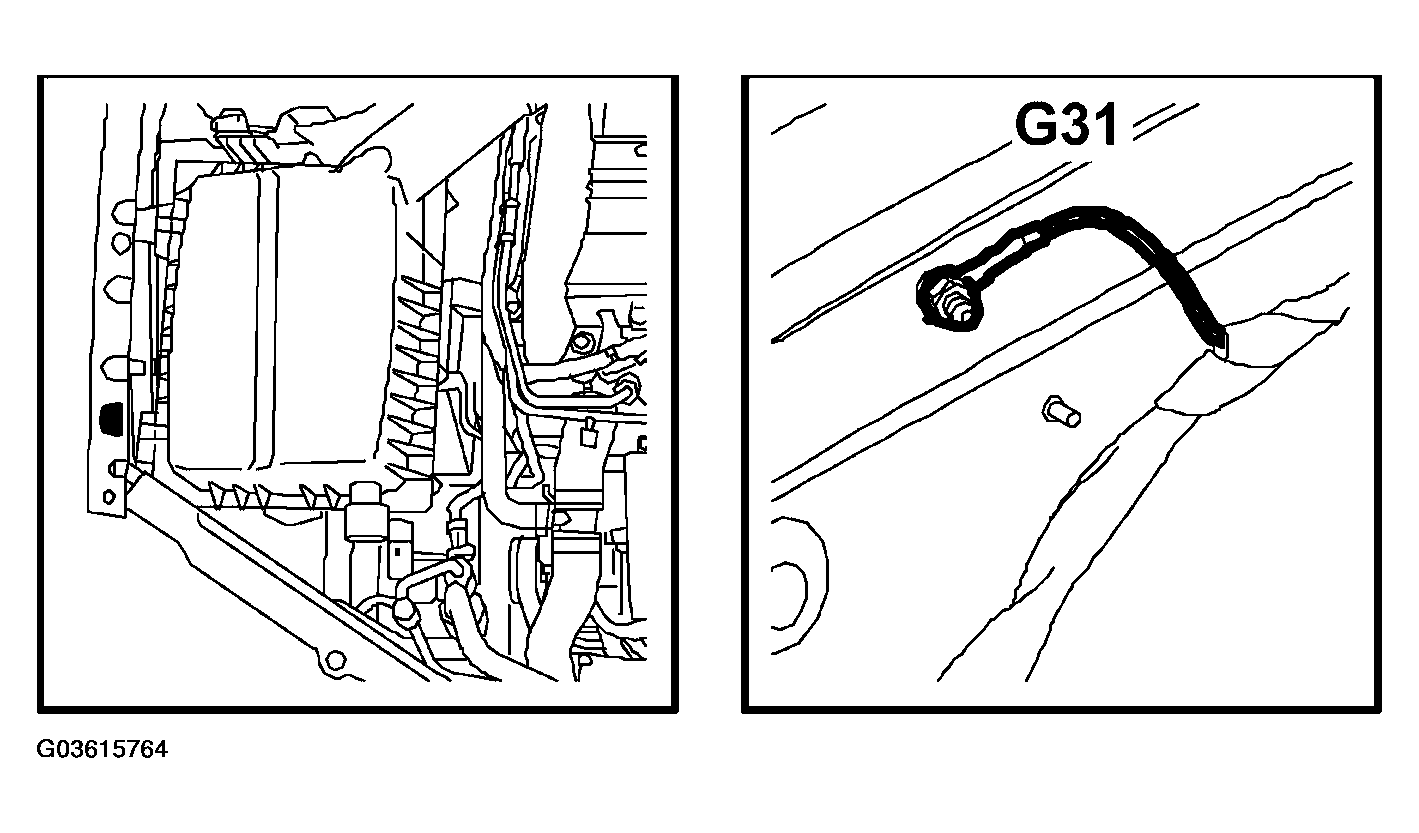

Fig 1: Identifying Grounding Point G31 Connector
G03615764Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In the engine bay on the side plate above the right wheel housing

Fig 2: Grounding Point G31 Circuit Diagram
G03615765Courtesy of SAAB-SCANIA OF AMERICA, INC.
