Connected components:

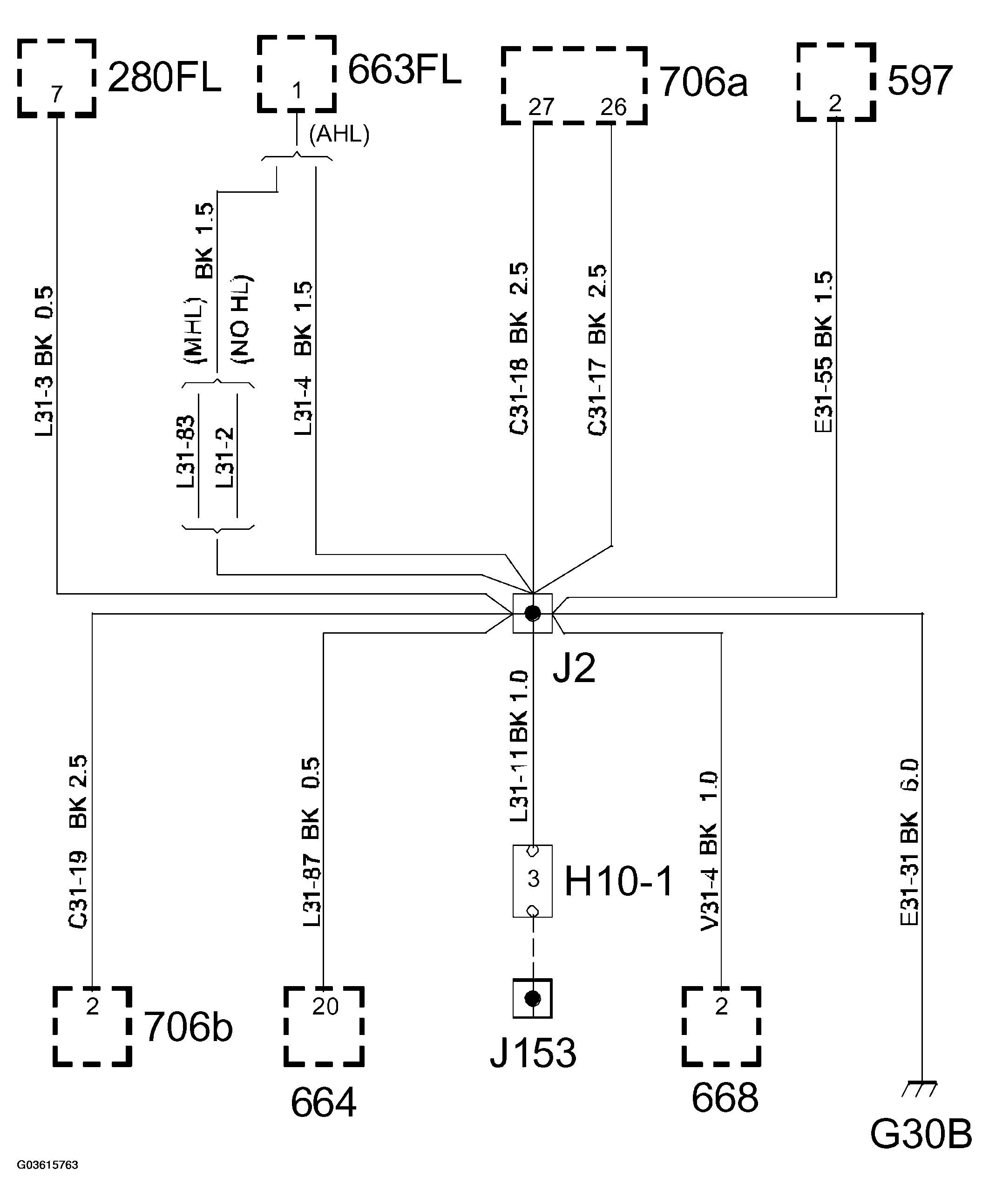

SPECIAL TOOL - GROUNDING POINT G30B
| Via Crimp J2, front harness | |
| 280FL | Motor, headlamp beam adjustment, LH |
| 597 | Parking heater |
| 663FL | Unit, headlamp, LH |
| 664 | Automatic Headlamp Levelling, AHL |
| 668 | High pressure headlamp pump motor |
| 706a | Relay unit, radiator fans |
| 706b | Radiator fan relay unit |
| Via Crimp J153, front bumper harness which in turn is connected with J2 | |
| 85FL | Left fog light bulb |
| 85FR | Right fog light bulb |
| 234FL | Left side marker light bulb |
| 234FR | Right side marker light bulb |
