Connected components

SPECIAL TOOL - GROUNDING POINT G15

418RL Unit, rear left light cluster
418RR Unit, rear right light cluster
  Via crimp J104, main harness
382 TCS control module
671 ESP control module

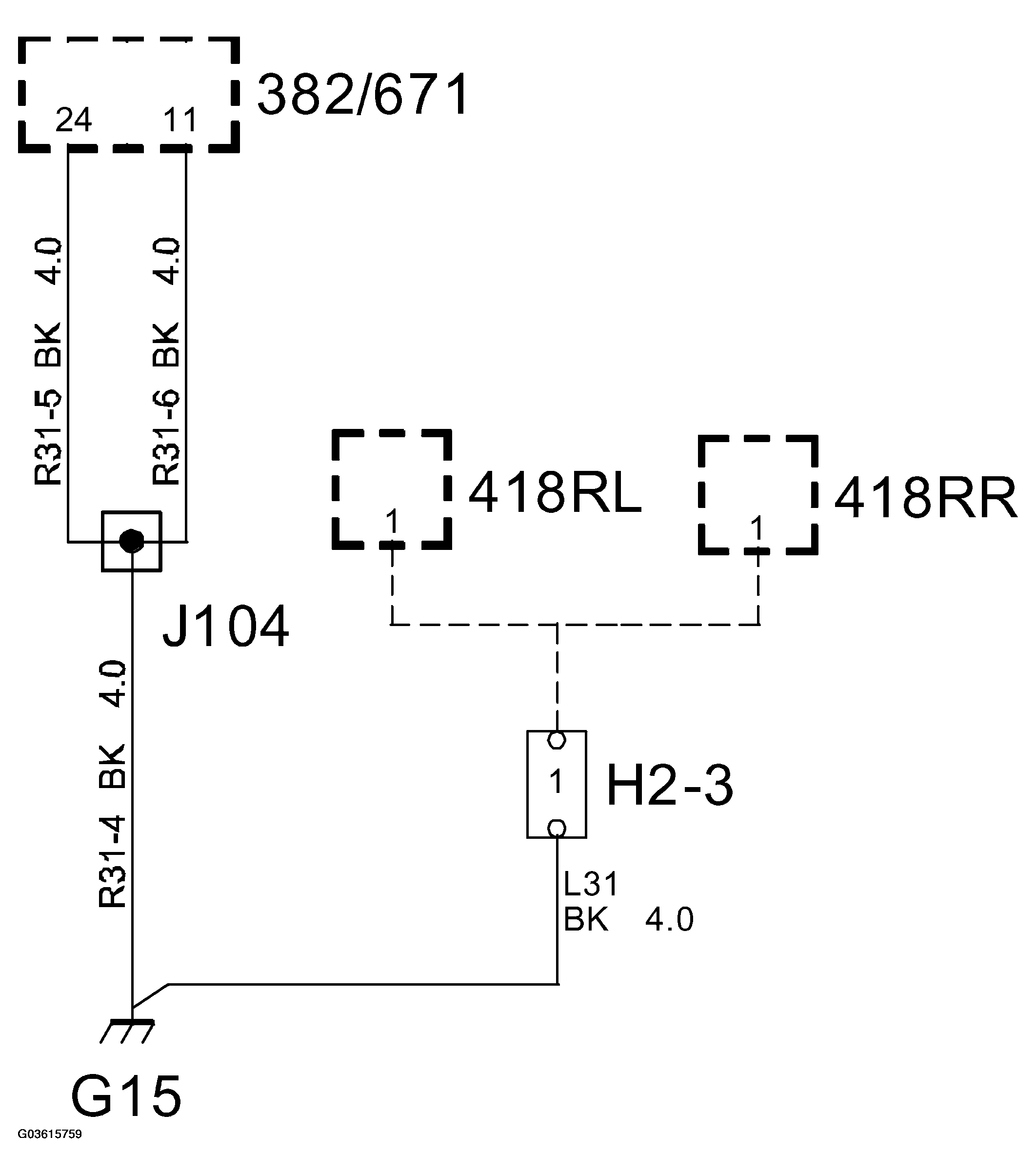

Fig 1: Grounding Point G15 Circuit Diagram
G03615759Courtesy of SAAB-SCANIA OF AMERICA, INC.
