Crimp J80, instrument harness: Notes

Location:

LHD:  Approx. 80 mm from branching point grounding point G43 towards grounding point G41

RHD:  Approx. 70 from branching point grounding point G43 towards SID

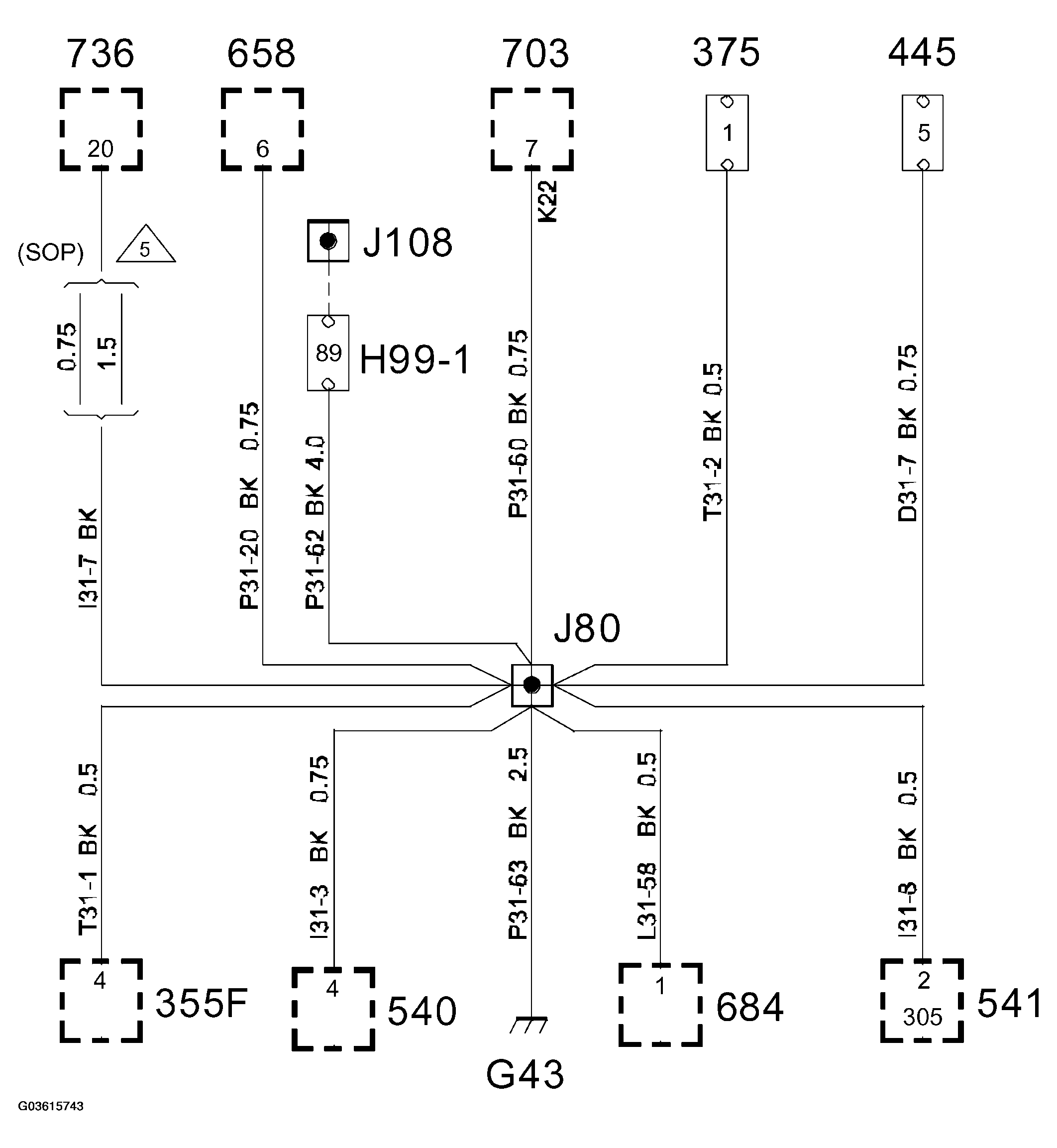

Fig 1: Crimp J80, Instrument Harness Circuit Diagram
G03615743Courtesy of SAAB-SCANIA OF AMERICA, INC.
