Crimp J173, spotlight wiring harness: Notes

Location:  Approx. 350 mm from branching grounding point G30A towards the spotlights

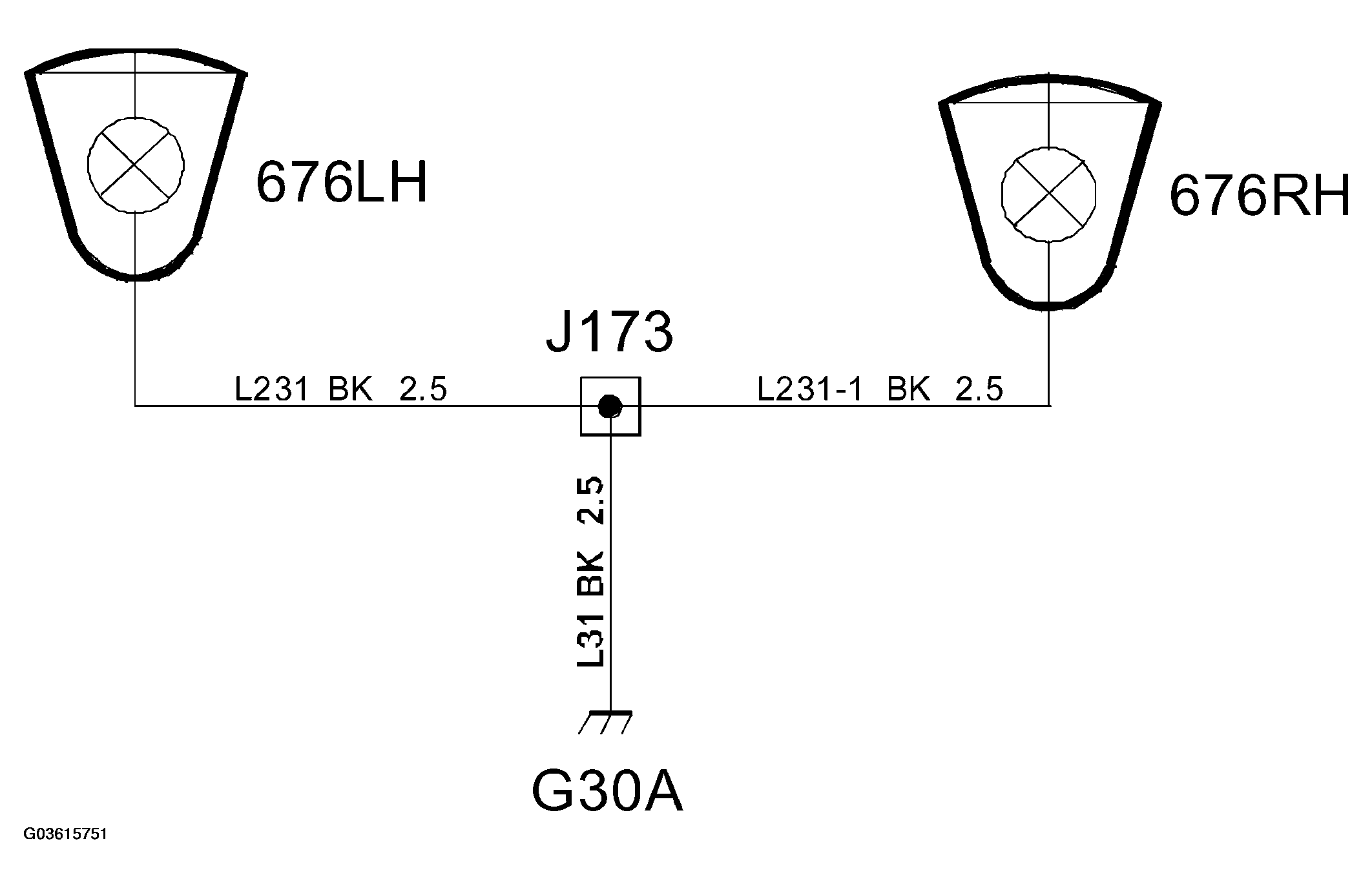

Fig 1: Crimp J173, Spotlight Wiring Harness Circuit Diagram
G03615751Courtesy of SAAB-SCANIA OF AMERICA, INC.
