Brake light switch (29)

Location:  On pedal bracket

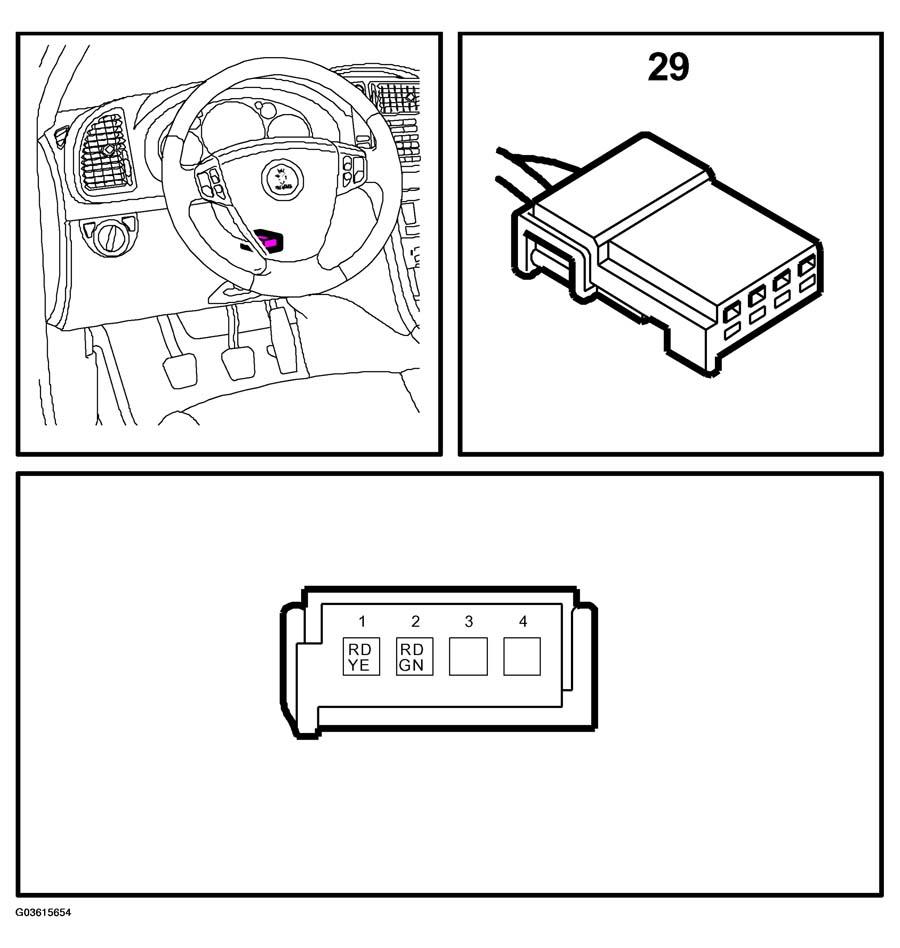

Fig 1: Identifying Brake Light Switch (29) Connector
G03615654Courtesy of SAAB-SCANIA OF AMERICA, INC.
