To fit

  1. Fit the Xenon bulb in place by carefully inserting it into the headlamp housing.

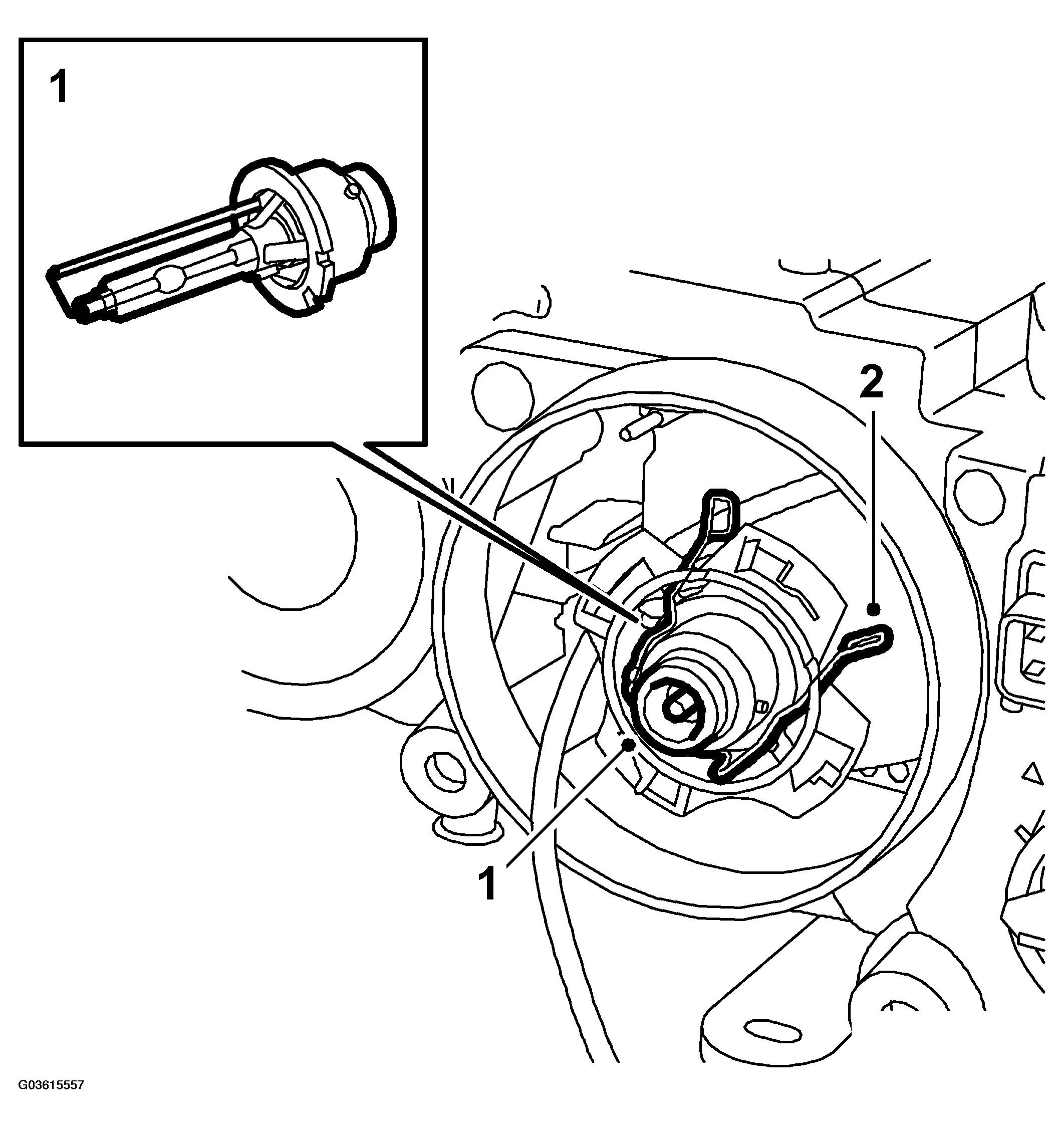

    Fig 1: Illustration For Step 1-2
    G03615557Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Secure the clamp holding the Xenon bulb.
  3. Fit the ignition transformer.

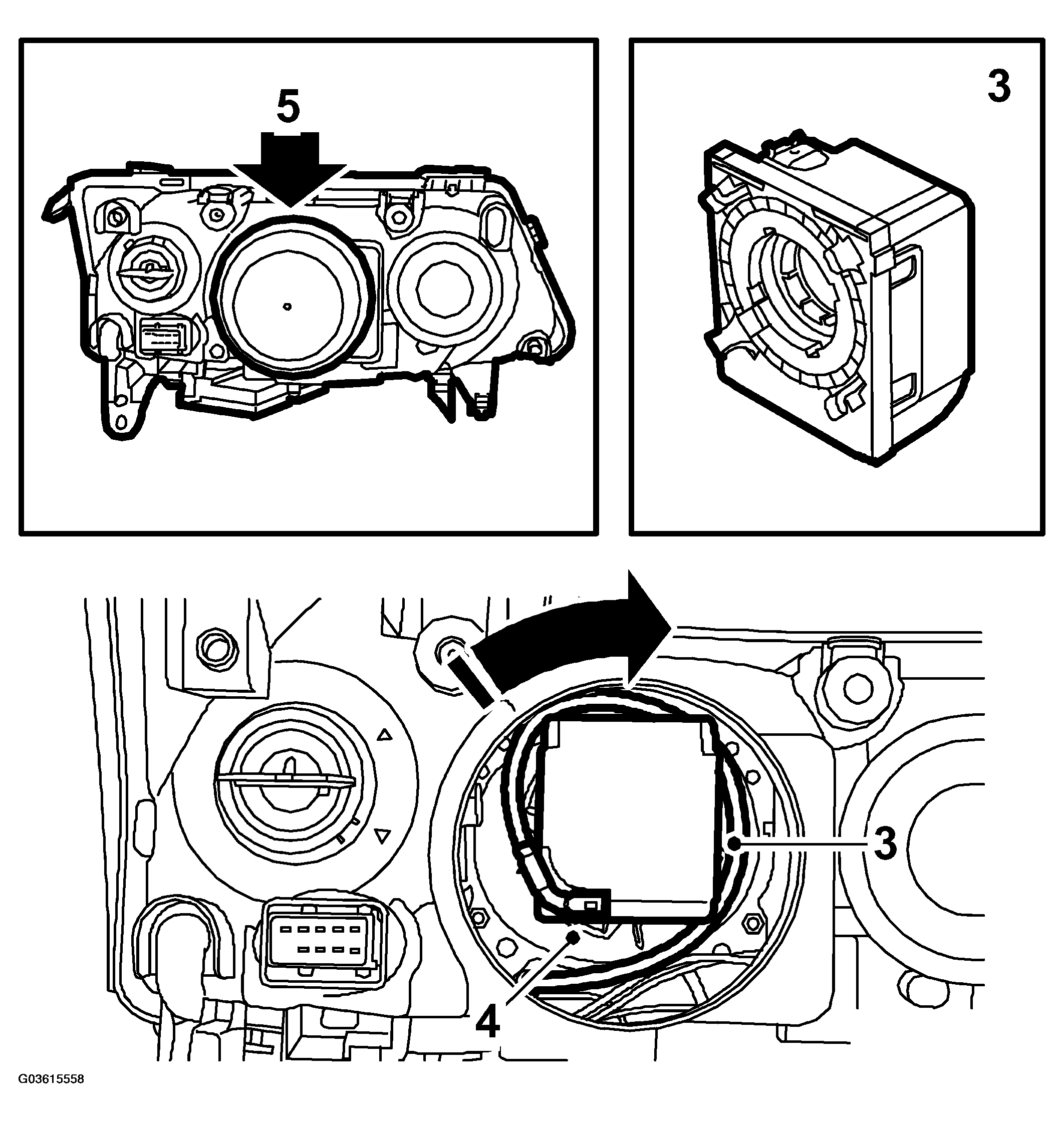

    Fig 2: Illustration For Step 3-5
    G03615558Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Plug in the ignition transformer connector.
  5. Fit the protective cover of the Xenon lamp.
  6. LH:  Fit the battery cover and washer filler pipe.
  7. Clear any diagnostic trouble codes.
