To fit

  1. Fit the Xenon lamp ballast.
    NOTE: Check that the ballast seal is whole and correctly situated.

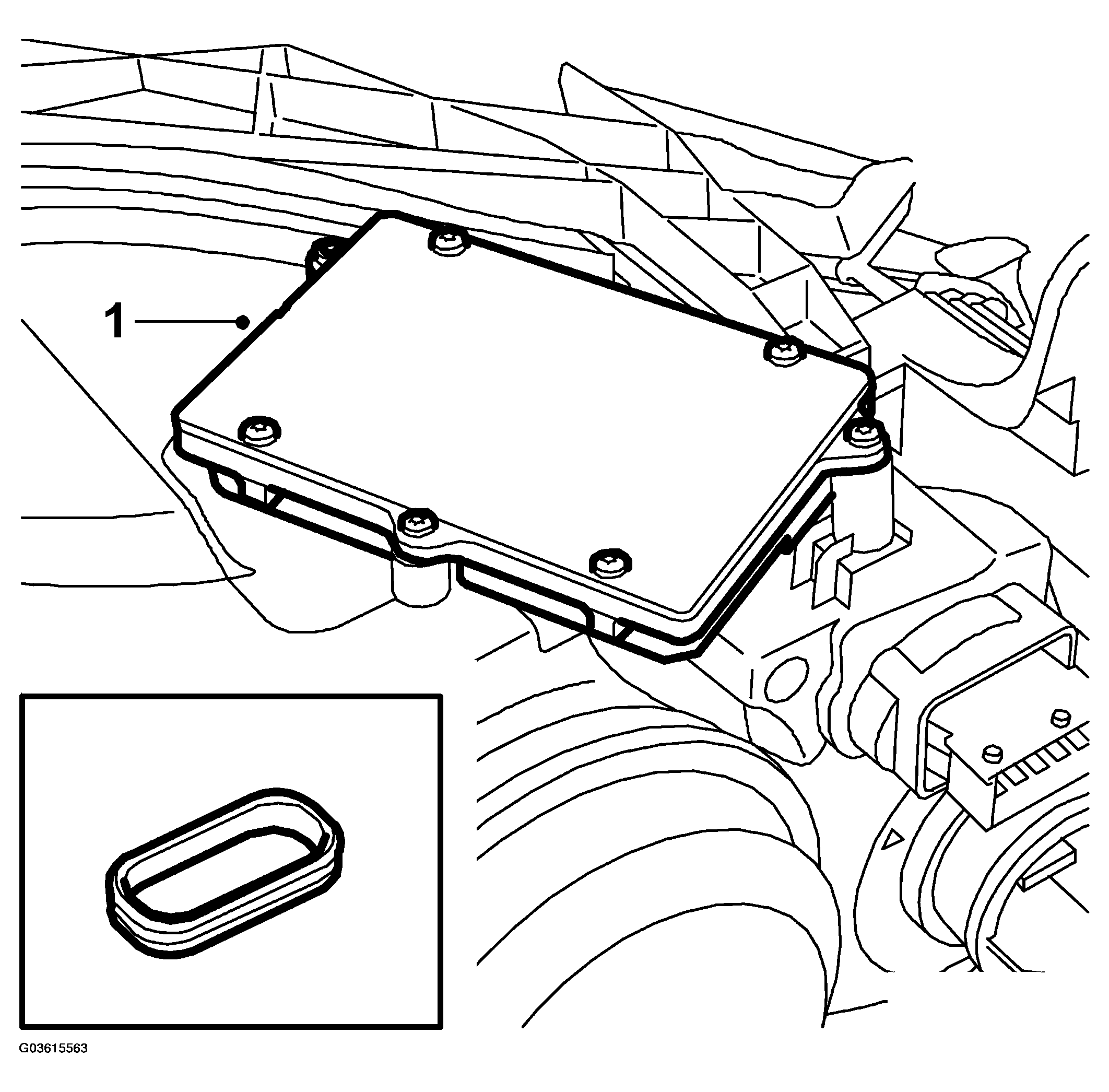

    Fig 1: Illustration For Step 1
    G03615563Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the headlamp, see HEADLAMPS .

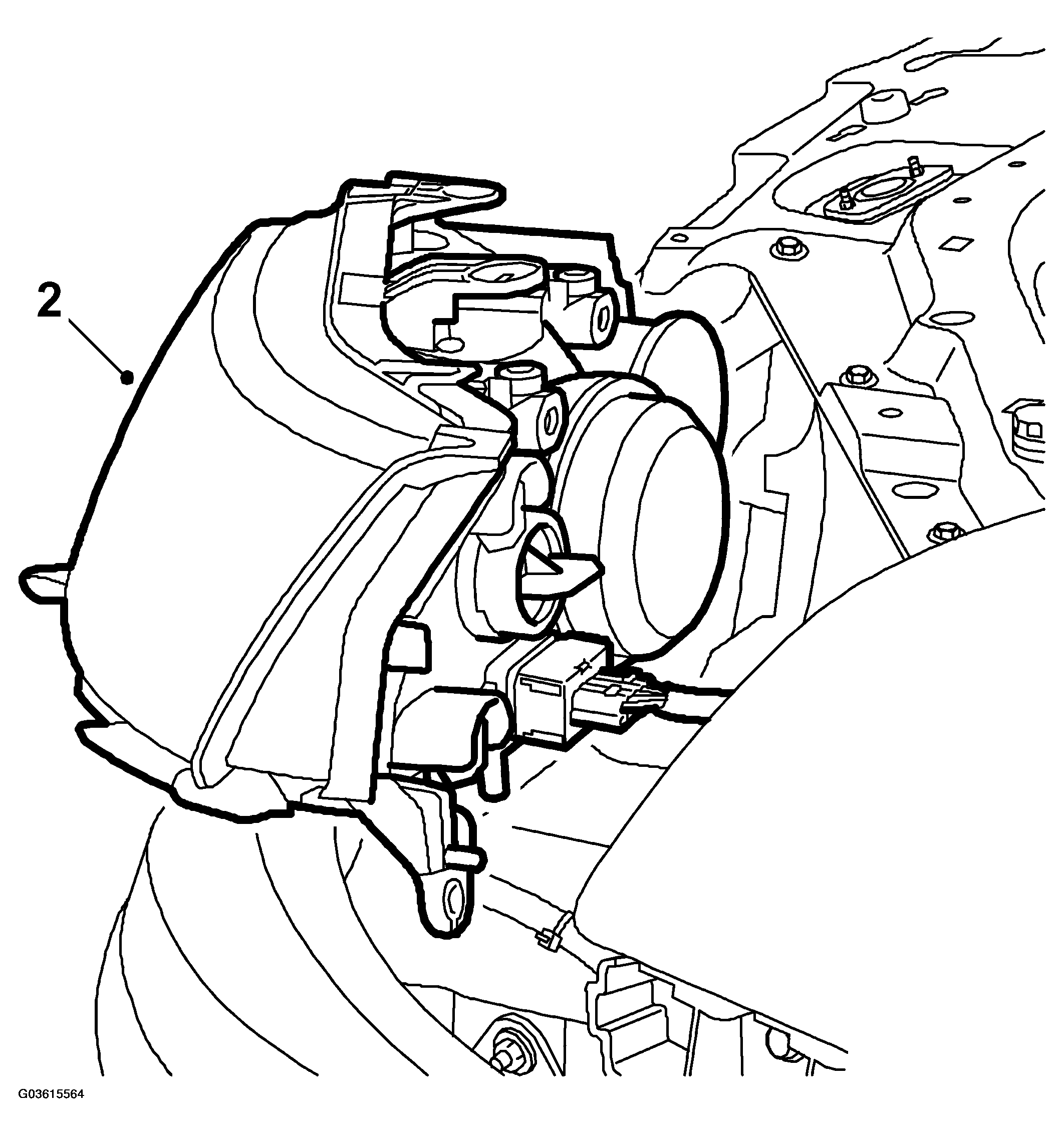

    Fig 2: Illustration For Step 2
    G03615564Courtesy of SAAB-SCANIA OF AMERICA, INC.
