To fit

  1. Fit the Xenon bulb in place by carefully inserting it into the headlamp housing.

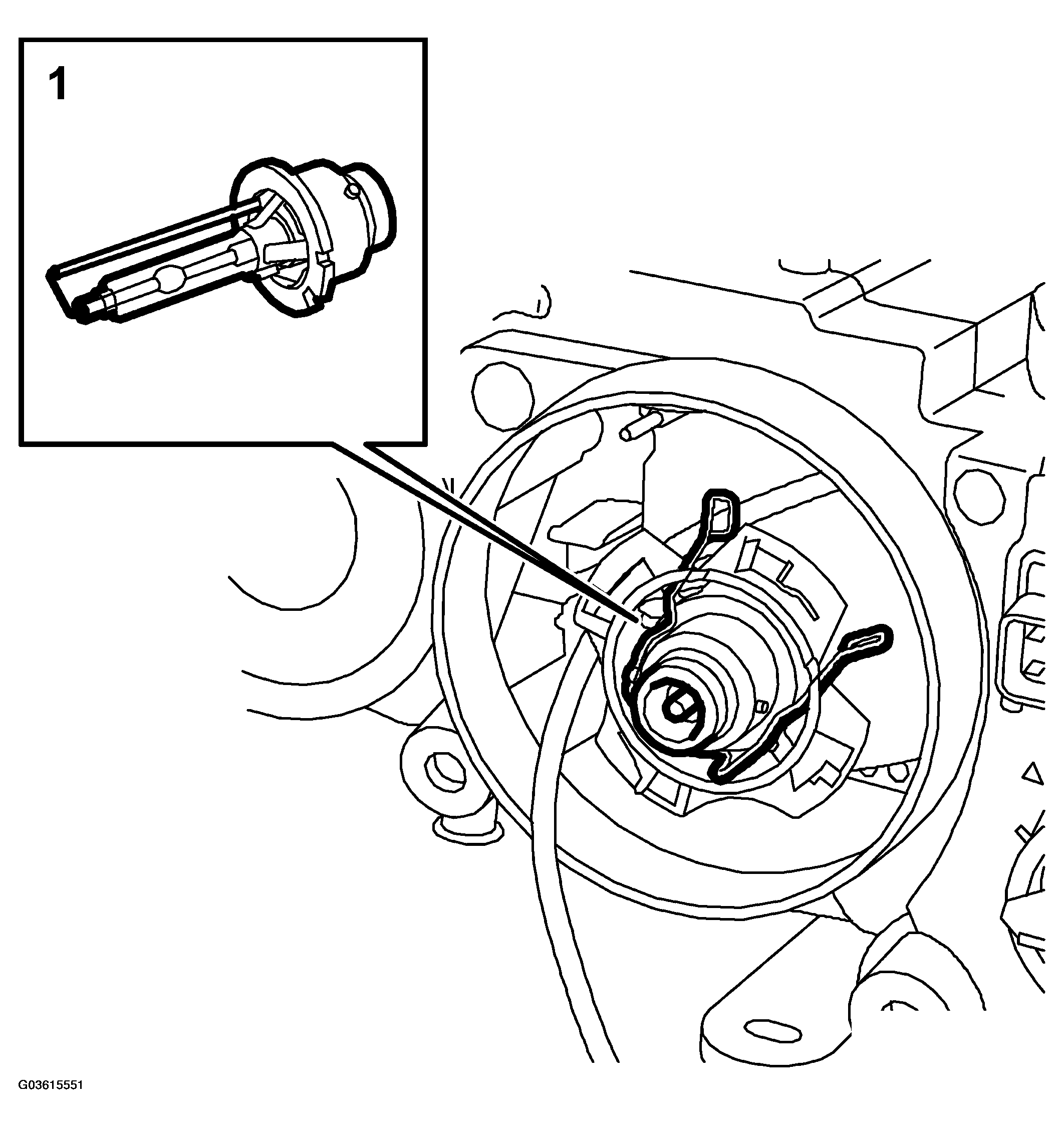

    Fig 1: Illustration For Step 1
    G03615551Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Secure the clamp holding the Xenon bulb.

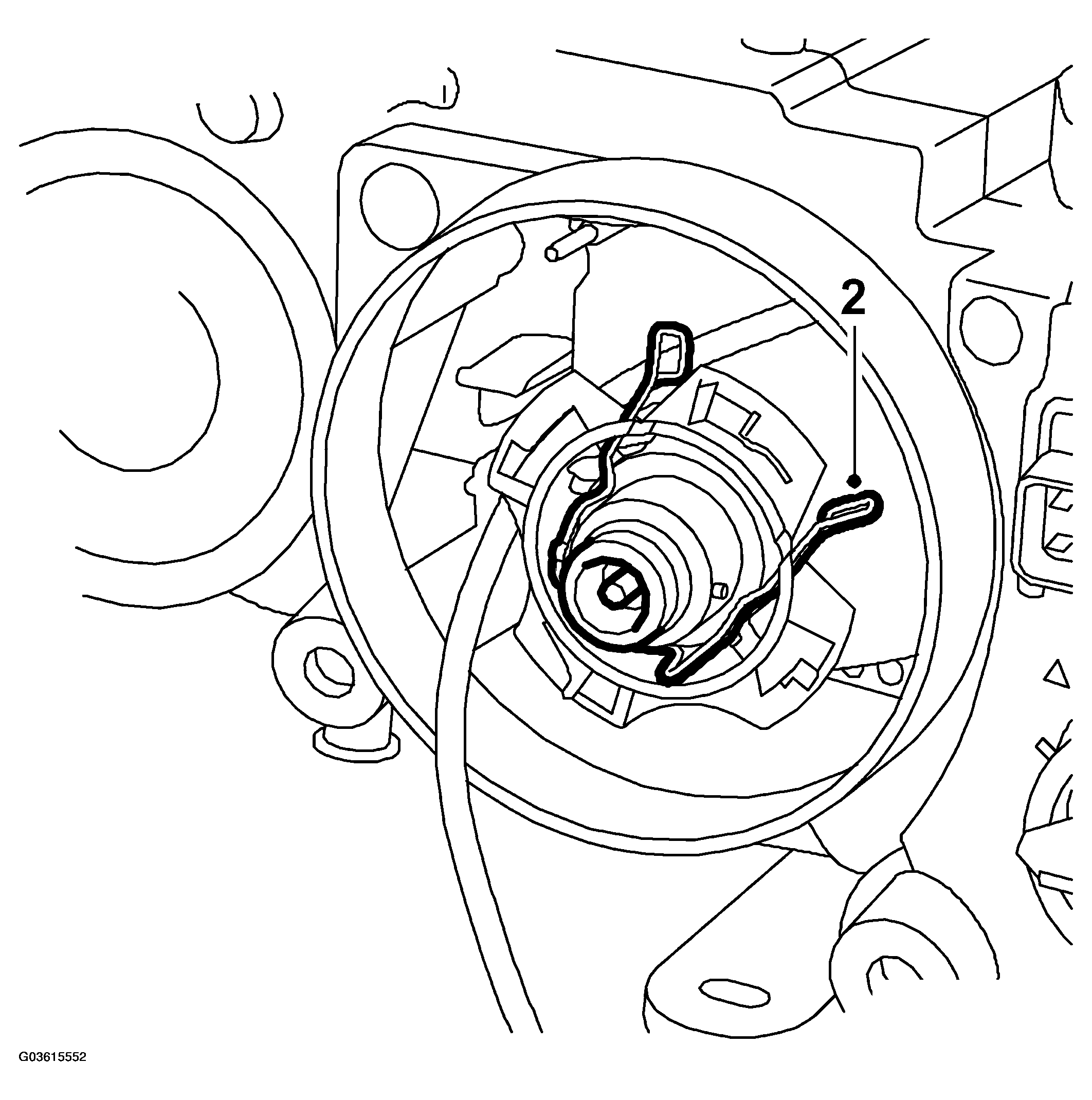

    Fig 2: Illustration For Step 2
    G03615552Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the ignition transformer.

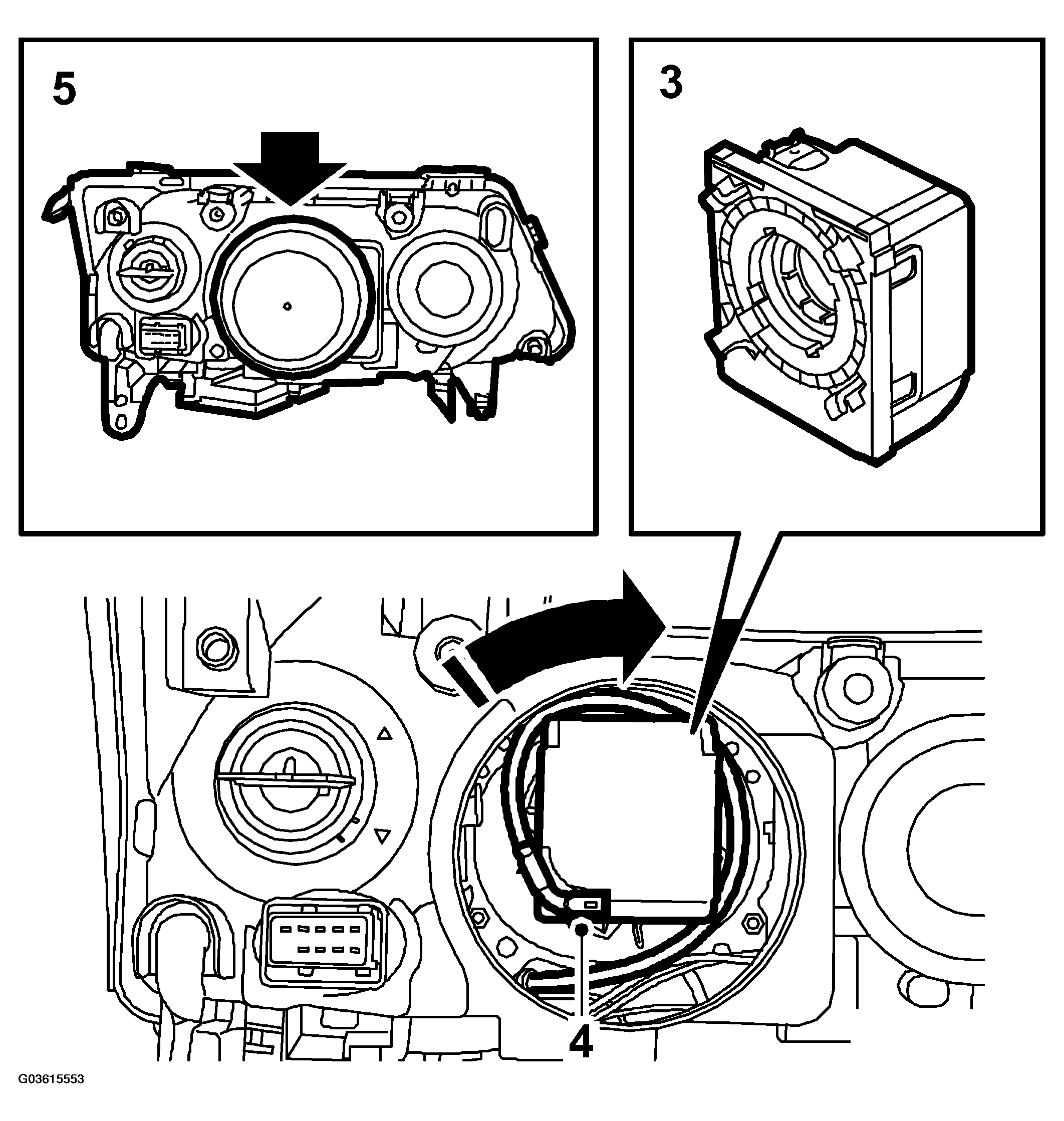

    Fig 3: Illustration For Step 3-5
    G03615553Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Plug in the ignition transformer connector.
  5. Fit the protective cover of the Xenon lamp.
  6. Fit the Xenon lamp ballast.

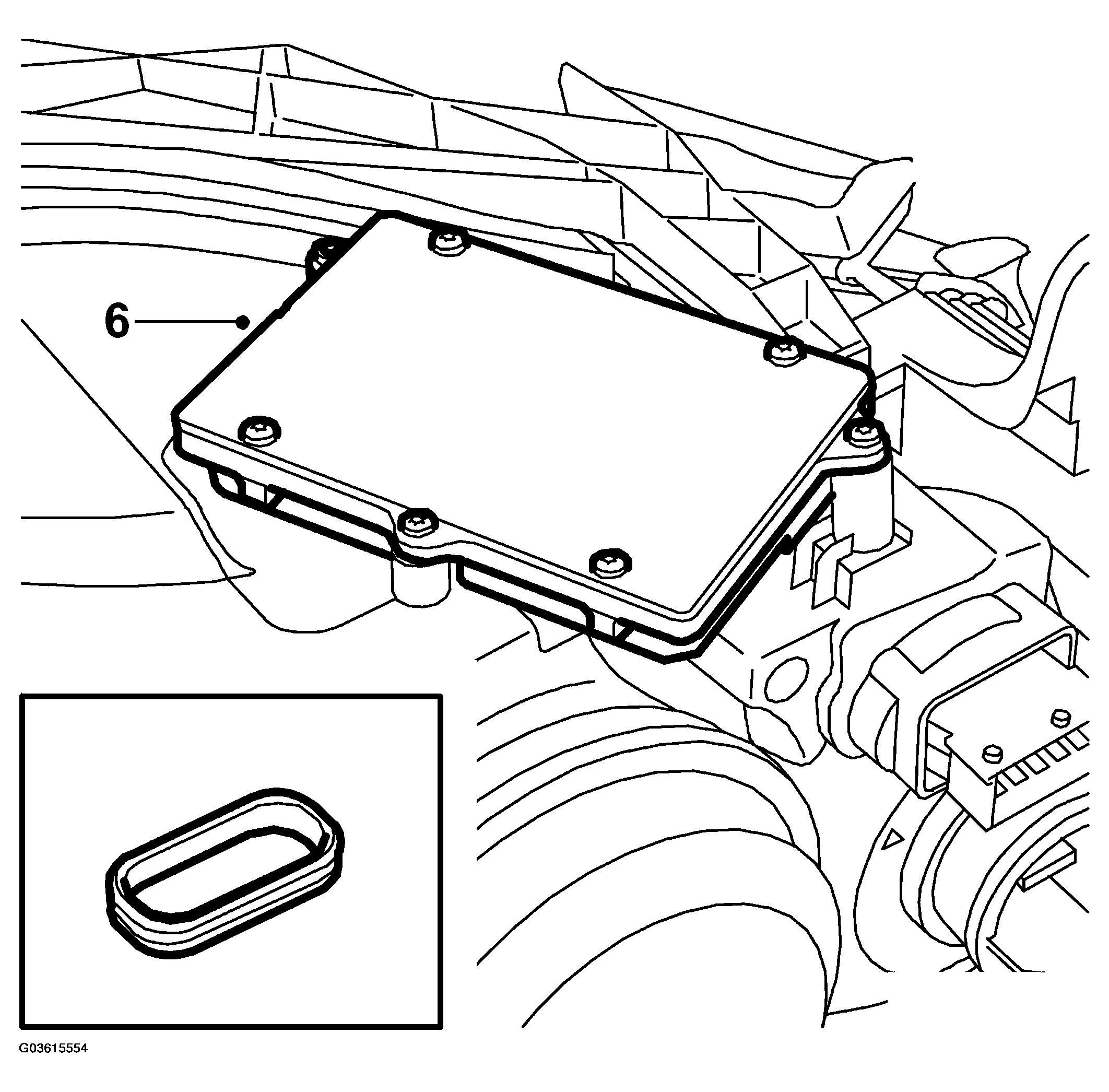

    Fig 4: Illustration For Step 6
    G03615554Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit the headlamp, see HEADLAMPS .
