Rear light cluster: Removing

  1. Open the bootlid.
  2. Open the side hatches.

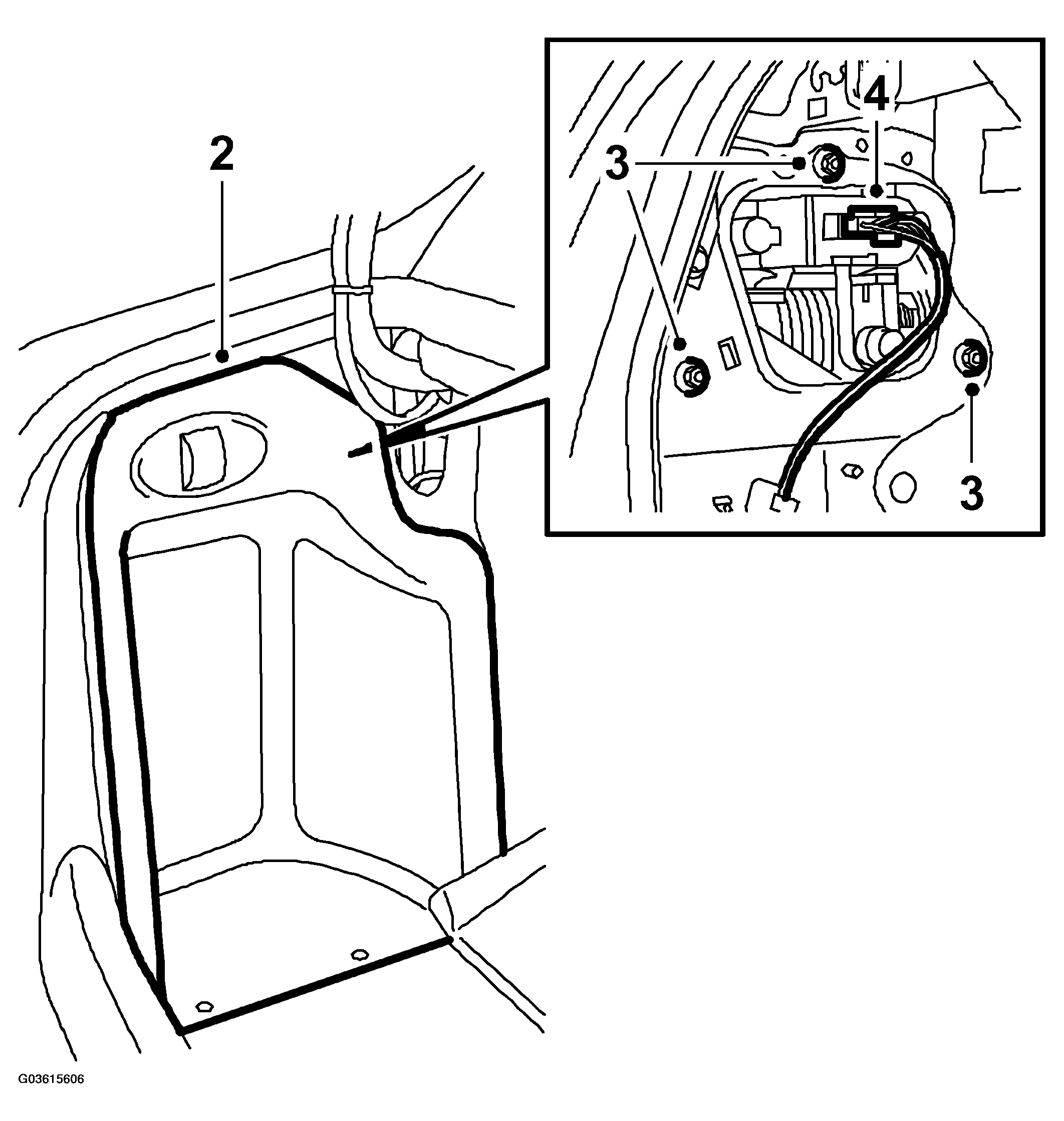

    Fig 1: Illustration For Step 2-4
    G03615606Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the rear light's 3 nuts.
  4. Part the connector and remove the rear light.
