To remove

  1. Remove the spoiler shield.
  2. Remove the fog light nuts.

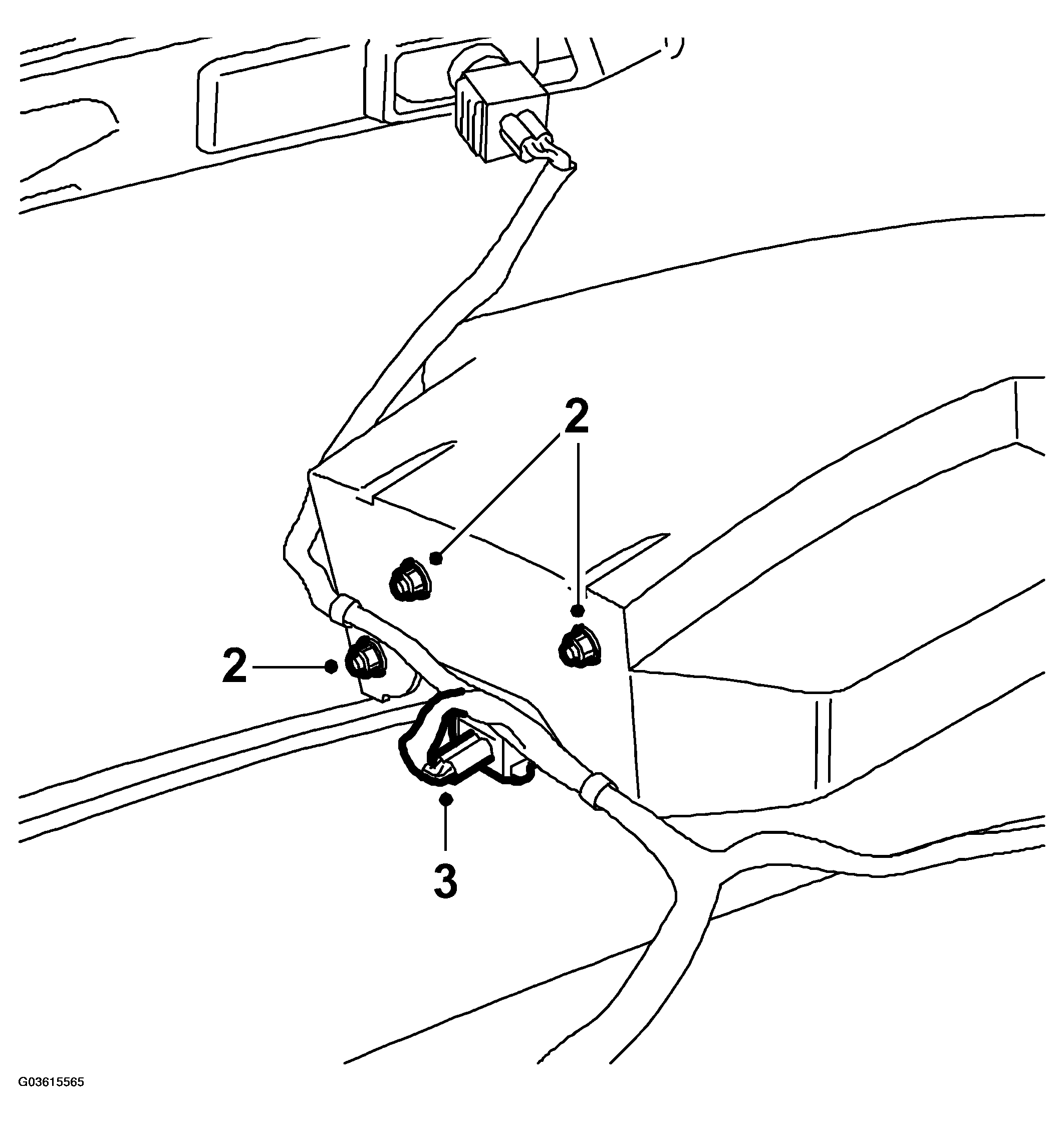

    Fig 1: Illustration For Step 2-3
    G03615565Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector.

    Remove the fog light from the bracket.

  4. Loosen the lower grille halfway by using a screwdriver to bend in the lock tabs so they release.

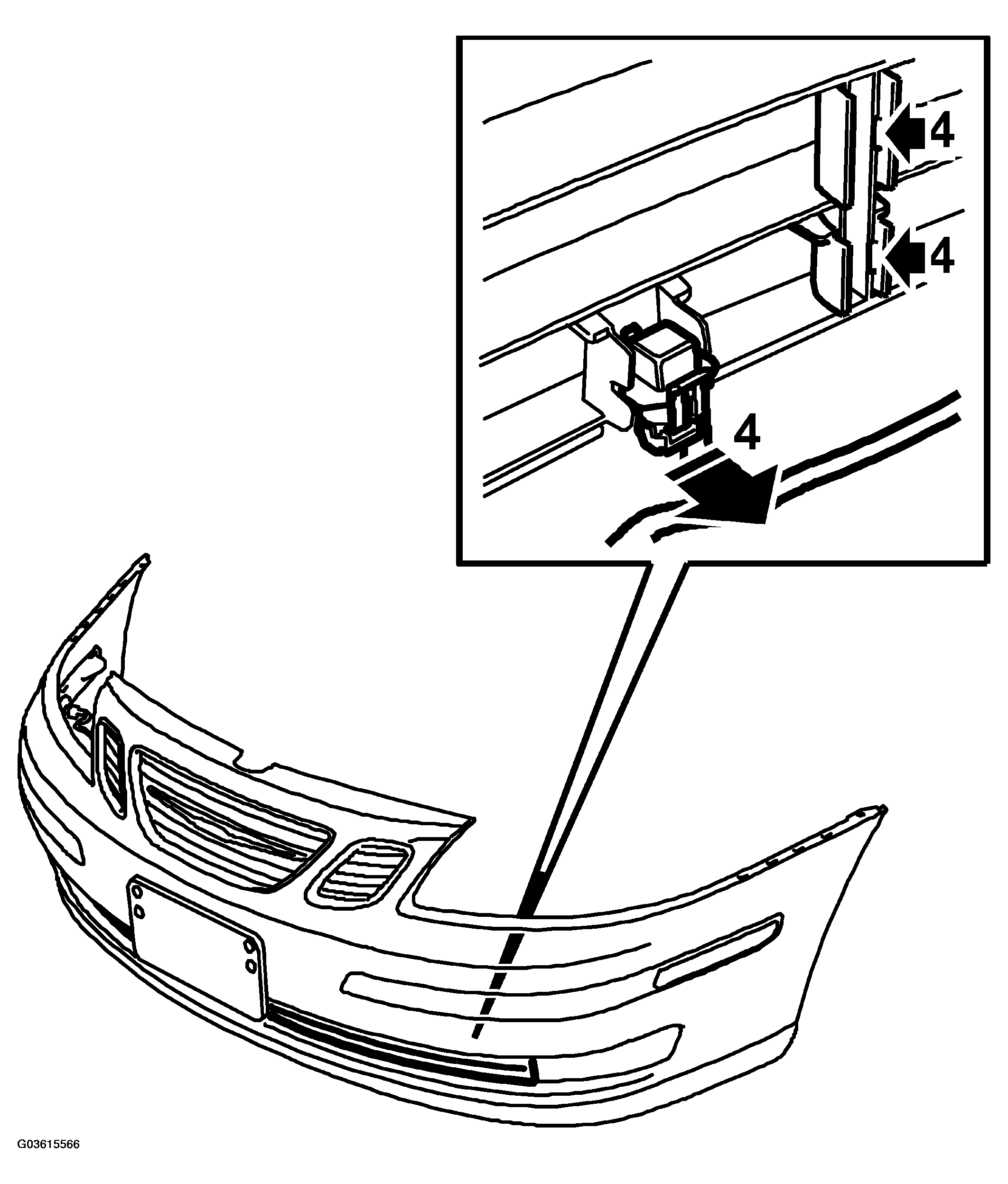

    Fig 2: Illustration For Step 4
    G03615566Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the fog light from the shield.
