Pedal switches, brake and clutch

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

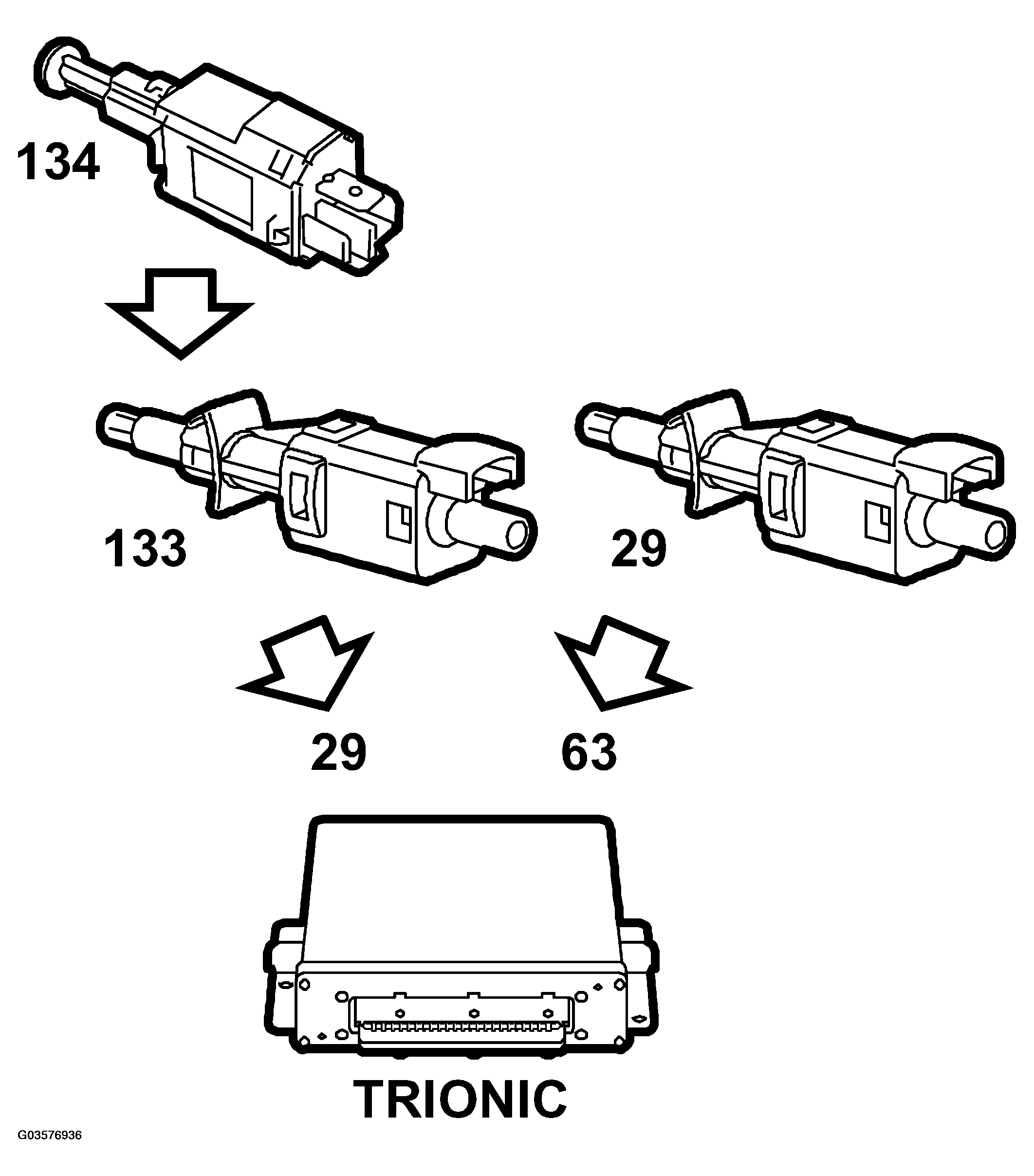

Fig 1: Identifying Pedal Switches, Brake And Clutch - Control Module Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

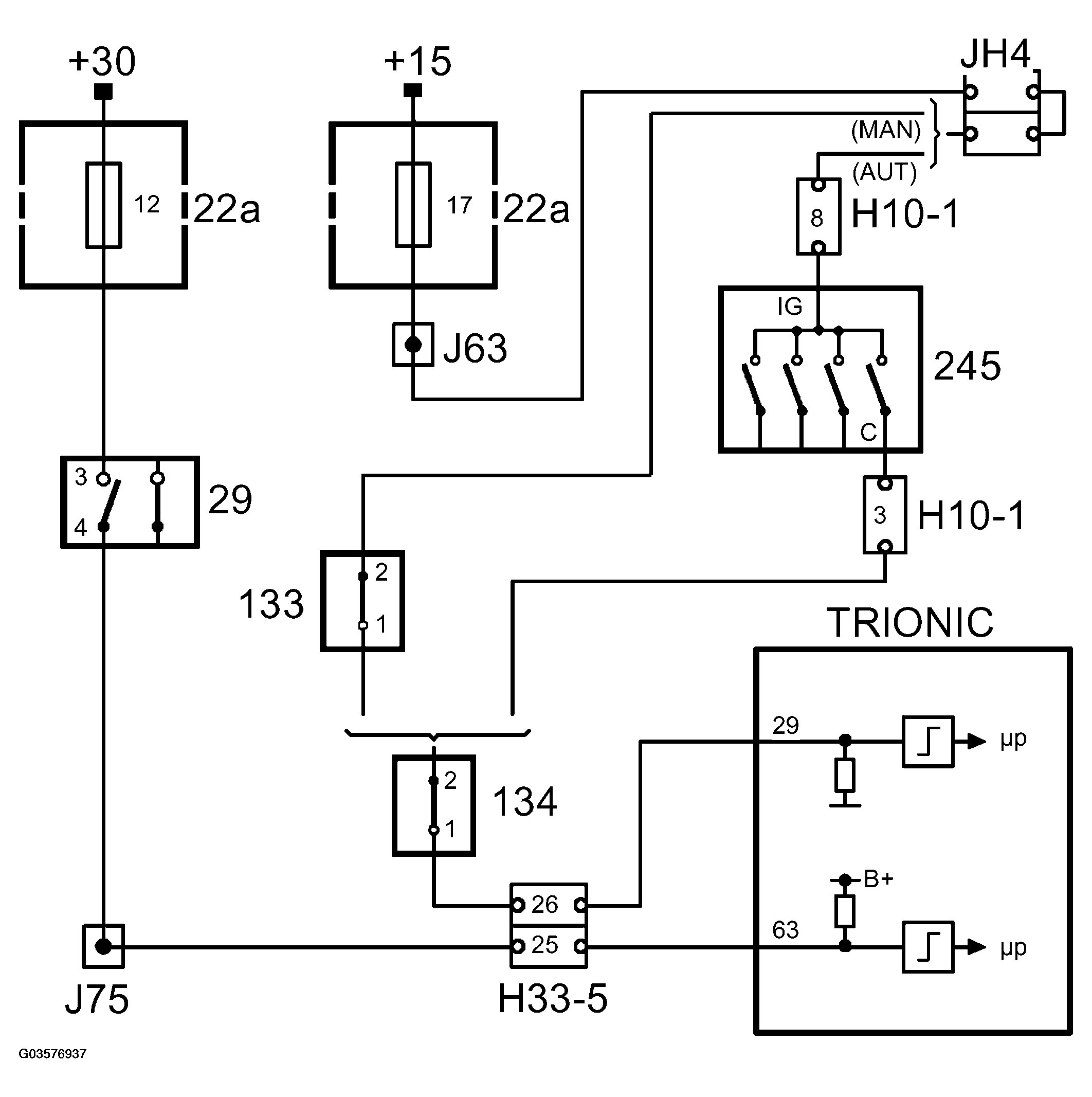

Fig 2: Identifying Pedal Switches, Brake And Clutch - Control Module Communication Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

When the brake or clutch pedal is depressed, the pedal switches will cut the power supply to control module pins 29 and cruise control will be disengaged. On cars with automatic transmission, the circuit is powered from the gear selector position sensor in positions D, 3, 2 and 1. The pedal switches are works-fitted on all cars with manual gearbox, even those without cruise control.
