Full-load enrichment

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

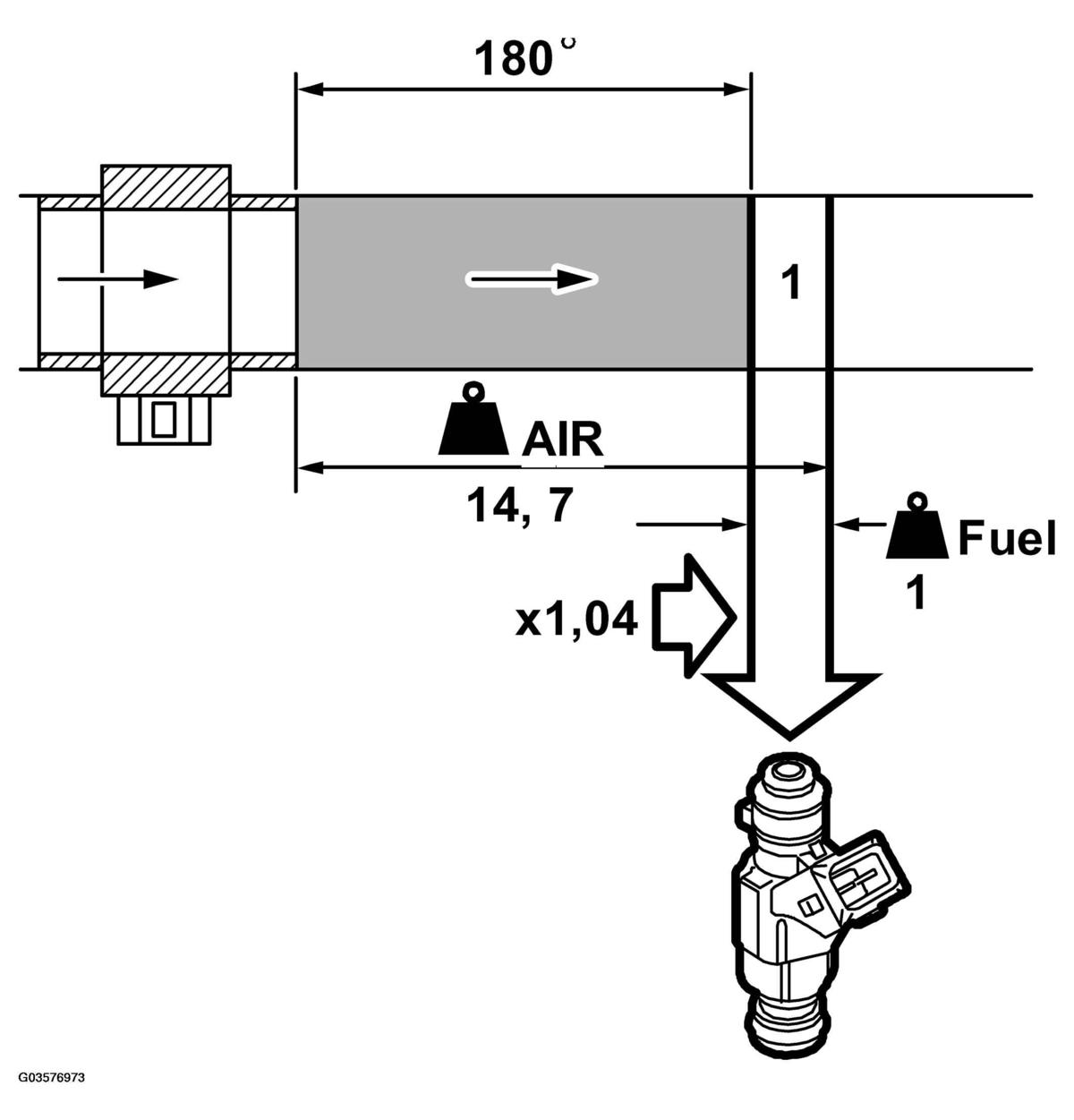

Fig 1: Identifying Workflow Diagram - Mass Air Flow Sensor (Full-Load Enrichment)
G03576973Courtesy of SAAB-SCANIA OF AMERICA, INC.

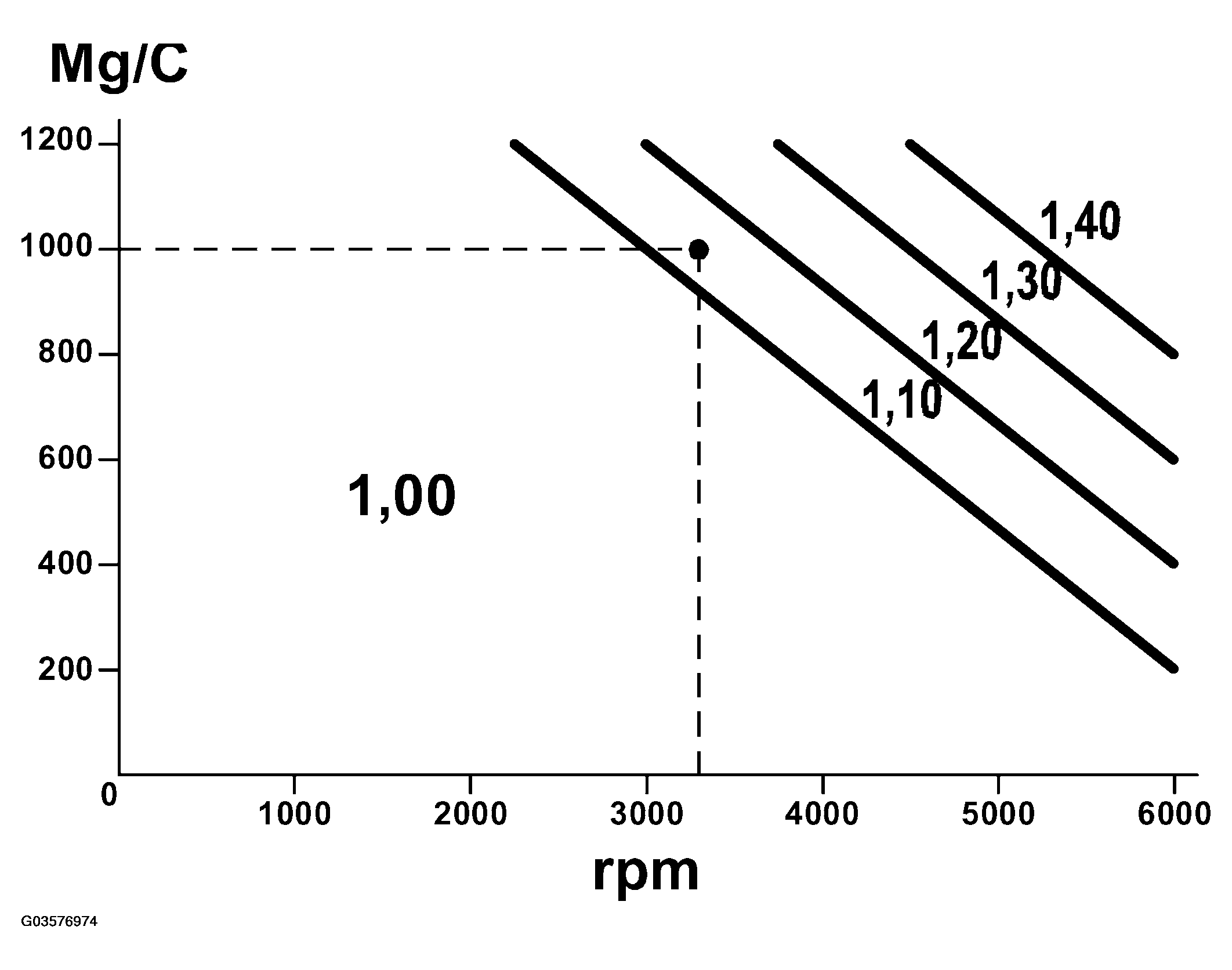

Fig 2: Correction Factor Graph (Full-Load Enrichment)
G03576974Courtesy of SAAB-SCANIA OF AMERICA, INC.

When the engine load and speed has reached a certain limit, the correction factor will gradually increase as the load or engine speed increases further. At the same time, the closed loop will be de-activated (if it was active) as it would otherwise counter-compensate. This is to ensure that all the air is consumed during combustion and to keep the combustion temperature under control. The result is increased engine torque and decreased thermal load.
