Vehicle speed limitation

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

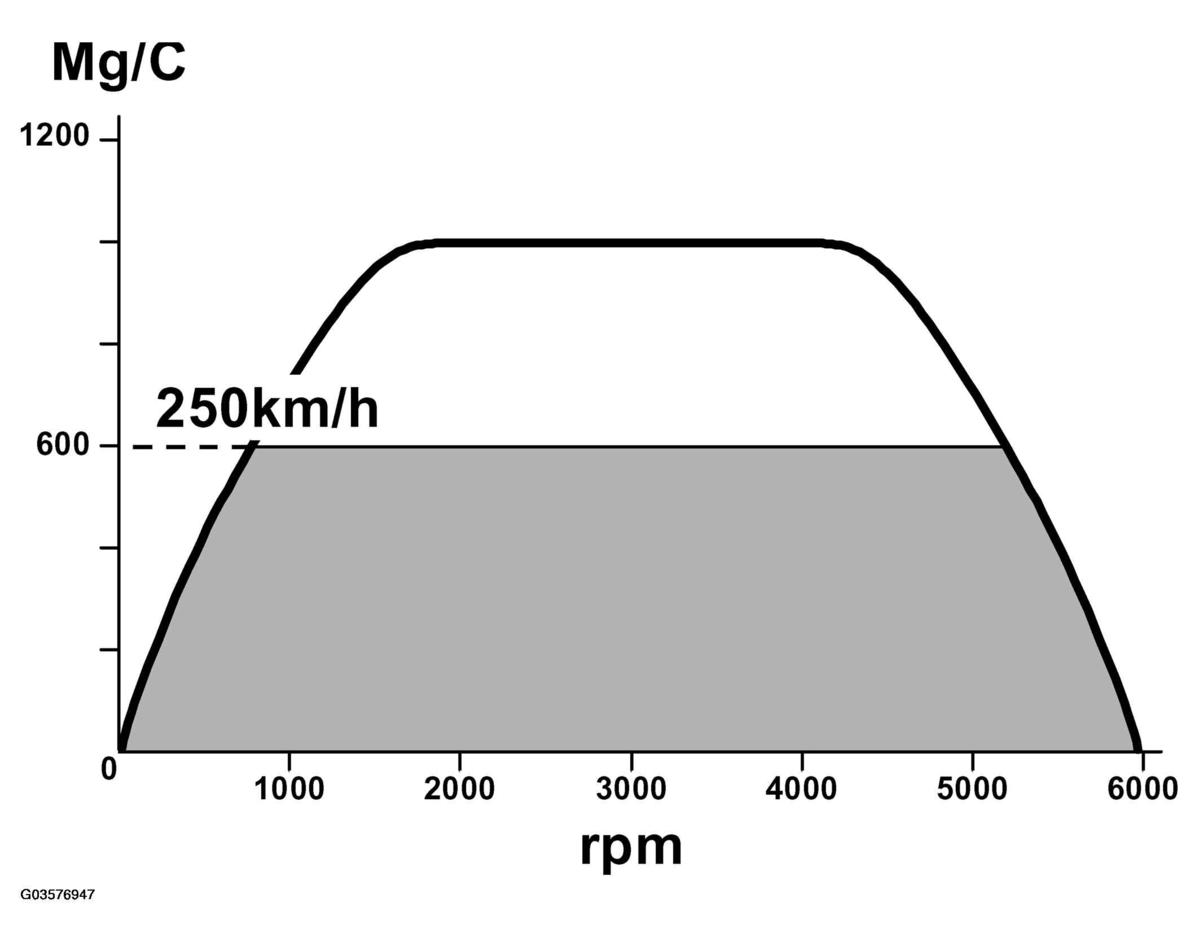

Fig 1: Vehicle Speed Limitation Graph
G03576947Courtesy of SAAB-SCANIA OF AMERICA, INC.

When the vehicle speed reaches the set max. value, see below, the engine torque is limited due to the fact that the maximum allowed air mass/combustion is limited.

For B235R the vehicle speed is limited to max. 250 km/h.

Vehicle speed for B205E,L,R is limited to 240 km/h.
