Relay, fuel pump (102)
WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - FUEL PUMP RELAY

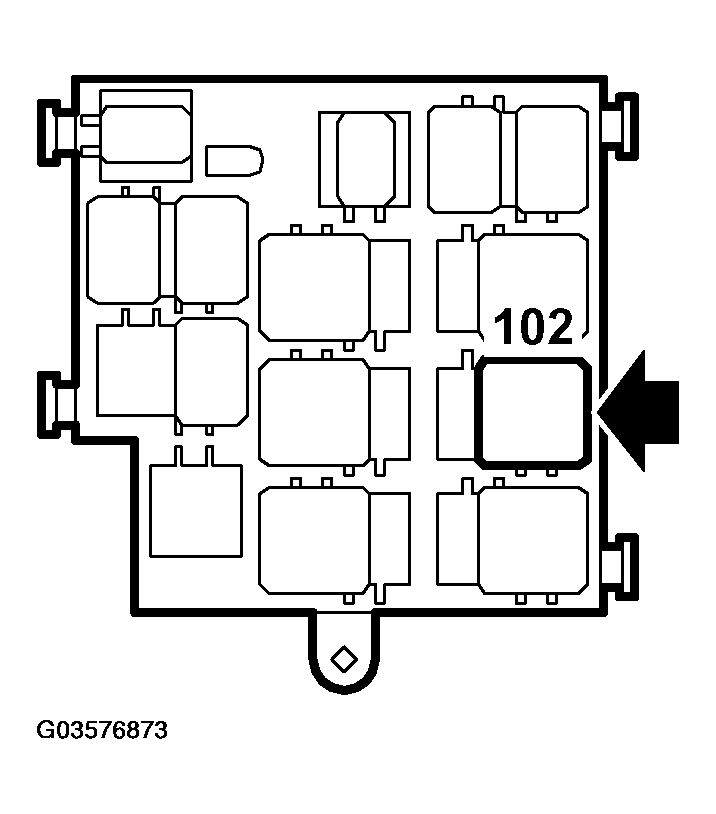

| Location |
|
In dashboard main relay board |
| Resistance, winding at 20°C (68°F) |
Ohms |
85+/-5 |
| Nominal control voltage |
V |
12 |
| Rated current |
A |
30 |
