Injectors (206)
WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

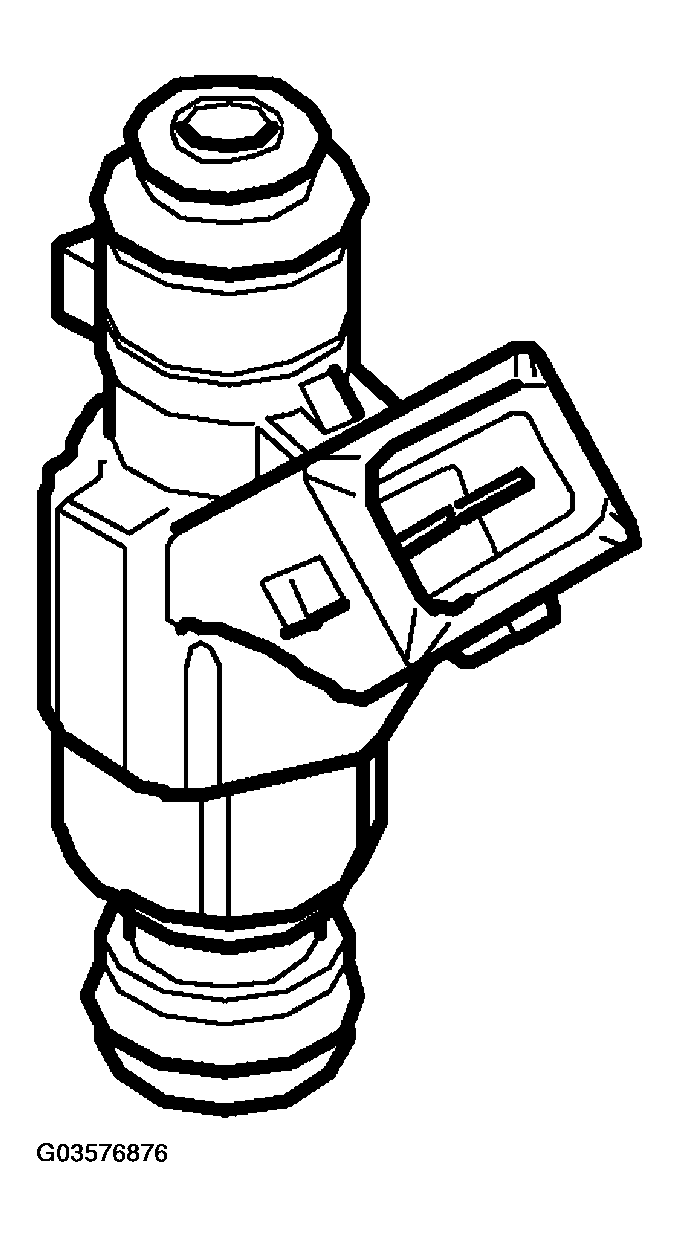

Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - INJECTOR
| Location |
|
On top of intake manifold |
| Engine type |
|
B205E/L/R, B235R |
| Type |
|
Bosch EV6E, brown |
| Version |
|
4-hole |
| Flow capacity |
ml/ 30 s |
176 +/- 10 |
| Maximum permissible difference between injectors |
ml |
20 |
