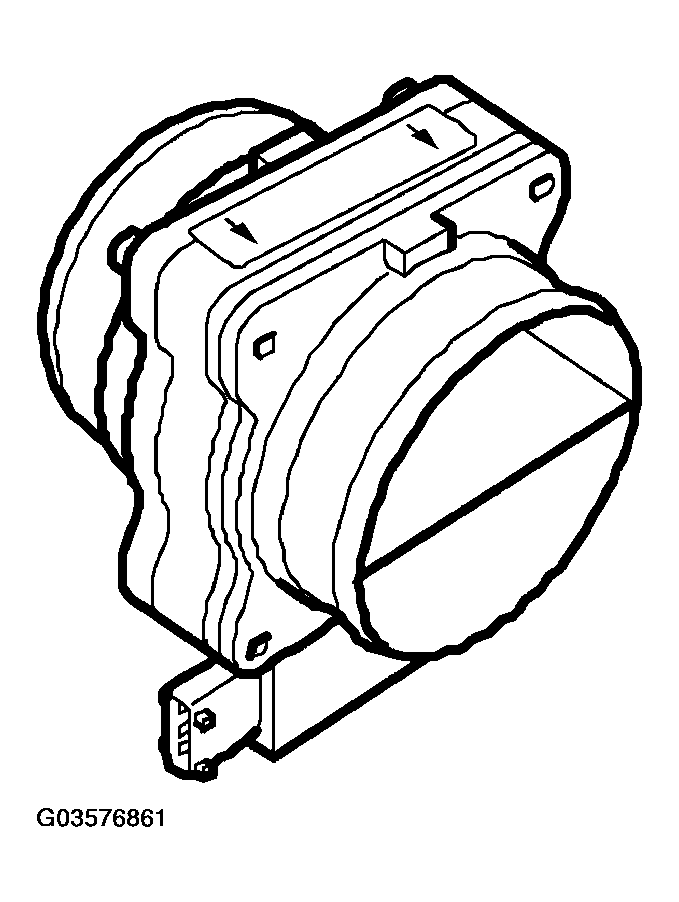

Mass air flow sensor (205)
WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL DATA - MASS AIR FLOW SENSOR
| Location | In connection to air filter |
| Type | Thermal resistor, the temperature of which is maintained at 220°C above air temperature. |

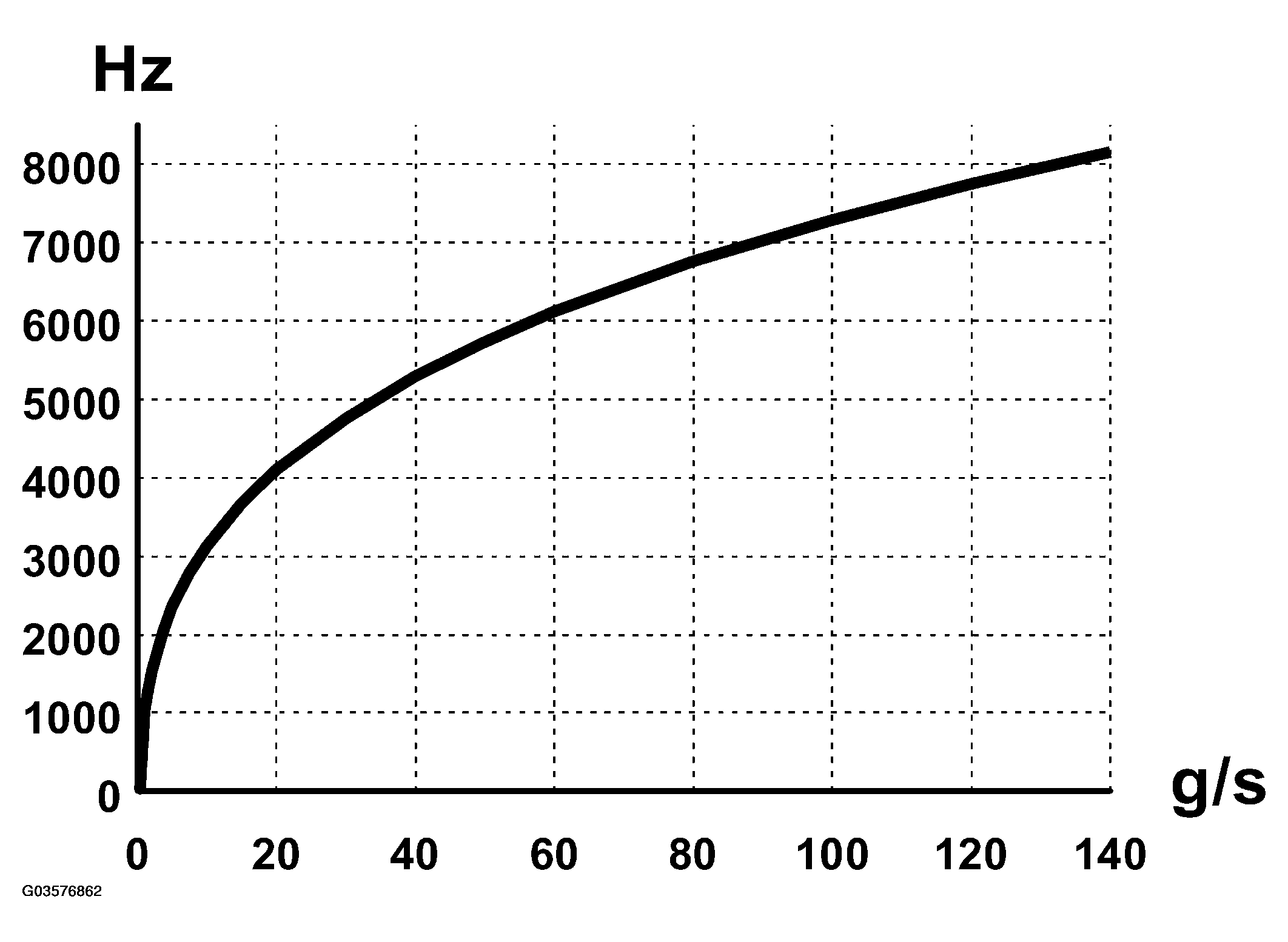

| Air flow (g/s) | Hz |
| 0 | 100--300 |
| 1 | 1045 |
| 1.5 | 1312 |
| 2 | 1527 |
| 3.5 | 2012 |
| 5 | 2355 |
| 7.5 | 2788 |
| 10 | 3134 |
| 15 | 3678 |
| 20 | 4095 |
| 30 | 4764 |
| 40 | 5289 |
| 50 | 5730 |
| 60 | 6114 |
| 80 | 6753 |
| 100 | 7286 |
| 120 | 7743 |
| 140 | 8158 |
