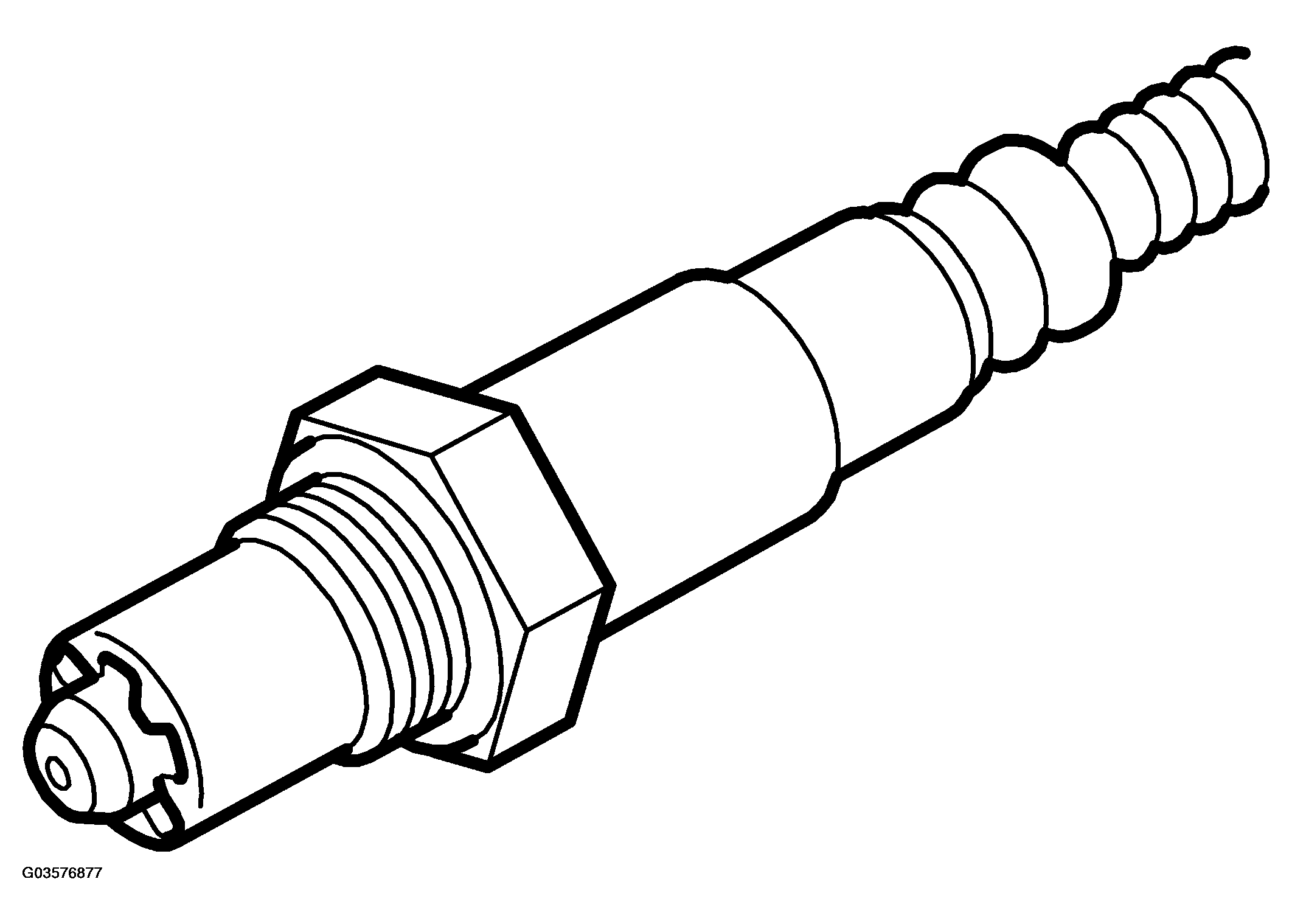

Heated oxygen sensor 1, before catalytic converter (592Fa)
WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL DATA - HEATED OXYGEN SENSOR 1
| Location | In front of catalytic converter | |
| Type | Bosch LSF 4.7 With electric preheating | |
| Rating, pre-heating | W | approx. 7 |
| Control range | V | 0--1 |
| Resistance at 20°C (68°F) pins 1- 2 | Ohms | approx. 9 |
Pins 3 and 4 are gold-plated.
NOTE:
The connector must not be treated with any kind of contact cleaner.
