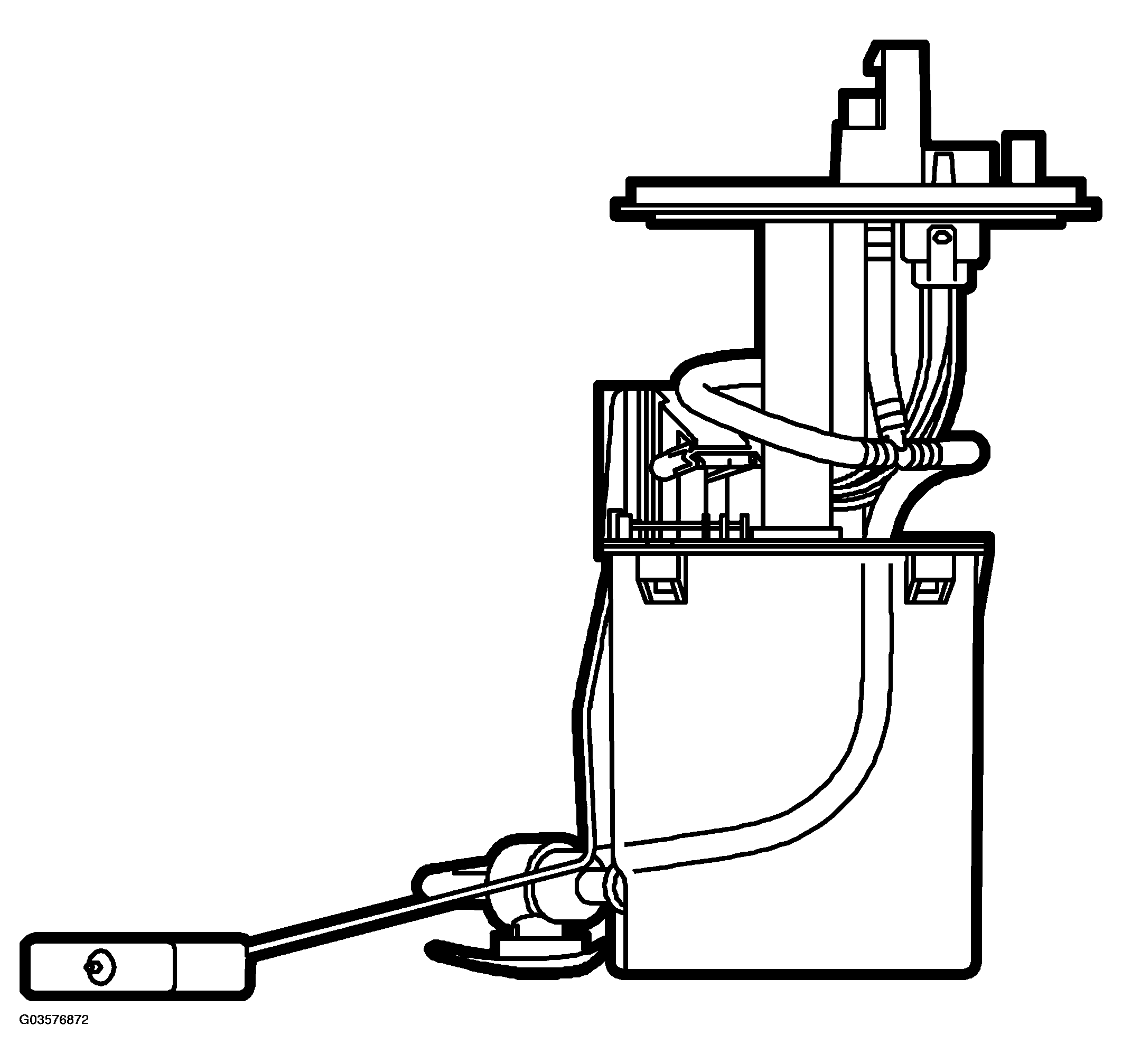

Fuel pump (323)
WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - FUEL PUMP
| Location |
|
In fuel tank under rear seat |
| Capacity at 3.0 bar back pressure |
ml/30 s |
min 700 |
| Resistance, level sensor |
Ohms |
Empty tank: 60+/-2.6 Full tank: 370+/-6.0 |
| Tightening torque, screw cap |
N.m (lbf ft) |
75 (55) |
