Charge air control valve (179a
WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

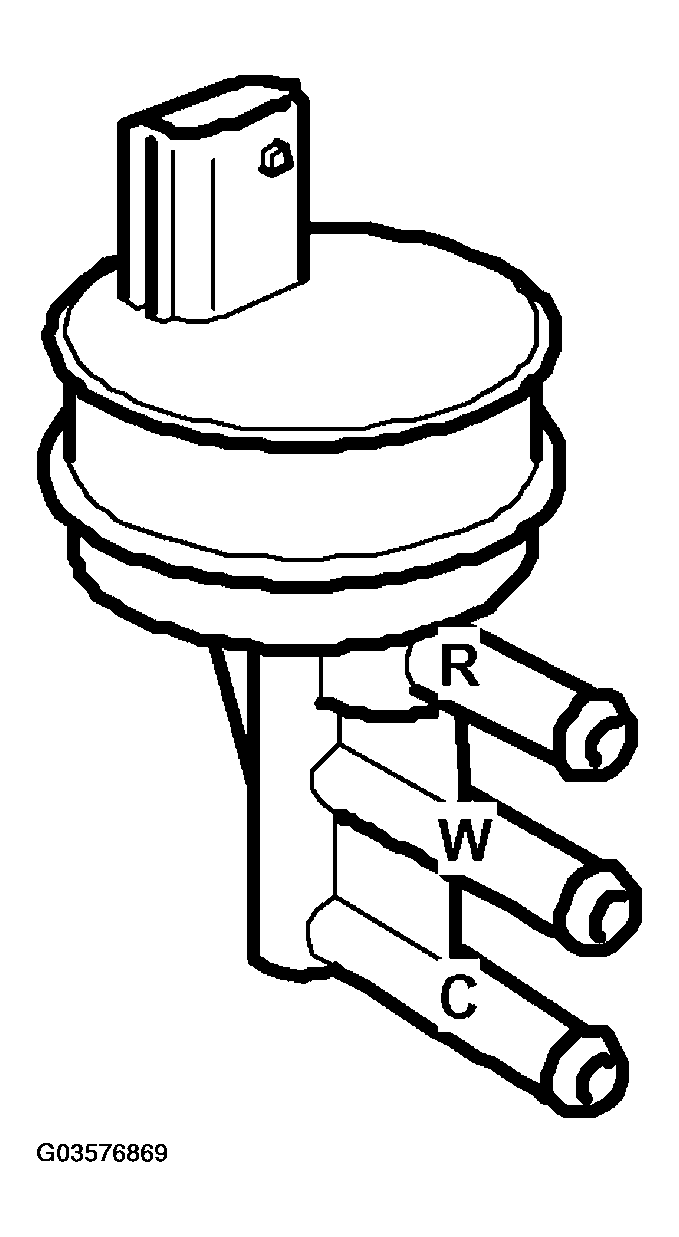

Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - CHARGE AIR CONTROL VALVE
| Location |
|
To right of radiator |
| Characteristics |
|
R zero current closed. C and W are always open and connected to each other. |
| Number of windings |
|
1 |
| Resistance at 20°C (68°F) |
Ohms |
8+/-1 |
| Control voltage |
12 V PWM |
32 Hz |
