DTC P1444: Canister Close Valve Circuit. Open/Short to Ground.: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

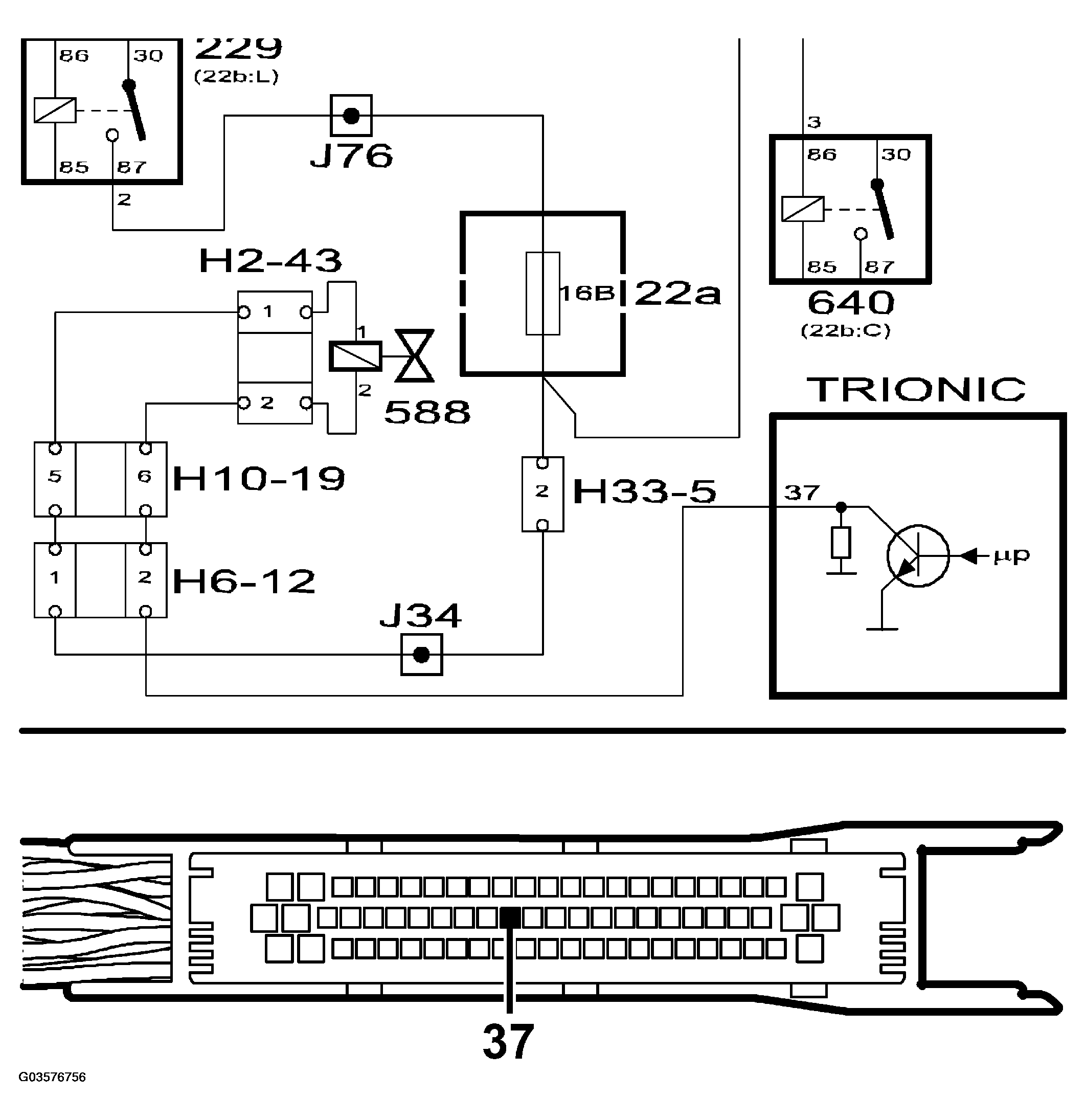

Fig 1: Canister Close Valve Circuit Diagram - Open/Short To Ground
G03576756Courtesy of SAAB-SCANIA OF AMERICA, INC.
