Position sensor, crankshaft (345): PSG16

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

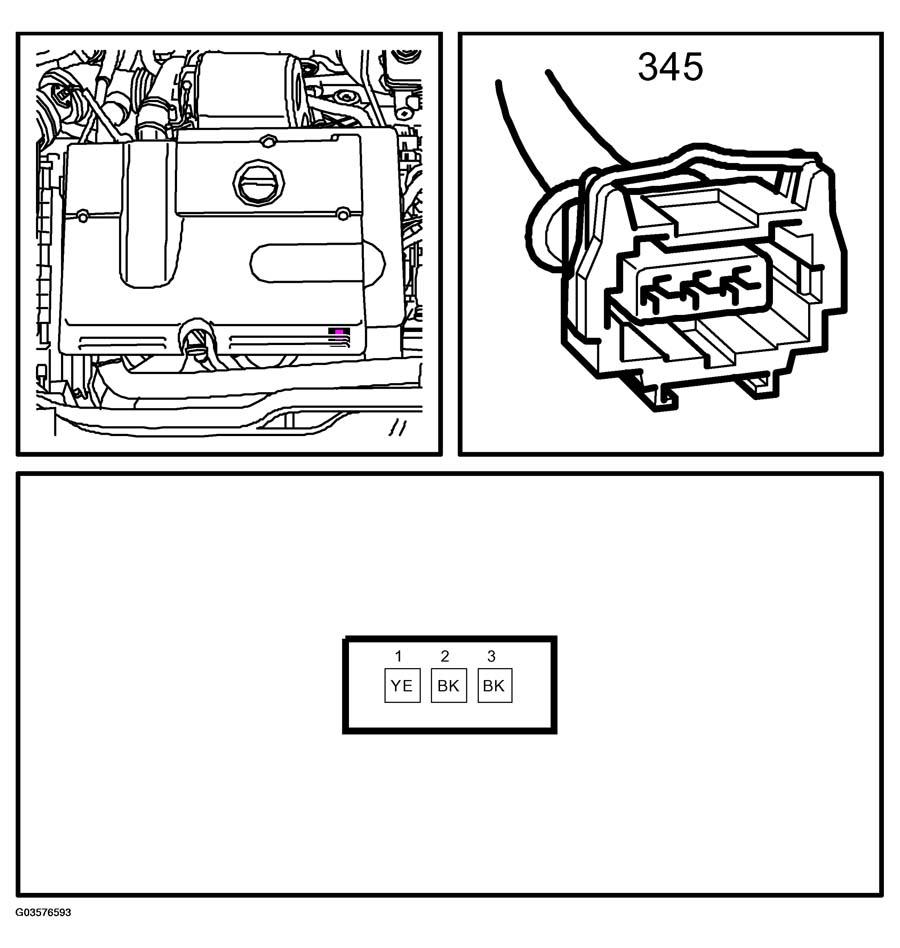

Fig 1: Identifying Crankshaft Position Sensor Connector Pinouts - PSG16
G03576593Courtesy of SAAB-SCANIA OF AMERICA, INC.
