Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis >> External Pages >> Different car >> Section 9 (TRIONIC T7 Fuel Control System) >> Component Location >> Crimp J34, T7 engine harness

Crimp J34, T7 engine harness

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

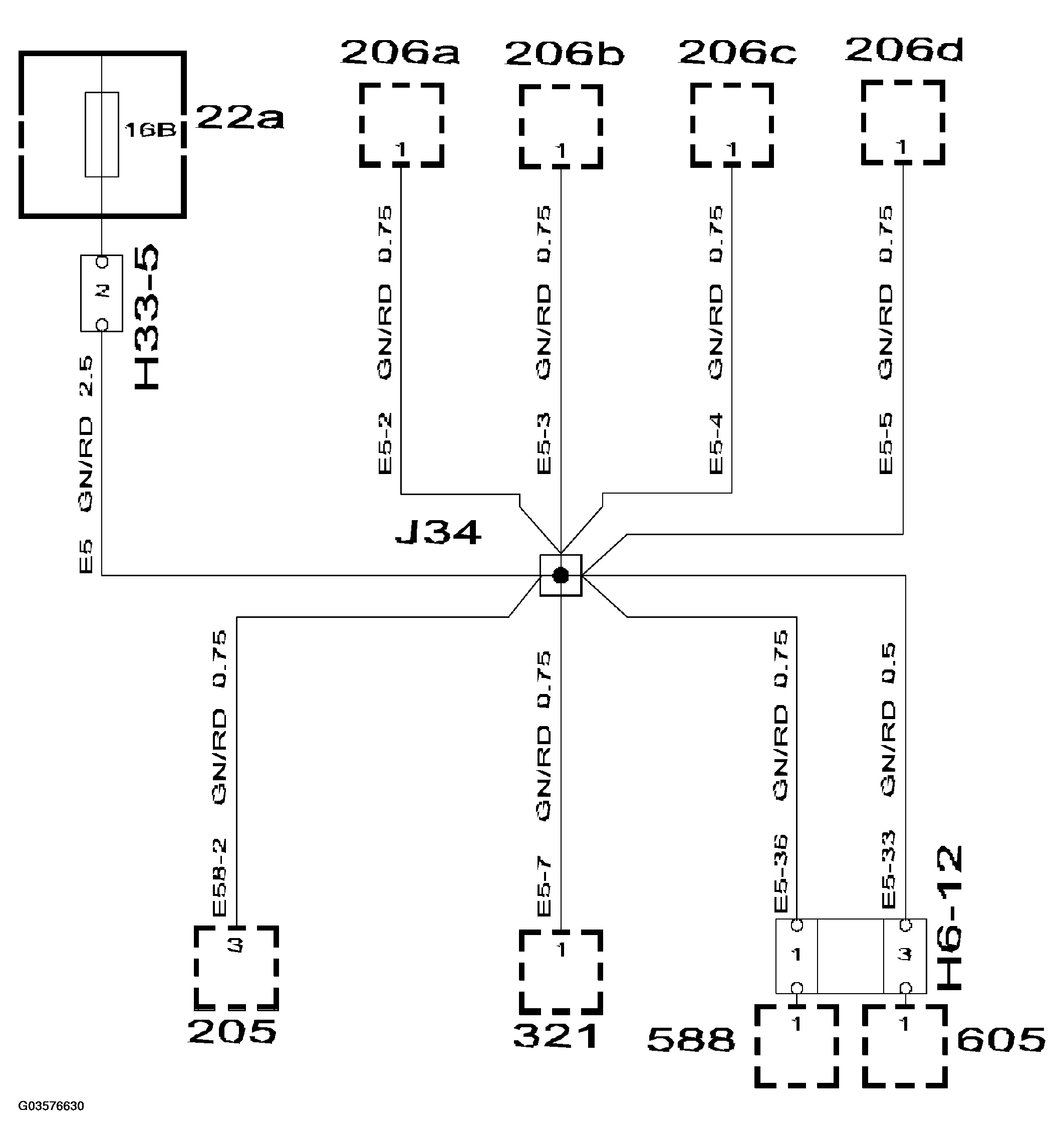

Fig 1: Identifying Crimp J34 T7 Engine Harness
G03576630Courtesy of SAAB-SCANIA OF AMERICA, INC.
