Connector H33-5: LHD

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

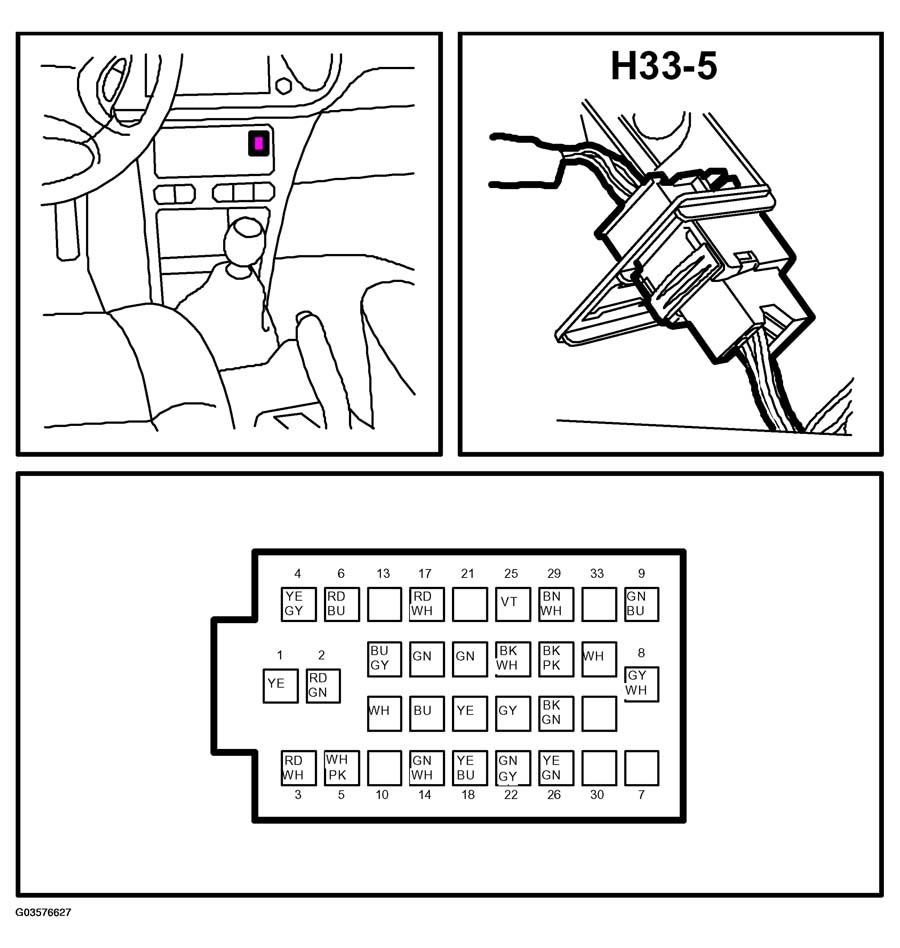

Fig 1: Identifying H33-5 Connector Pinouts (LHD)
G03576627Courtesy of SAAB-SCANIA OF AMERICA, INC.
