Actuator, throttle body (604)

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

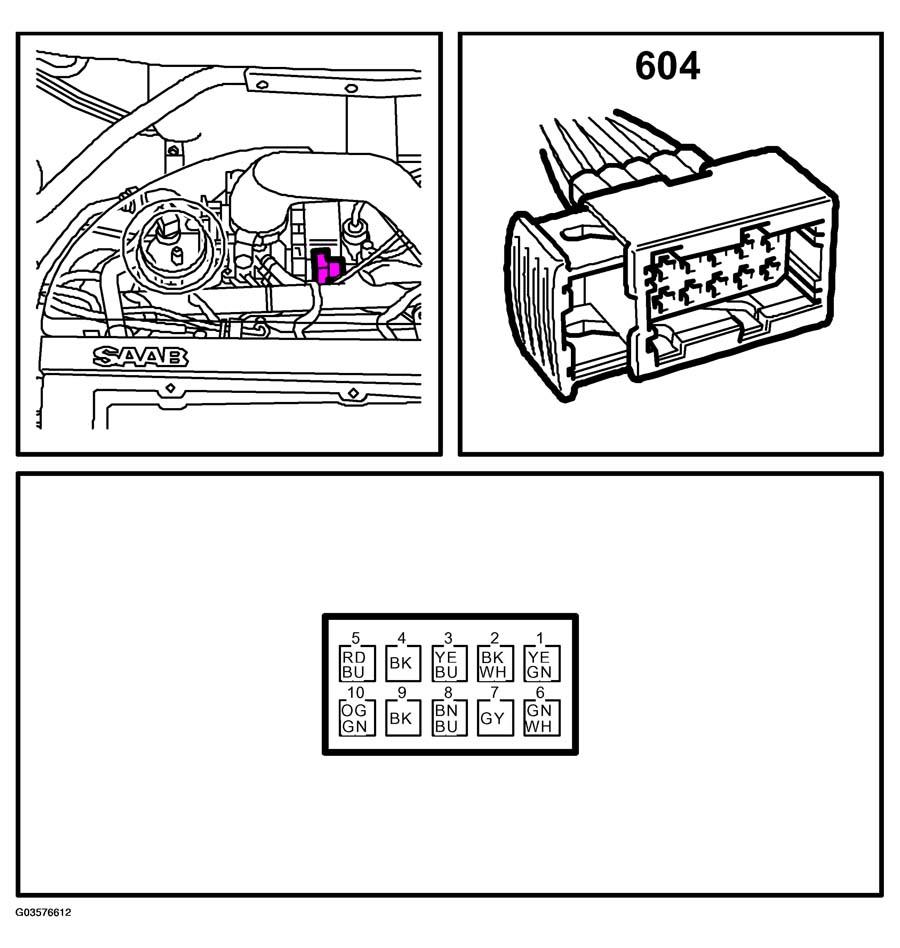

Fig 1: Identifying Throttle Body Actuator - Connector Pinouts
G03576612Courtesy of SAAB-SCANIA OF AMERICA, INC.
