To remove

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unplug the two pin connector from the control valve.

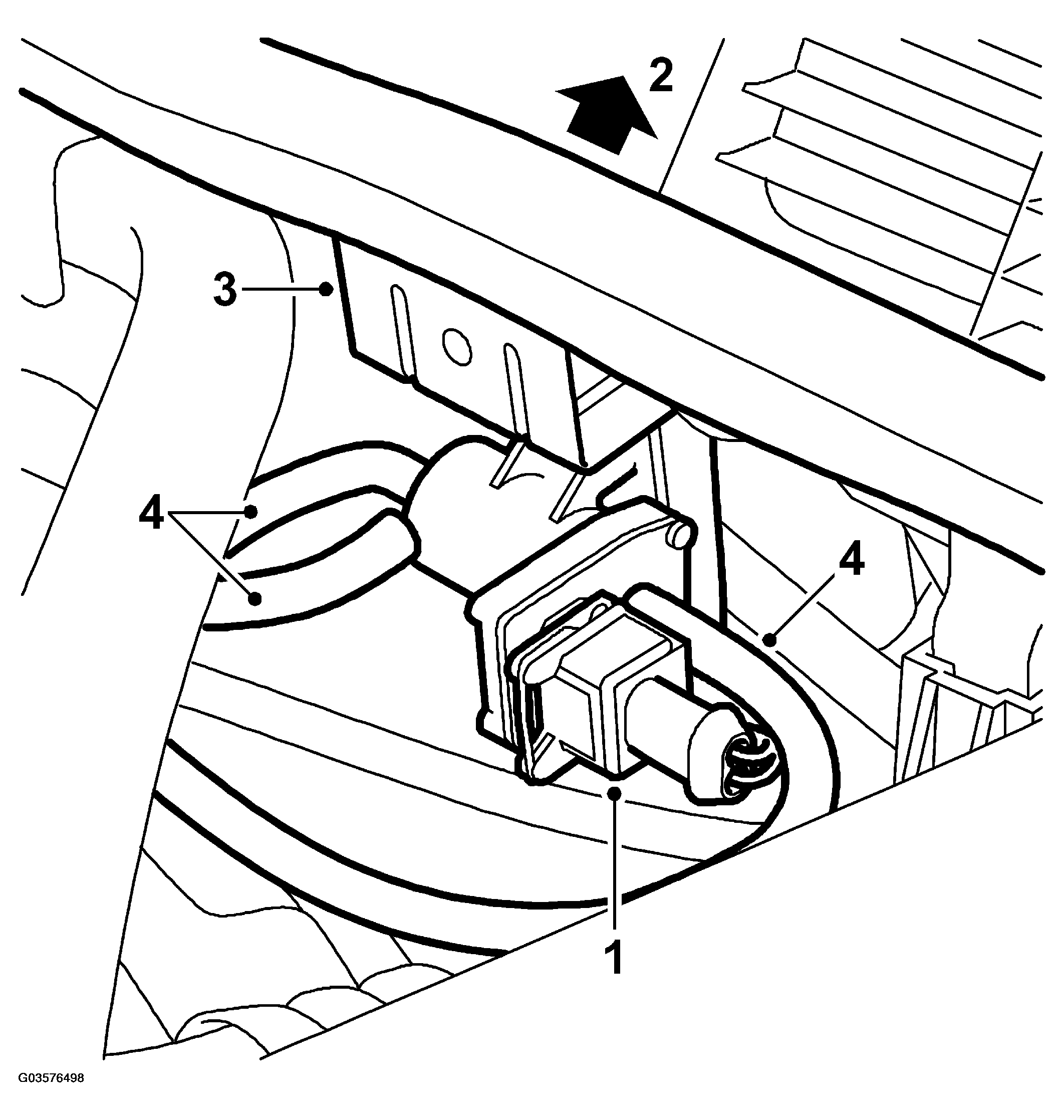

    Fig 1: Illustration For Steps 1-4
    G03576498Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fold up the bonnet sealing strip by the control valve mounting plate.
  3. Carefully pull out the mounting plate and unhook it from edge of the bulkhead. Lift up the unit.
  4. Mark the vacuum hoses and detach them from the valve.
  5. Drill out the pop rivets securing the control valve to the mounting plate.

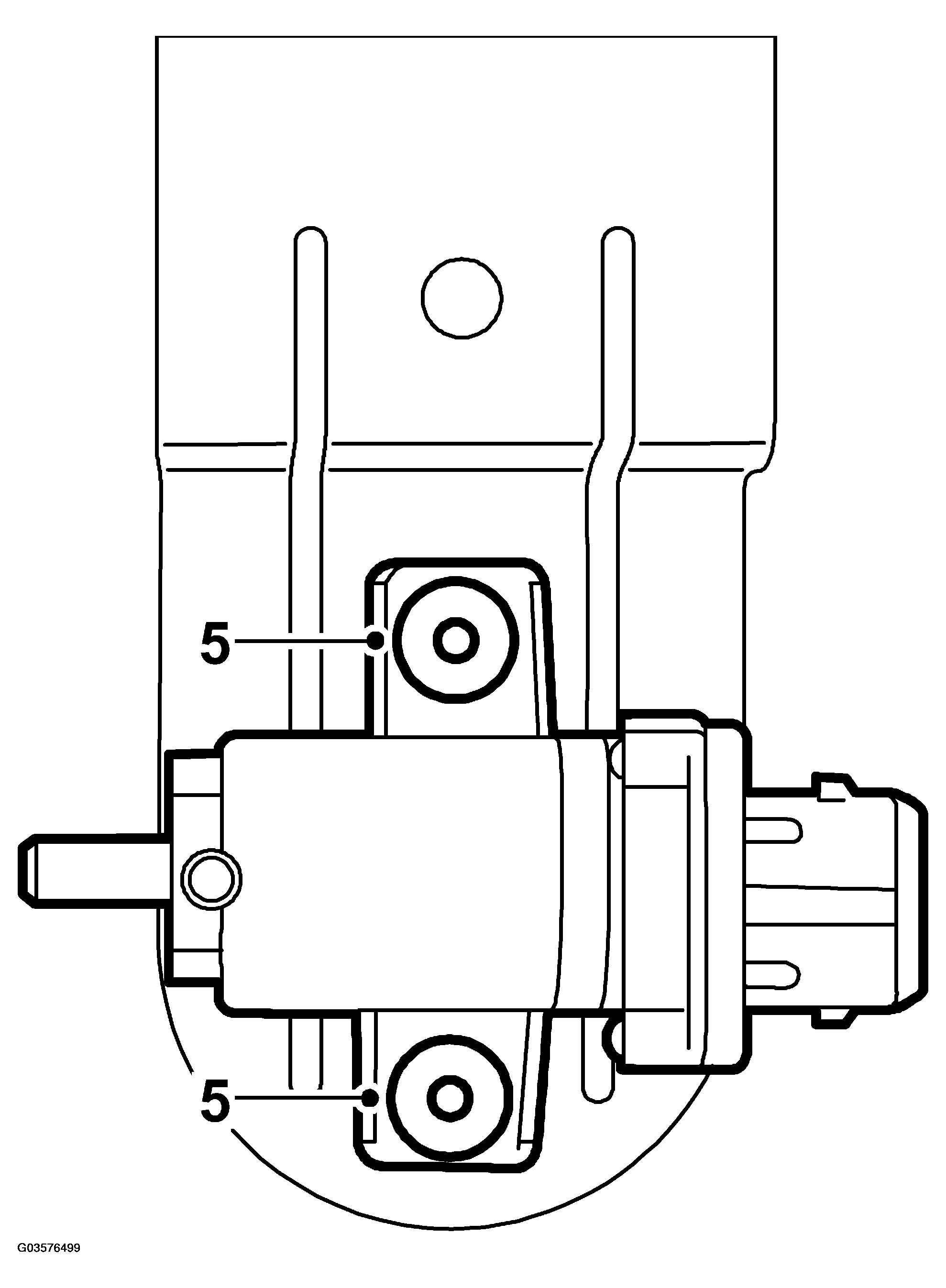

    Fig 2: Illustration For Step 5
    G03576499Courtesy of SAAB-SCANIA OF AMERICA, INC.
