To fit

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

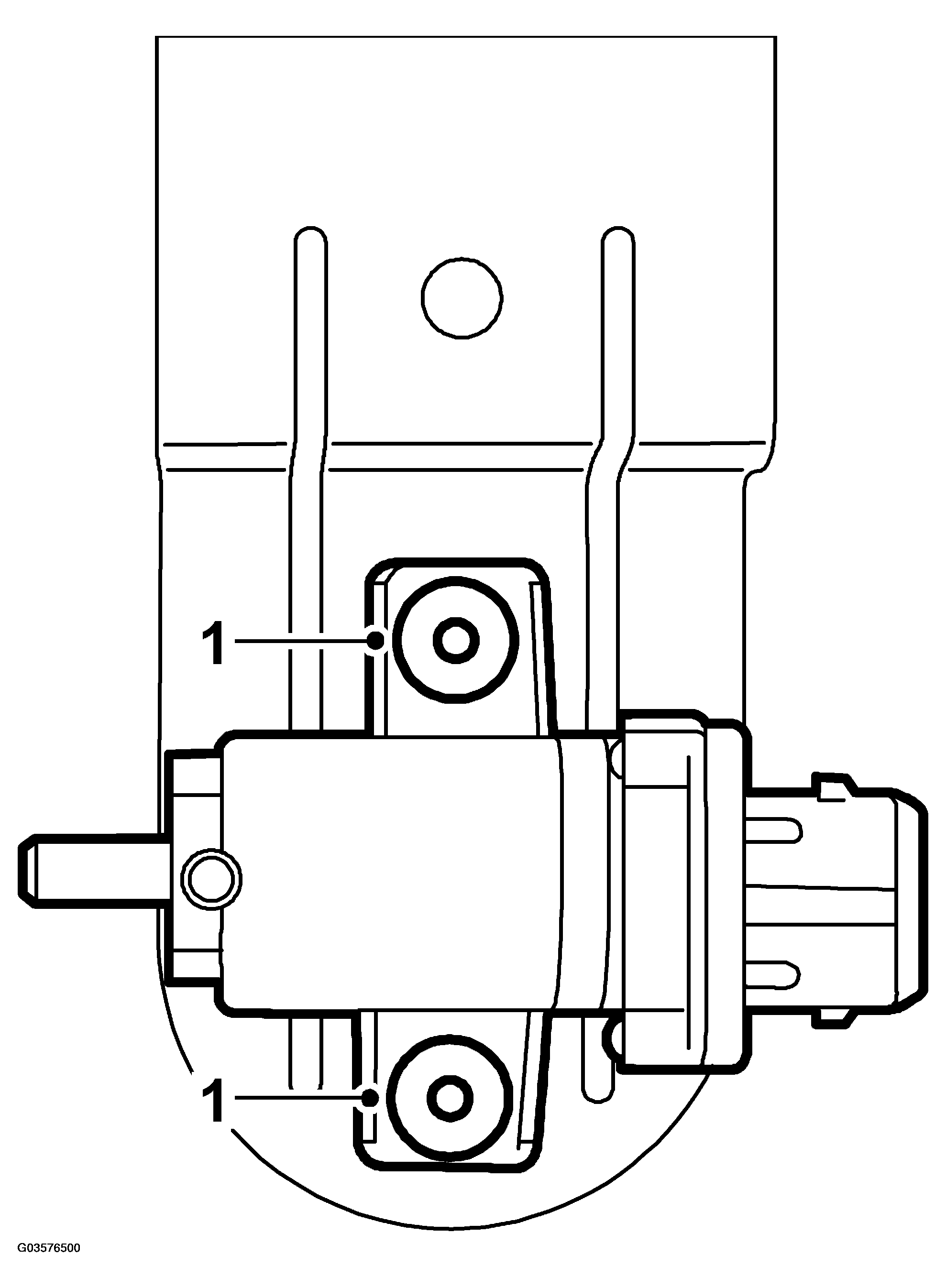

Fig 1: Illustration For Step 1
G03576500Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit a new valve to the mounting plate with pop rivets.
  2. Connect the vacuum hoses to the valve.

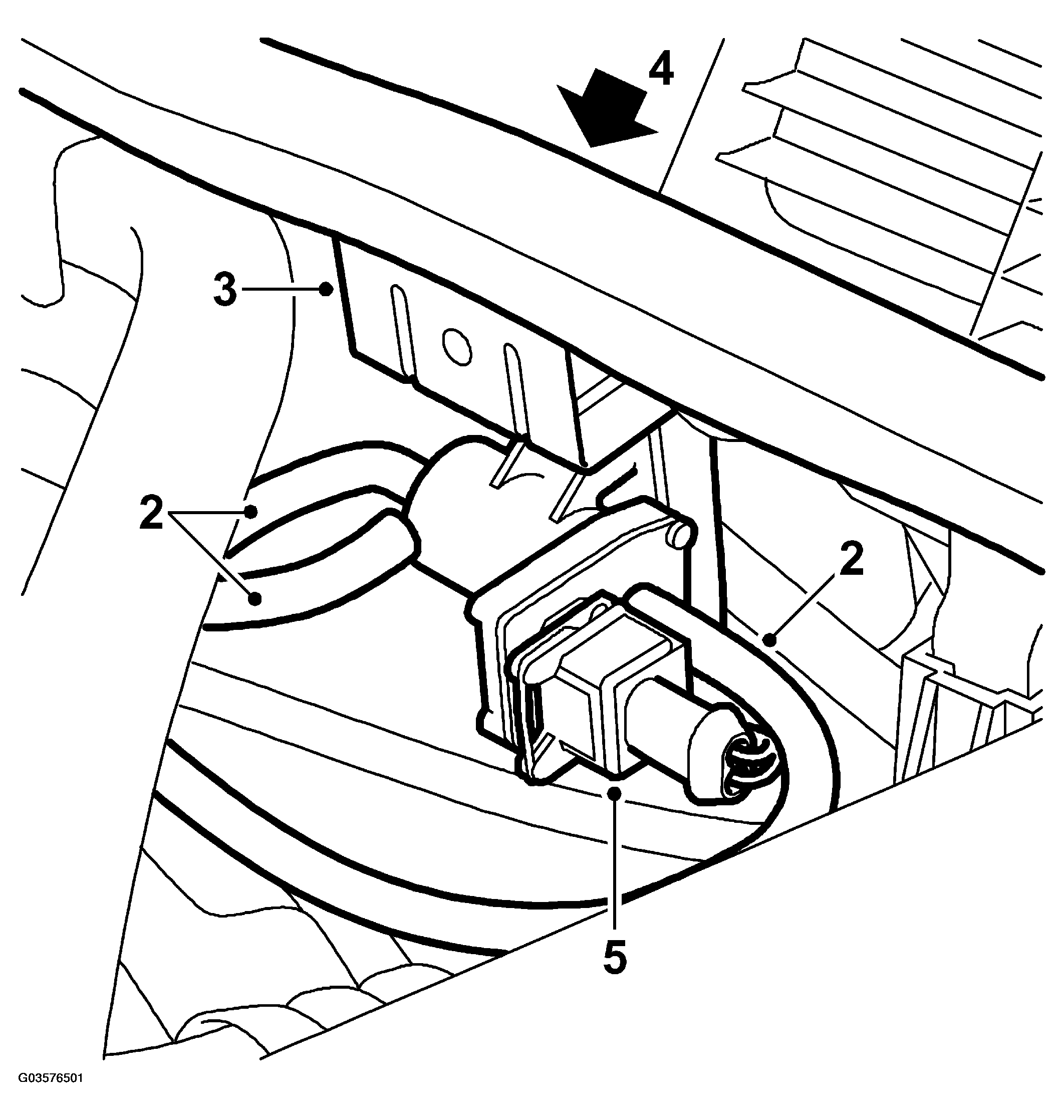

    Fig 2: Illustration For Steps 2-5
    G03576501Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the mounting plate.
  4. Fit the bonnet sealing strip.
  5. Spray the two pin connector with Kontakt 61 (part no. 30 04 520) and plug it into the control valve.
