To fit

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Illustration For Steps 1-2
G03576481Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Position the switch.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520) and plug it in.
  3. Fit the covers. Pay attention to the catch on the covers.

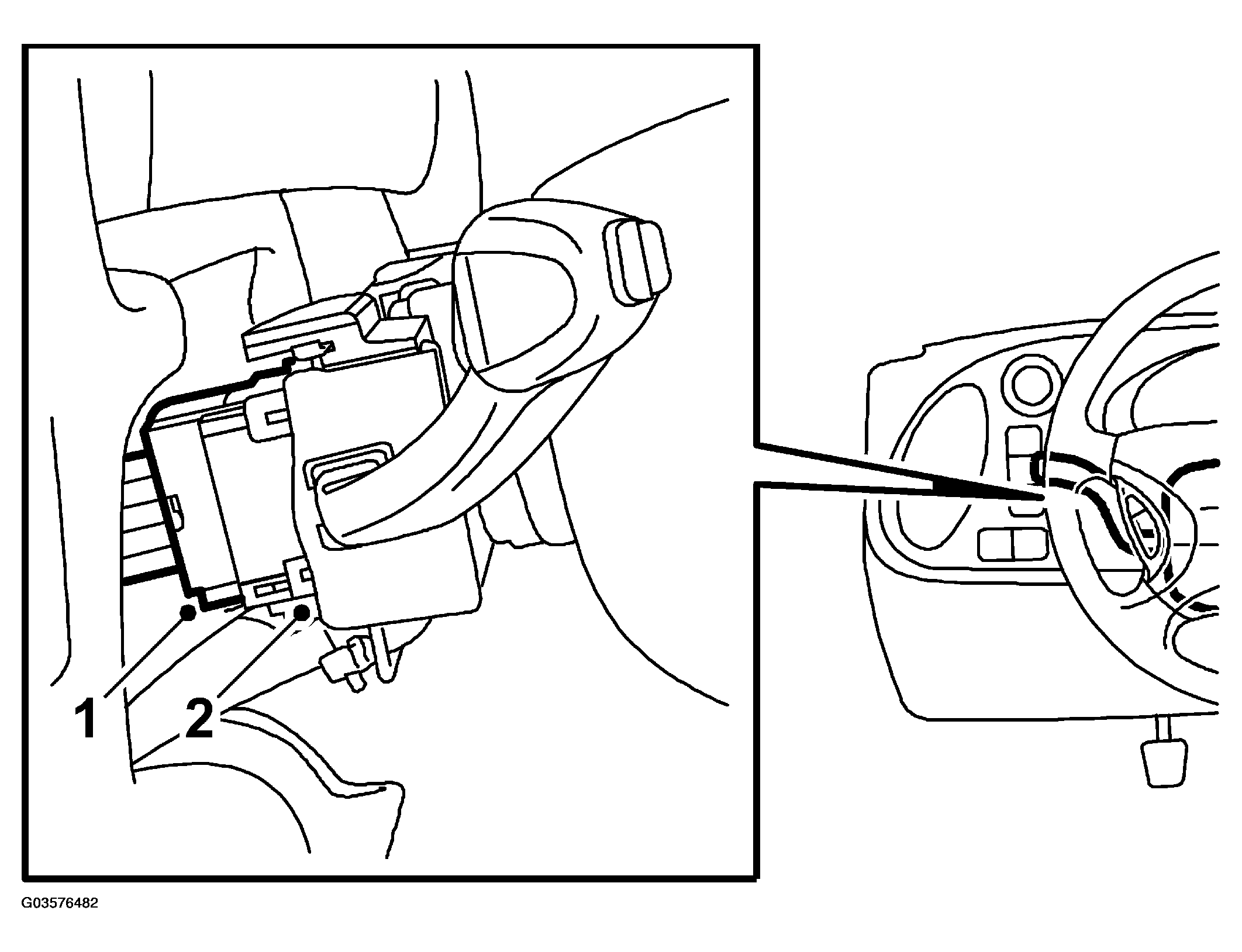

    Fig 2: Illustration For Steps 1-2
    G03576482Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Adjust the cover on the steering column bearing bracket and tighten it.
  5. Readjust the steering wheel.
