To fit

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

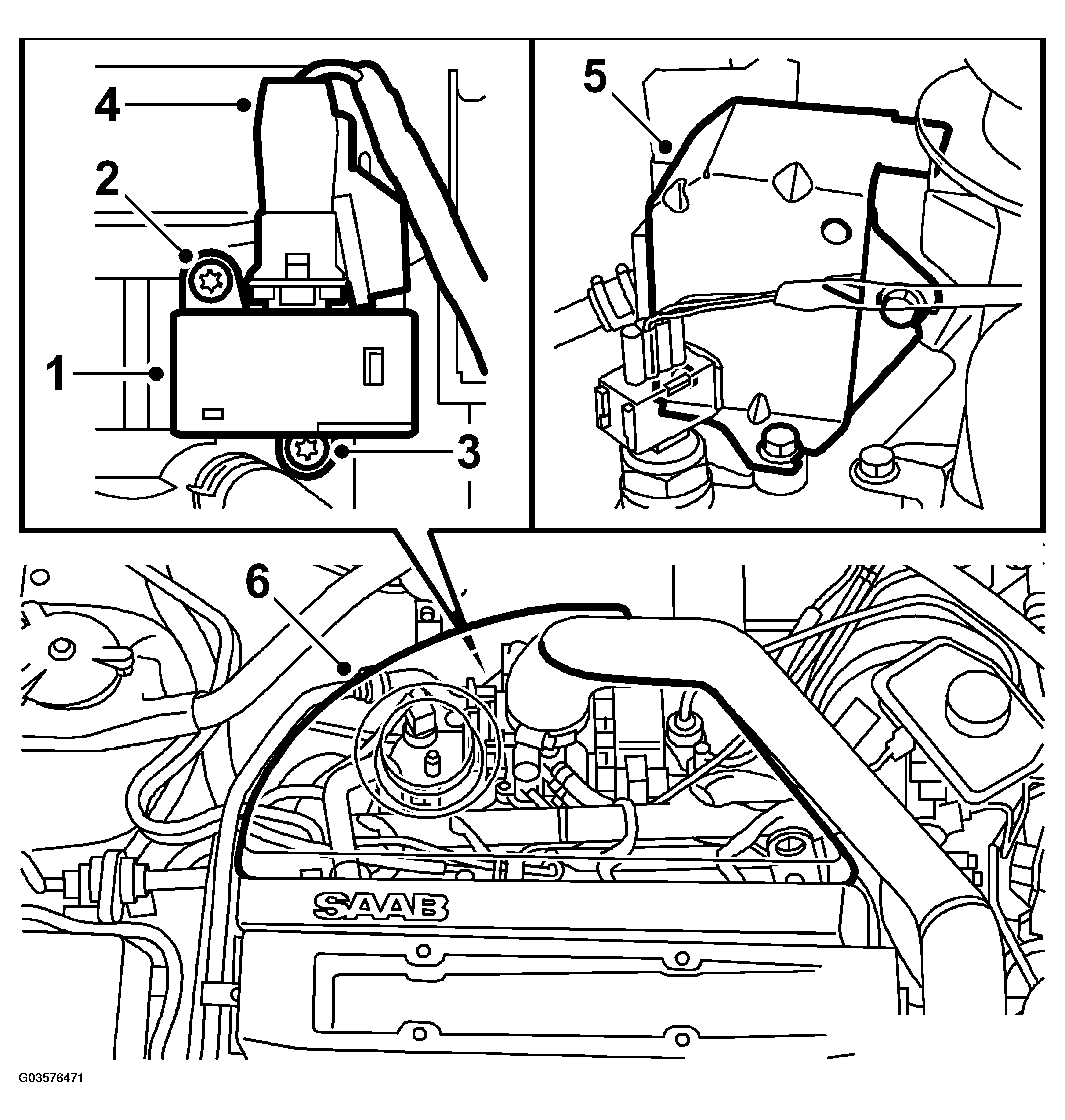

Fig 1: Illustration For Steps 1-6
G03576471Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the solenoid.
  2. Screw in the upper screw.
  3. Tighten the lower screw (it can be difficult to reach) using a magnetic T15 bit.
  4. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector and fit the rubber seal.
    IMPORTANT: When the limp home solenoid is removed, the throttle body will go into mechanical limp-home mode. Therefore, after fitting, the limp-home mechanism must be reset.
  5. Fit the cover on the throttle body pedal arm.
  6. Put the engine cover in place.
