To fit

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

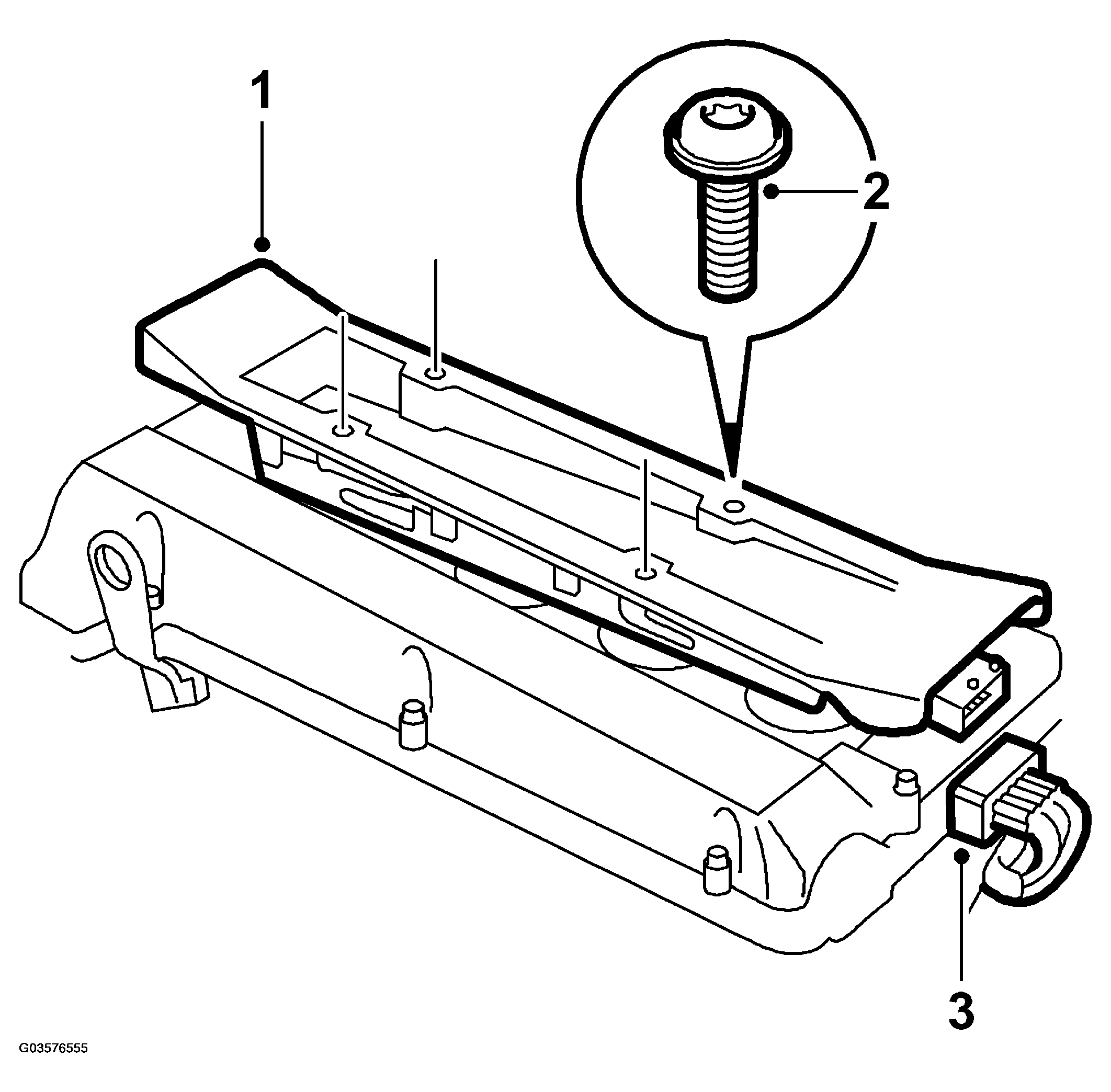

Fig 1: Illustration For Steps 1-3
G03576555Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Apply Krytox (part no. 30 19 312) to the rubber seals and fit the ignition discharge module.
  2. Fit the 4 screws.

    Tightening torque 11 N.m (8.1 lbf ft)

  3. Spray the 10-pin ignition discharge module connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
