To fit

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

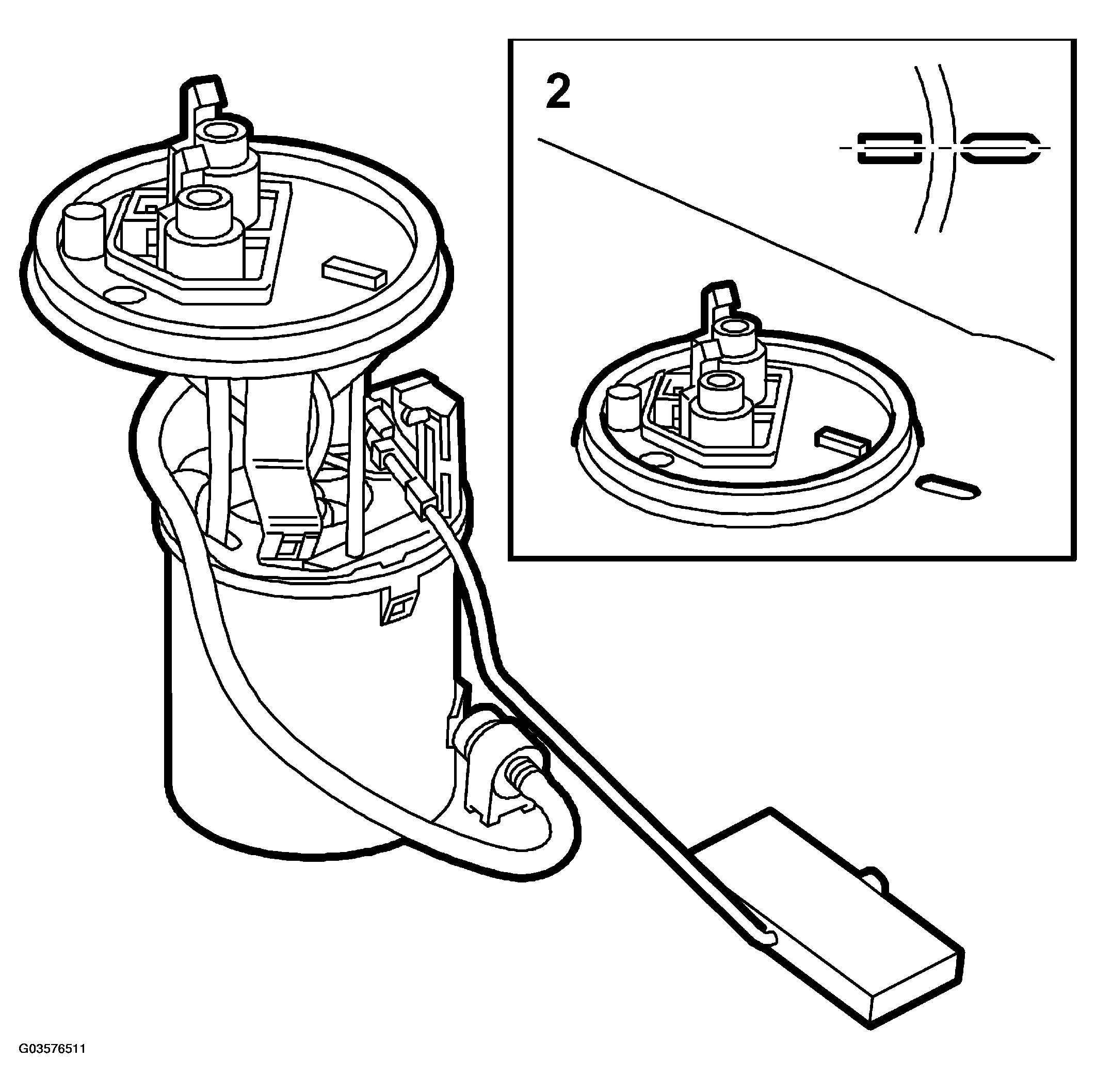

Fig 1: Illustration For Step 2
G03576511Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit a new O-ring in the groove in the tank. Apply a thin layer of vaseline part no. 30 06 665, or similar.
  2. Carefully insert the pump into its correct position. Make sure the index marks on the tank and the fuel pump are aligned.
  3. Fit the screw ring.

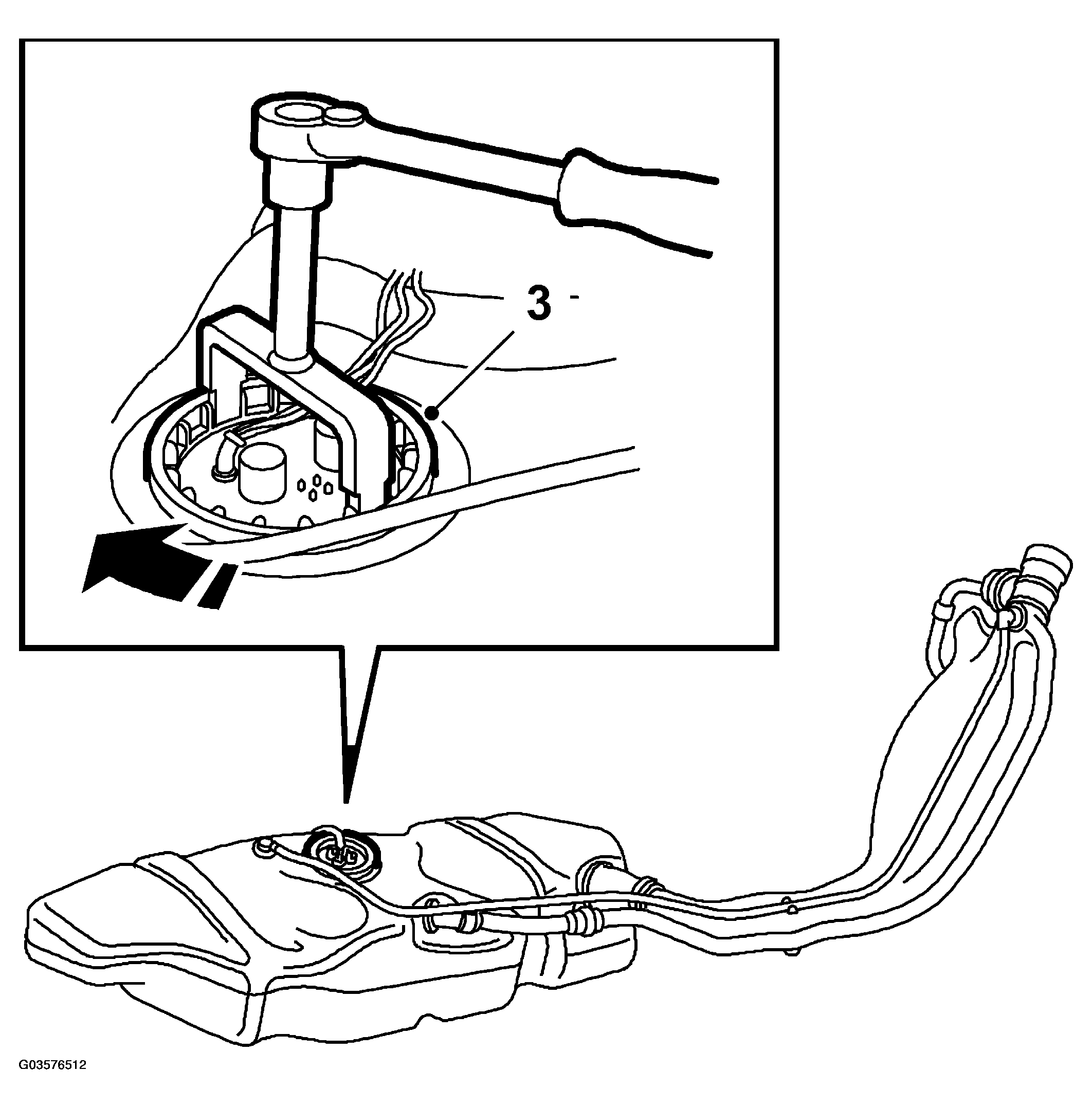

    Fig 2: Illustration For Step 3
    G03576512Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque: 75 N.m (55 lbf ft)

    IMPORTANT: Inspect the fuel-line O-rings and replace as necessary.
  4. Fit the tank, see TO FIT .
