To fit

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the sensor provisionally so that the cable runs along the water pipe. Change the O-ring if necessary and lubricate it with engine oil.

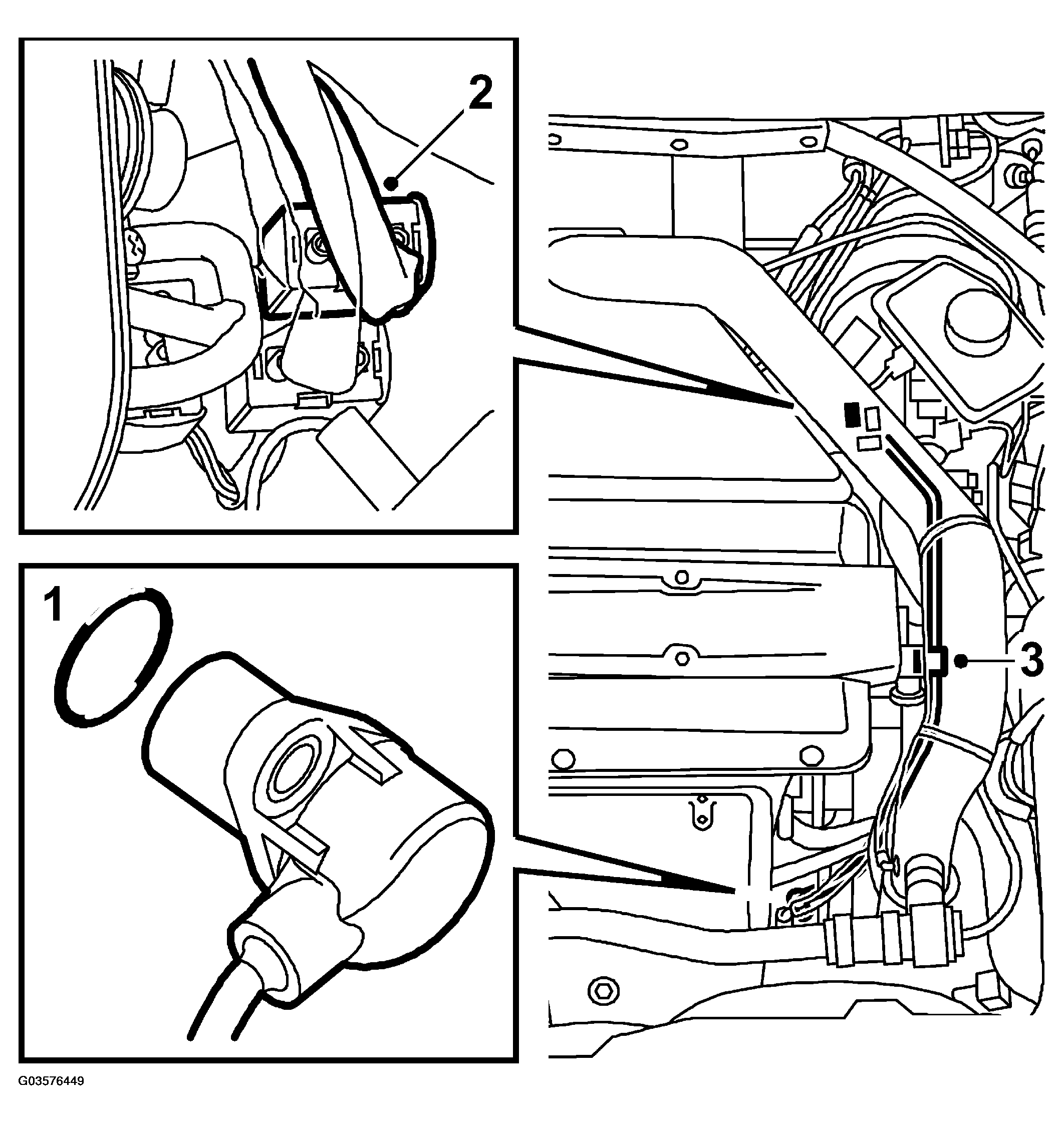

    Fig 1: Illustration For Steps 1-3
    G03576449Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520) and mount the connector to the holder. Plug in the connectors.
  3. Secure the cables with the clip. Take care not to pinch or damage the cable with the clip.
  4. Press in the sensor and screw it on with the O-ring fitted together with the heat shield. Make sure the O-ring is positioned correctly so that the sensor bottoms in the engine block. Otherwise, there is a risk of the sensor mounting lug breaking off.

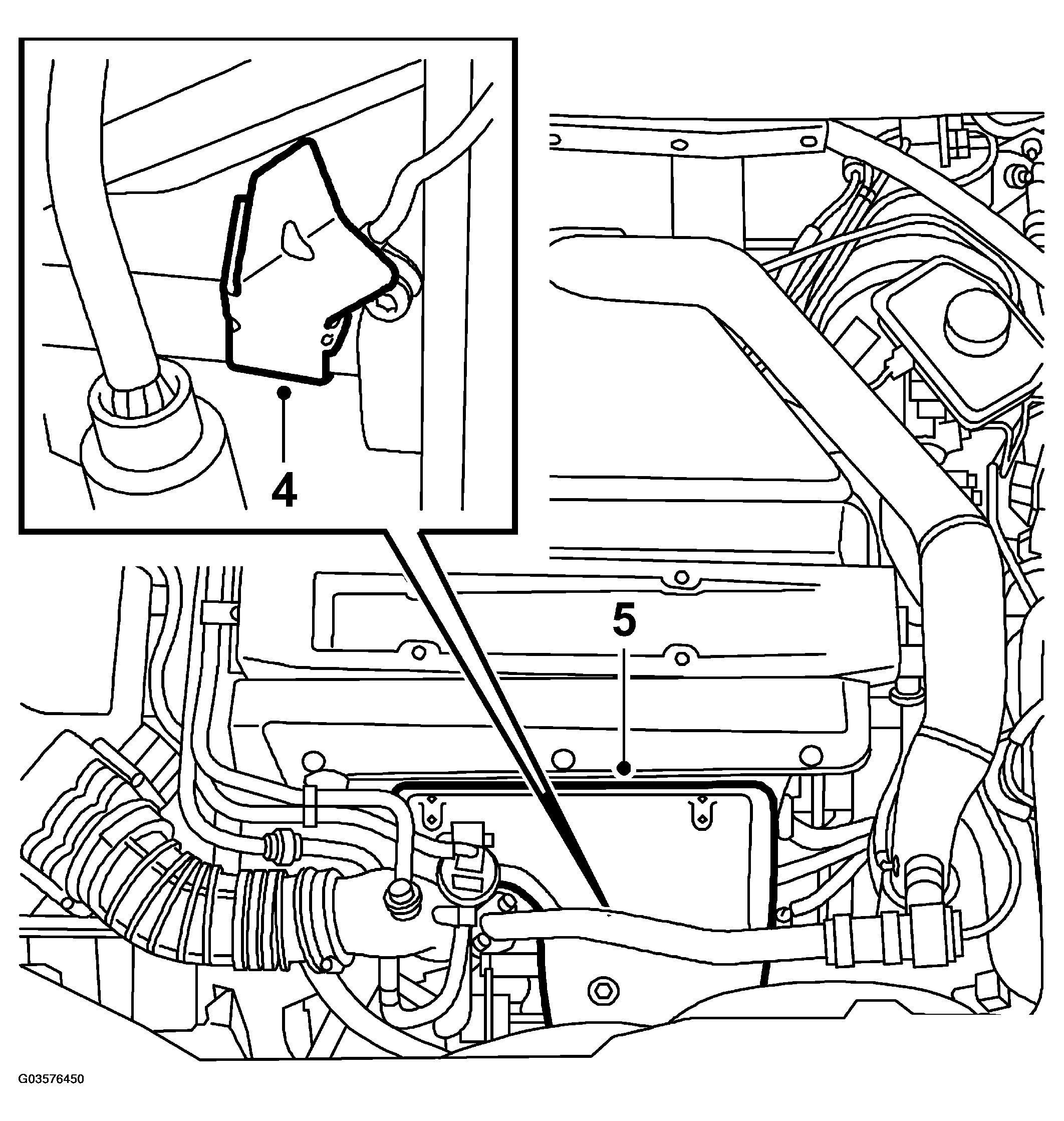

    Fig 2: Illustration For Steps 4-5
    G03576450Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the heat shield and bypass pipe with valve.
  6. Start the engine and check for oil leaks.
