To fit

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

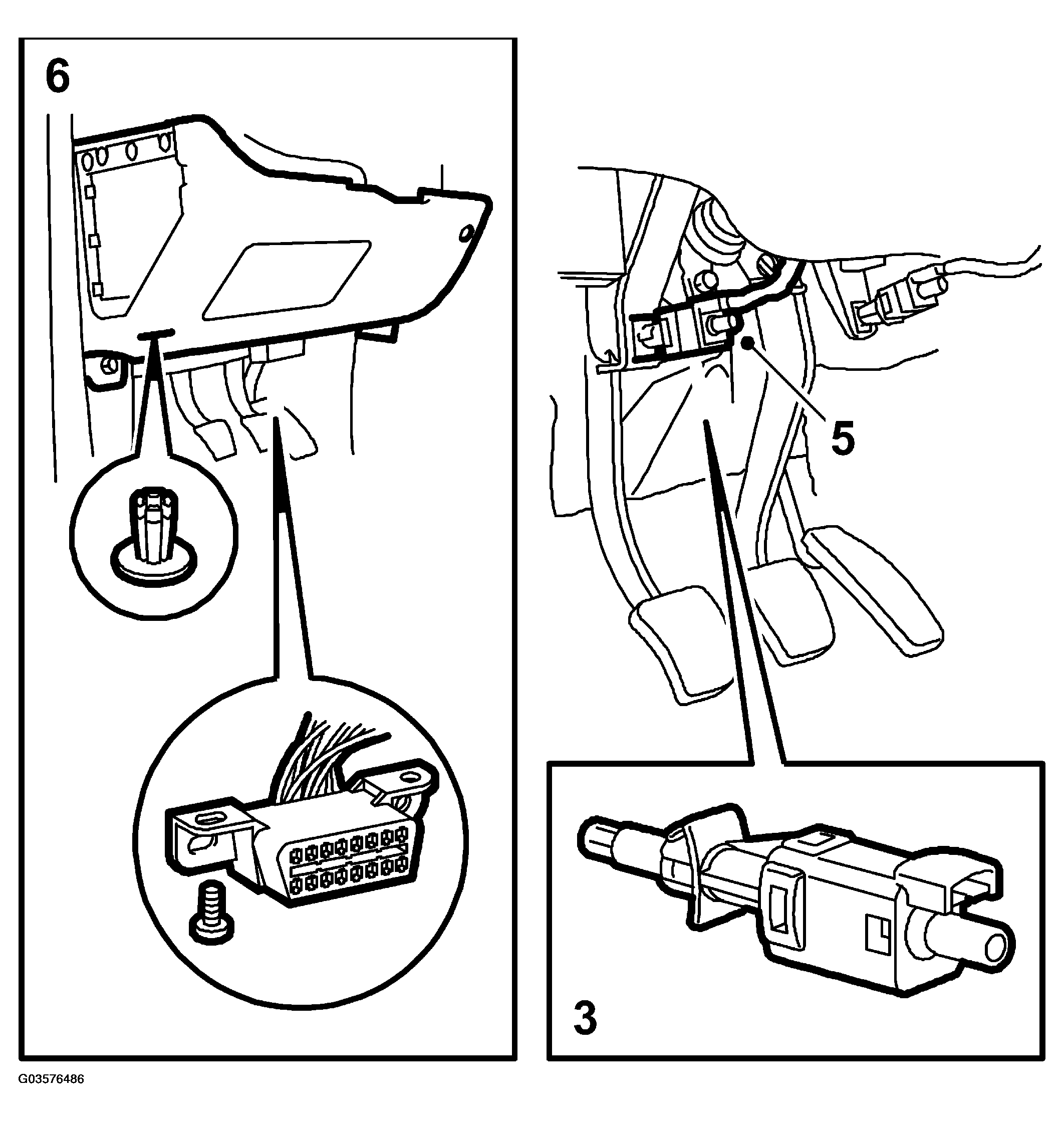

Fig 1: Illustration For Steps 3-6
G03576486Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spray the connector with Kontakt 61 (part no. 30 04 520).
  2. Carefully pull out the switch pushrod to its end position.
  3. Depress the clutch pedal and fit the switch.
  4. Carefully release the pedal.
  5. Plug in the connector.
  6. Fit the lower dashboard panel.
