To fit

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

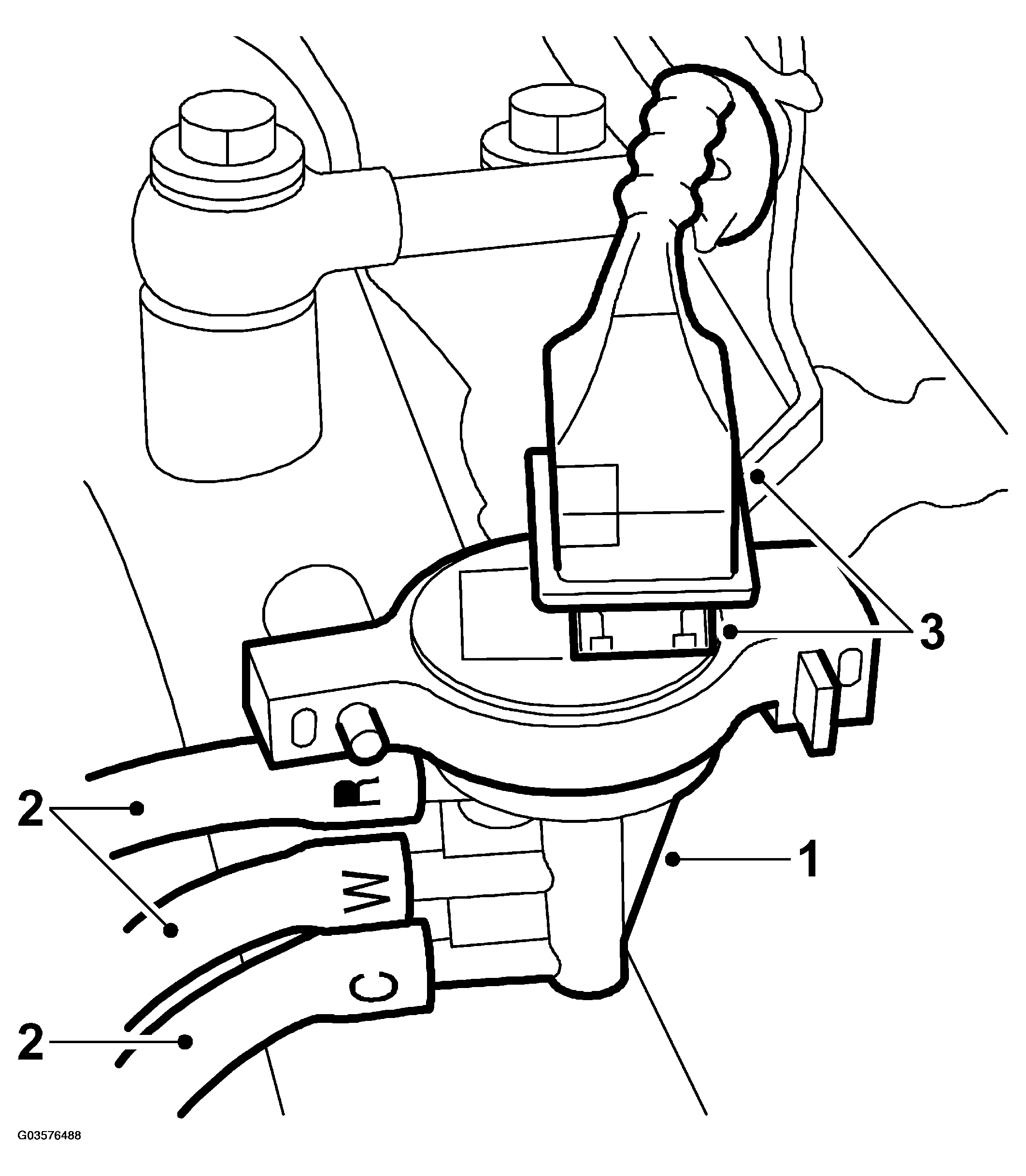

Fig 1: Illustration For Steps 1-3
G03576488Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Attach the valve to the metal bracket and then to the expanding pin.
  2. Connect the hoses to the control valve. Make sure the markings on the hoses correspond with the markings on the control valve.
  3. Spray the connector with Kontakt 61 (part no. 30 04 520) and plug it in.
