Main Components

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

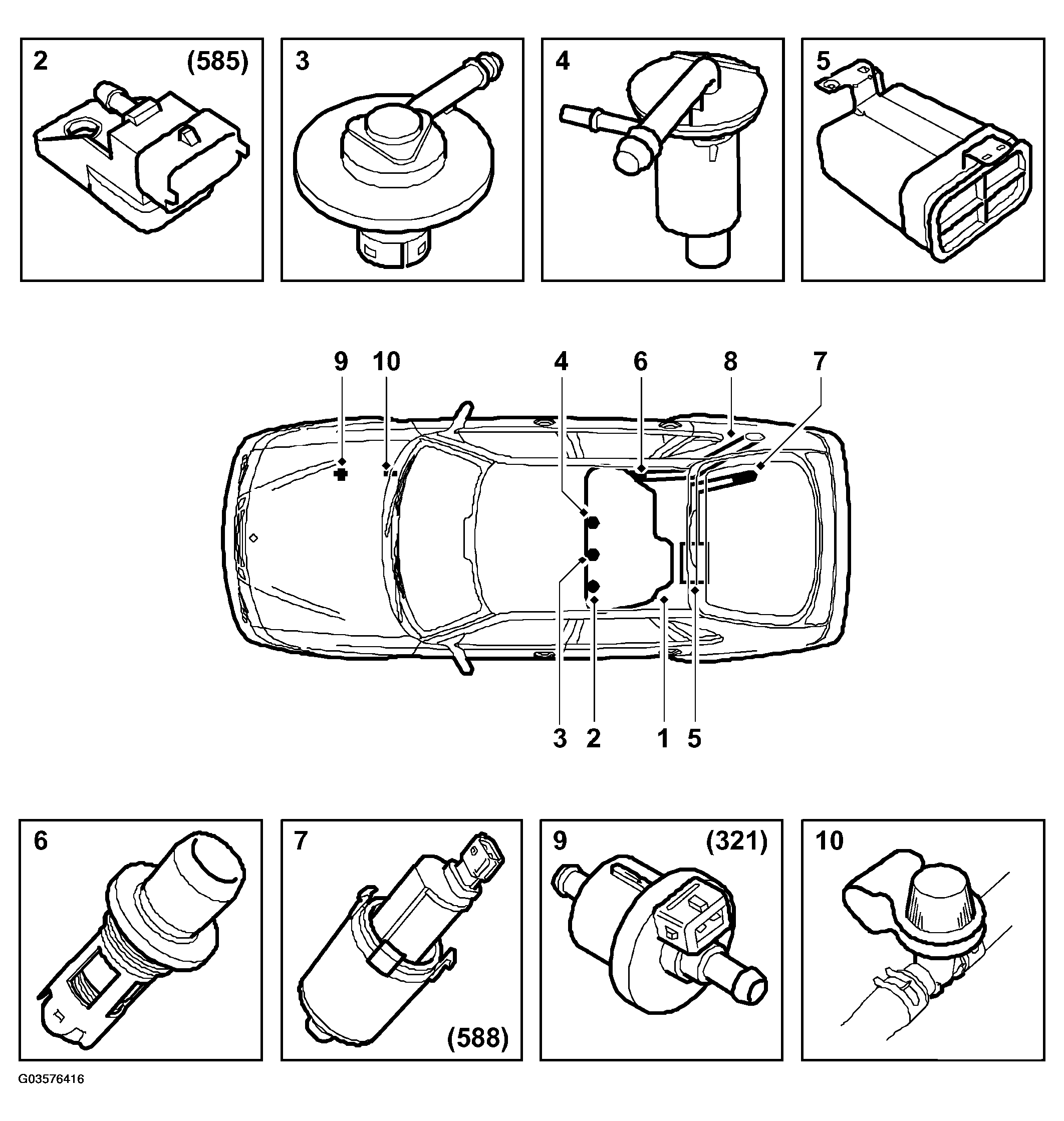

Fig 1: Illustration For Steps 1-10
G03576416Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fuel tank
  2. Pressure sensor, EVAP (585)
  3. Shut-off valve, rollover
  4. Float valve
  5. Evaporative emission canister
  6. Non-return valve, fuel tank
  7. Solenoid valve, EVAP shut-off (588)
  8. Fuel filler pipe
  9. EVAP canister purge valve (321)
  10. Service port
